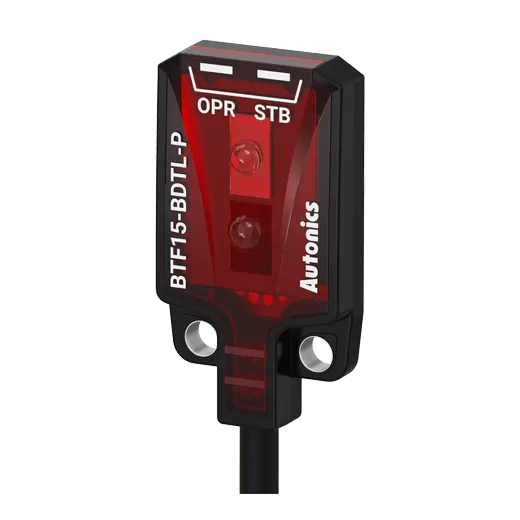

[AUTONICS] BTF Series L 3.7 mm Flat Photoelectric Sensors
Family ID: AUTONICS-BTF-SERIES
Ultra-thin L 3.7 mm flat photoelectric sensors. Through-beam, BGS reflective, and diffuse reflective sensing types. Ideal for narrow-space installation. Cable type connection.
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-BTF1M-TDT-1 | — | AUTONICS | Photoelectric sensor | BTF Series | Through-beam | 1 m | NPN open collector | 12-24 VDC | Cable type | - | L 3.7 mm flat body | ||
| AUTONICS-BTF1M-TDT-2 | — | AUTONICS | Photoelectric sensor | BTF Series | Through-beam | 1 m | PNP open collector | 12-24 VDC | Cable type | - | L 3.7 mm flat body | ||
| AUTONICS-BTF15-BDT-1 | — | AUTONICS | Photoelectric sensor | BTF Series | BGS reflective | up to 15 mm | NPN open collector | 12-24 VDC | Cable type | - | L 3.7 mm flat body | ||
| AUTONICS-BTF15-BDT-2 | — | AUTONICS | Photoelectric sensor | BTF Series | BGS reflective | up to 15 mm | PNP open collector | 12-24 VDC | Cable type | - | L 3.7 mm flat body | ||
| AUTONICS-BTF30-DDT-1 | — | AUTONICS | Photoelectric sensor | BTF Series | Diffuse reflective | 30 mm | NPN open collector | 12-24 VDC | Cable type | - | L 3.7 mm flat body | ||
| AUTONICS-BTF30-DDT-2 | — | AUTONICS | Photoelectric sensor | BTF Series | Diffuse reflective | 30 mm | PNP open collector | 12-24 VDC | Cable type | - | L 3.7 mm flat body |
