Photoelectric
Omron

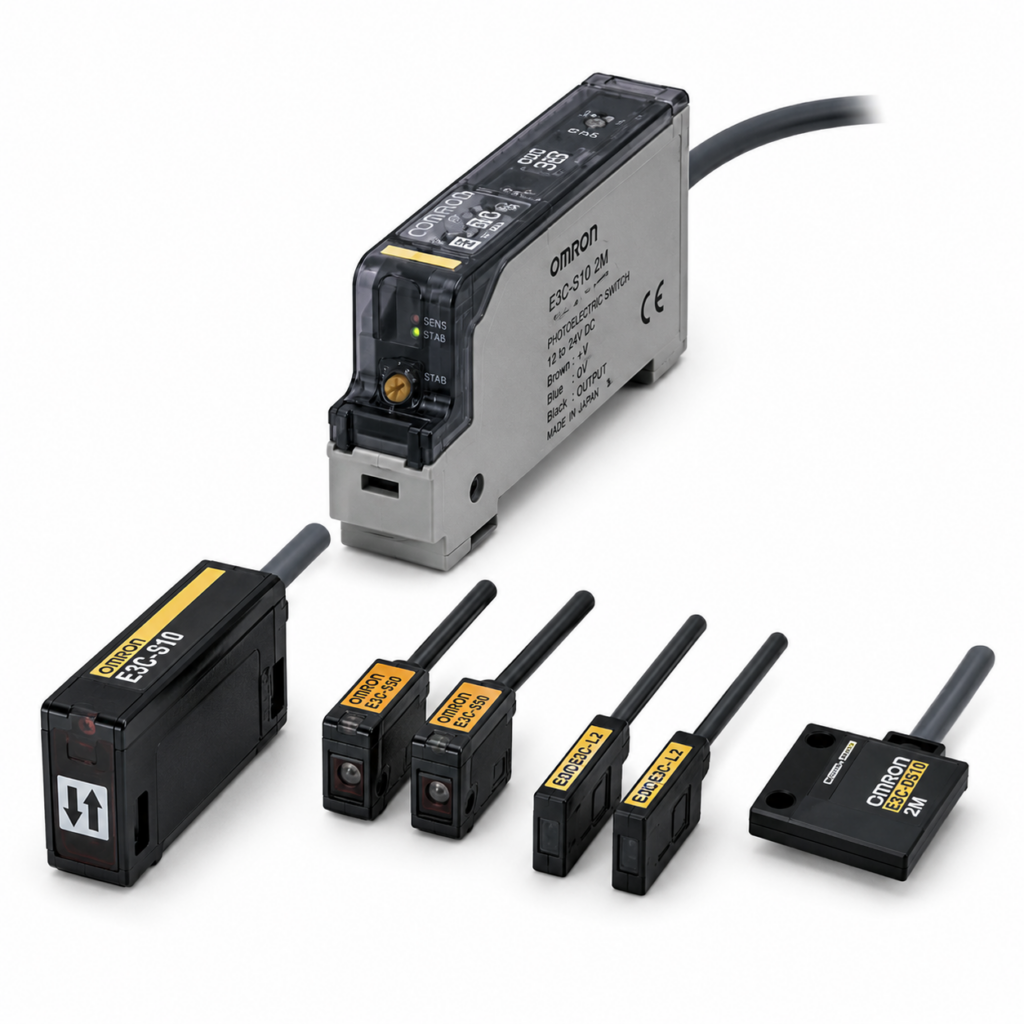

[OMRON] — E3C Diffuse-reflective and Convergent-reflective Compact Photoelectric Sensor Units
Family ID: OMRON-E3C-DIFFUSE
OMRON E3C Series compact diffuse-reflective and convergent-reflective sensor units. Diffuse-reflective small type: E3C-DS10 (100 mm, infrared). Diffuse-reflective slim type: E3C-DS5W (50 mm, infrared). Diffuse-reflective side-view: E3C-DS10T (100 mm, infrared). Convergent-reflective small type: E3C-LS3R (30±3 mm, red light). Compatible amplifier: E3C-JC4P 2M. Cable length: 2 m. Mounting bracket E39-L42 compatible with E3C-DS10 (sold separately).
4 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| E3C-DS10 2M | Diffuse-reflective small type 100mm, infrared, 2m cable | OMRON | Model: E3C-DS10 2M | Sensing Method: Diffuse-reflective | Form Factor: Small type | Sensing Distance: 100 mm | Light Source: Infrared | Cable Length: 2 m | Compatible Amplifier: E3C-JC4P 2M | Optional Bracket: E39-L42 (sold separately) | ||
| E3C-DS5W 2M | Diffuse-reflective slim type 50mm, infrared, 2m cable | OMRON | Model: E3C-DS5W 2M | Sensing Method: Diffuse-reflective | Form Factor: Slim type | Sensing Distance: 50 mm | Light Source: Infrared | Cable Length: 2 m | Compatible Amplifier: E3C-JC4P 2M | ||
| E3C-DS10T 2M | Diffuse-reflective side-view 100mm, infrared, 2m cable | OMRON | Model: E3C-DS10T 2M | Sensing Method: Diffuse-reflective | Form Factor: Side-view | Sensing Distance: 100 mm | Light Source: Infrared | Cable Length: 2 m | Compatible Amplifier: E3C-JC4P 2M | ||
| E3C-LS3R 2M | Convergent-reflective small type 30±3mm, red light, 2m cable | OMRON | Model: E3C-LS3R 2M | Sensing Method: Convergent-reflective | Form Factor: Small type | Sensing Distance: 30±3 mm | Light Source: Red light | Cable Length: 2 m | Compatible Amplifier: E3C-JC4P 2M |
