Photoelectric
Autonics

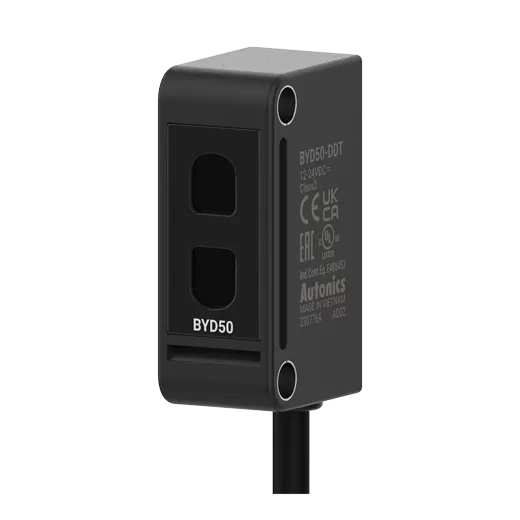

[AUTONICS] BYD Series Photoelectric Sensors with Built-In Timer
Family ID: AUTONICS-BYD-SERIES
Photoelectric sensors with built-in OFF-delay timer. Through-beam and diffuse reflective types. Selectable timer modes for delayed output. Cable type connection.
5 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-BYD3M-TDT-1 | — | AUTONICS | Photoelectric sensor | BYD Series | Through-beam | 3 m | NPN open collector | 12-24 VDC | Cable type | - | built-in timer | ||
| AUTONICS-BYD3M-TDT-2 | — | AUTONICS | Photoelectric sensor | BYD Series | Through-beam | 3 m | PNP open collector | 12-24 VDC | Cable type | - | built-in timer | ||
| AUTONICS-BYD30-DDT-U | — | AUTONICS | Photoelectric sensor | BYD Series | Diffuse reflective | 30 mm | NPN open collector | 12-24 VDC | Cable type | - | built-in timer | ||
| AUTONICS-BYD50-DDT-U | — | AUTONICS | Photoelectric sensor | BYD Series | Diffuse reflective | 50 mm | NPN open collector | 12-24 VDC | Cable type | - | built-in timer | ||
| AUTONICS-BYD100-DDT | — | AUTONICS | Photoelectric sensor | BYD Series | Diffuse reflective | 100 mm | NPN open collector | 12-24 VDC | Cable type | - | built-in timer |
