![[AUTONICS] BTS Series W 7.2 mm Photoelectric Sensors](https://img.prosourcemro.com/2026/04/001-1302.png)
Photoelectric
Autonics

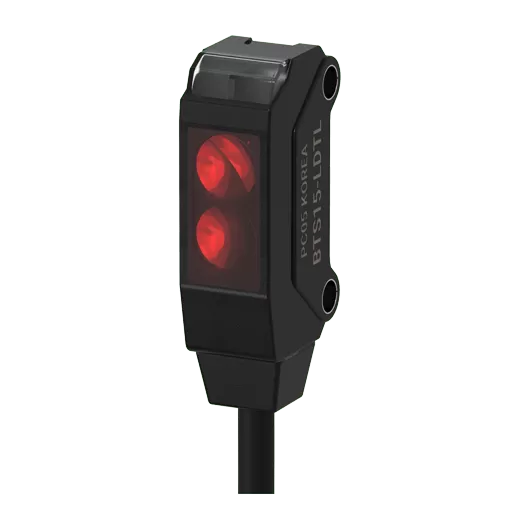

[AUTONICS] BTS Series W 7.2 mm Photoelectric Sensors
Family ID: AUTONICS-BTS-SERIES
Ultra-compact W 7.2 mm photoelectric sensors with through-beam, retroreflective, and convergent reflective sensing types. Maximum sensing distance 1 m. IP67 rated. Operation/stability LED indicators. Stainless steel mounting brackets. Cable type connection (no connector variant).
8 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-BTS1M-TDT-1 | — | AUTONICS | Photoelectric sensor | BTS Series | Through-beam | 1 m | NPN open collector | 12-24 VDC | Cable type | IP67 | W 7.2 mm body | ||
| AUTONICS-BTS1M-TDT-2 | — | AUTONICS | Photoelectric sensor | BTS Series | Through-beam | 1 m | PNP open collector | 12-24 VDC | Cable type | IP67 | W 7.2 mm body | ||
| AUTONICS-BTS200-MDT-1 | — | AUTONICS | Photoelectric sensor | BTS Series | Retroreflective | 10-200 mm | NPN open collector | 12-24 VDC | Cable type | IP67 | W 7.2 mm body | ||
| AUTONICS-BTS200-MDT-2 | — | AUTONICS | Photoelectric sensor | BTS Series | Retroreflective | 10-200 mm | PNP open collector | 12-24 VDC | Cable type | IP67 | W 7.2 mm body | ||
| AUTONICS-BTS15-LDT-1 | — | AUTONICS | Photoelectric sensor | BTS Series | Convergent reflective | 5-15 mm | NPN open collector | 12-24 VDC | Cable type | IP67 | W 7.2 mm body | ||
| AUTONICS-BTS15-LDT-2 | — | AUTONICS | Photoelectric sensor | BTS Series | Convergent reflective | 5-15 mm | PNP open collector | 12-24 VDC | Cable type | IP67 | W 7.2 mm body | ||
| AUTONICS-BTS30-LDT-1 | — | AUTONICS | Photoelectric sensor | BTS Series | Convergent reflective | 5-30 mm | NPN open collector | 12-24 VDC | Cable type | IP67 | W 7.2 mm body | ||
| AUTONICS-BTS30-LDT-2 | — | AUTONICS | Photoelectric sensor | BTS Series | Convergent reflective | 5-30 mm | PNP open collector | 12-24 VDC | Cable type | IP67 | W 7.2 mm body |
