![[AUTONICS] CX Series LCD Counters / Timers](https://img.prosourcemro.com/2026/04/001-1369.png)
Counter
Autonics

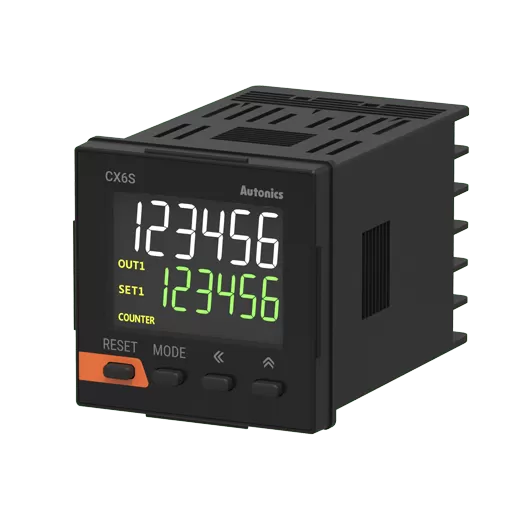

[AUTONICS] CX Series LCD Counters / Timers
Family ID: AUTONICS-CX-SERIES
LCD display counters/timers with selectable counter or timer mode. High visibility LCD. Multiple sizes and preset stages. Programmable counting modes (UP/DOWN/UP-DOWN). Various input modes.
20 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-CX6-4R | — | AUTONICS | Counter/timer | CX Series | LCD counter/timer W 48 x H 96 mm | counter+timer dual function | Relay | 100-240 VAC | Screw terminal | IP50 | counter/timer 4-stage preset | ||
| AUTONICS-CX6-4T | — | AUTONICS | Counter/timer | CX Series | LCD counter/timer W 48 x H 96 mm | counter+timer dual function | Transistor NPN | 100-240 VAC | Screw terminal | IP50 | counter/timer 4-stage preset | ||
| AUTONICS-CX6-6R | — | AUTONICS | Counter/timer | CX Series | LCD counter/timer W 48 x H 96 mm | counter+timer dual function | Relay | 100-240 VAC | Screw terminal | IP50 | counter/timer 6-stage preset | ||
| AUTONICS-CX6-6T | — | AUTONICS | Counter/timer | CX Series | LCD counter/timer W 48 x H 96 mm | counter+timer dual function | Transistor NPN | 100-240 VAC | Screw terminal | IP50 | counter/timer 6-stage preset | ||
| AUTONICS-CXM-4R | — | AUTONICS | Counter/timer | CX Series | LCD counter/timer W 48 x H 48 mm | counter+timer dual function | Relay | 100-240 VAC | Screw terminal | IP50 | counter/timer 4-stage preset | ||
| AUTONICS-CXM-4T | — | AUTONICS | Counter/timer | CX Series | LCD counter/timer W 48 x H 48 mm | counter+timer dual function | Transistor NPN | 100-240 VAC | Screw terminal | IP50 | counter/timer 4-stage preset | ||
| AUTONICS-CXM-6R | — | AUTONICS | Counter/timer | CX Series | LCD counter/timer W 48 x H 48 mm | counter+timer dual function | Relay | 100-240 VAC | Screw terminal | IP50 | counter/timer 6-stage preset | ||
| AUTONICS-CXM-6T | — | AUTONICS | Counter/timer | CX Series | LCD counter/timer W 48 x H 48 mm | counter+timer dual function | Transistor NPN | 100-240 VAC | Screw terminal | IP50 | counter/timer 6-stage preset | ||
| AUTONICS-CXS-4R | — | AUTONICS | Counter/timer | CX Series | LCD counter/timer W 48 x H 96 mm | counter+timer dual function | Relay | 100-240 VAC | Screw terminal | IP50 | counter/timer 4-stage preset | ||
| AUTONICS-CXS-4T | — | AUTONICS | Counter/timer | CX Series | LCD counter/timer W 48 x H 96 mm | counter+timer dual function | Transistor NPN | 100-240 VAC | Screw terminal | IP50 | counter/timer 4-stage preset | ||
| AUTONICS-CXS-6R | — | AUTONICS | Counter/timer | CX Series | LCD counter/timer W 48 x H 96 mm | counter+timer dual function | Relay | 100-240 VAC | Screw terminal | IP50 | counter/timer 6-stage preset | ||
| AUTONICS-CXS-6T | — | AUTONICS | Counter/timer | CX Series | LCD counter/timer W 48 x H 96 mm | counter+timer dual function | Transistor NPN | 100-240 VAC | Screw terminal | IP50 | counter/timer 6-stage preset | ||
| AUTONICS-CXY-4R | — | AUTONICS | Counter/timer | CX Series | LCD counter/timer W 72 x H 36 mm | counter+timer dual function | Relay | 100-240 VAC | Screw terminal | IP50 | counter/timer 4-stage preset | ||
| AUTONICS-CXY-4T | — | AUTONICS | Counter/timer | CX Series | LCD counter/timer W 72 x H 36 mm | counter+timer dual function | Transistor NPN | 100-240 VAC | Screw terminal | IP50 | counter/timer 4-stage preset | ||
| AUTONICS-CXY-6R | — | AUTONICS | Counter/timer | CX Series | LCD counter/timer W 72 x H 36 mm | counter+timer dual function | Relay | 100-240 VAC | Screw terminal | IP50 | counter/timer 6-stage preset | ||
| AUTONICS-CXY-6T | — | AUTONICS | Counter/timer | CX Series | LCD counter/timer W 72 x H 36 mm | counter+timer dual function | Transistor NPN | 100-240 VAC | Screw terminal | IP50 | counter/timer 6-stage preset | ||
| AUTONICS-CXW-4R | — | AUTONICS | Counter/timer | CX Series | LCD counter/timer W 96 x H 48 mm | counter+timer dual function | Relay | 100-240 VAC | Screw terminal | IP50 | counter/timer 4-stage preset | ||
| AUTONICS-CXW-4T | — | AUTONICS | Counter/timer | CX Series | LCD counter/timer W 96 x H 48 mm | counter+timer dual function | Transistor NPN | 100-240 VAC | Screw terminal | IP50 | counter/timer 4-stage preset | ||
| AUTONICS-CXW-6R | — | AUTONICS | Counter/timer | CX Series | LCD counter/timer W 96 x H 48 mm | counter+timer dual function | Relay | 100-240 VAC | Screw terminal | IP50 | counter/timer 6-stage preset | ||
| AUTONICS-CXW-6T | — | AUTONICS | Counter/timer | CX Series | LCD counter/timer W 96 x H 48 mm | counter+timer dual function | Transistor NPN | 100-240 VAC | Screw terminal | IP50 | counter/timer 6-stage preset |
