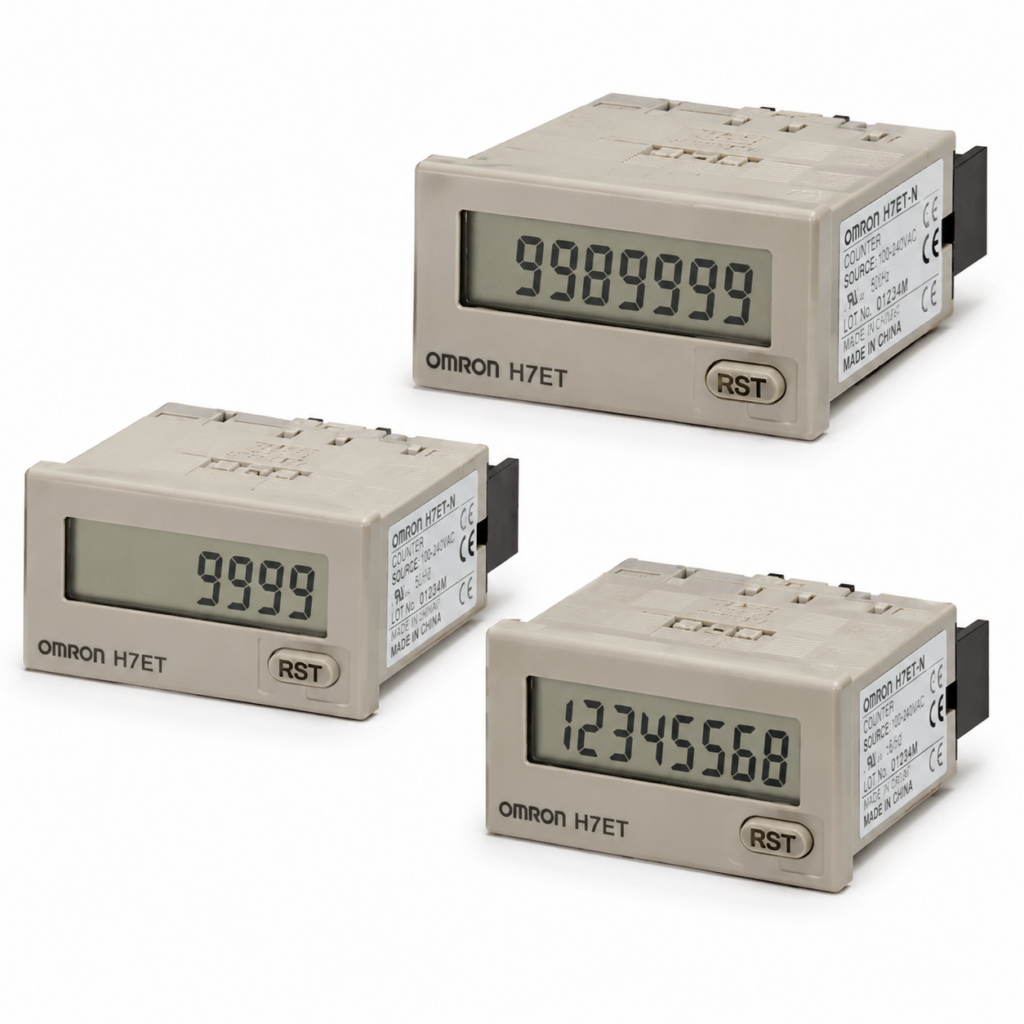

[OMRON] — H7E[]-N Self-powered Totalizer (Total Counter / Time Counter / Tachometer, LCD, Panel Mount)
Counter Omron

[OMRON] — H7E[]-N Self-powered Totalizer (Total Counter / Time Counter / Tachometer, LCD, Panel Mount)

Family ID: OMRON-H7EN-PANEL

Compact Economical Totalizer with High Visibility. Available with Backlit LCD Display. H7EC-N: Total counter (30Hz/1kHz). H7ET-N: Time counter (up to 9999h). H7ER-N: Tachometer (up to 10000 min-1). Light-gray and Black body. PNP/NPN DC, AC/DC multi-voltage, or no-voltage input.

34 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
H7EC-NV-H Total Counter, PNP/NPN DC (4.5~30VDC), 7-seg LCD with backlight, Light gray OMRON Type: Total Counter | Input: PNP/NPN DC (4.5~30VDC) | Display: 7-seg LCD with backlight | Body Color: Light gray | Self-powered (lithium battery) | Speed: 30Hz/1kHz switchable
H7EC-NV-BH Total Counter, PNP/NPN DC (4.5~30VDC), 7-seg LCD with backlight, Black OMRON Type: Total Counter | Input: PNP/NPN DC (4.5~30VDC) | Display: 7-seg LCD with backlight | Body Color: Black | Self-powered (lithium battery) | Speed: 30Hz/1kHz switchable
H7EC-NV Total Counter, PNP/NPN DC (4.5~30VDC), 7-seg LCD, Light gray OMRON Type: Total Counter | Input: PNP/NPN DC (4.5~30VDC) | Display: 7-seg LCD | Body Color: Light gray | Self-powered (lithium battery) | Speed: 30Hz/1kHz switchable
H7EC-NV-B Total Counter, PNP/NPN DC (4.5~30VDC), 7-seg LCD, Black OMRON Type: Total Counter | Input: PNP/NPN DC (4.5~30VDC) | Display: 7-seg LCD | Body Color: Black | Self-powered (lithium battery) | Speed: 30Hz/1kHz switchable
H7EC-NFV Total Counter, AC/DC multi-voltage (24~240VAC/VDC), 7-seg LCD, Light gray OMRON Type: Total Counter | Input: AC/DC multi-voltage (24~240VAC/VDC) | Display: 7-seg LCD | Body Color: Light gray | Self-powered (lithium battery) | Speed: 20Hz max
H7EC-NFV-B Total Counter, AC/DC multi-voltage (24~240VAC/VDC), 7-seg LCD, Black OMRON Type: Total Counter | Input: AC/DC multi-voltage (24~240VAC/VDC) | Display: 7-seg LCD | Body Color: Black | Self-powered (lithium battery) | Speed: 20Hz max
H7EC-N Total Counter, No-voltage input, 7-seg LCD, Light gray OMRON Type: Total Counter | Input: No-voltage input | Display: 7-seg LCD | Body Color: Light gray | Self-powered (lithium battery) | Speed: 30Hz/1kHz switchable
H7EC-N-B Total Counter, No-voltage input, 7-seg LCD, Black OMRON Type: Total Counter | Input: No-voltage input | Display: 7-seg LCD | Body Color: Black | Self-powered (lithium battery) | Speed: 30Hz/1kHz switchable
H7ET-NV-H Time Counter, PNP/NPN DC (4.5~30VDC), 7-seg LCD with backlight, Light gray OMRON Type: Time Counter | Input: PNP/NPN DC (4.5~30VDC) | Display: 7-seg LCD with backlight | Body Color: Light gray | Self-powered (lithium battery) | Range: 999999.9h / 3999d23.9h switchable
H7ET-NV-BH Time Counter, PNP/NPN DC (4.5~30VDC), 7-seg LCD with backlight, Black OMRON Type: Time Counter | Input: PNP/NPN DC (4.5~30VDC) | Display: 7-seg LCD with backlight | Body Color: Black | Self-powered (lithium battery) | Range: 999999.9h / 3999d23.9h switchable
H7ET-NV1-H Time Counter, PNP/NPN DC (4.5~30VDC), 7-seg LCD with backlight, Light gray OMRON Type: Time Counter | Input: PNP/NPN DC (4.5~30VDC) | Display: 7-seg LCD with backlight | Body Color: Light gray | Self-powered (lithium battery) | Range: 999h59min59s / 9999h59.9min switchable
H7ET-NV1-BH Time Counter, PNP/NPN DC (4.5~30VDC), 7-seg LCD with backlight, Black OMRON Type: Time Counter | Input: PNP/NPN DC (4.5~30VDC) | Display: 7-seg LCD with backlight | Body Color: Black | Self-powered (lithium battery) | Range: 999h59min59s / 9999h59.9min switchable
H7ET-NV Time Counter, PNP/NPN DC (4.5~30VDC), 7-seg LCD, Light gray OMRON Type: Time Counter | Input: PNP/NPN DC (4.5~30VDC) | Display: 7-seg LCD | Body Color: Light gray | Self-powered (lithium battery) | Range: 999999.9h / 3999d23.9h switchable
H7ET-NV-B Time Counter, PNP/NPN DC (4.5~30VDC), 7-seg LCD, Black OMRON Type: Time Counter | Input: PNP/NPN DC (4.5~30VDC) | Display: 7-seg LCD | Body Color: Black | Self-powered (lithium battery) | Range: 999999.9h / 3999d23.9h switchable
H7ET-NV1 Time Counter, PNP/NPN DC (4.5~30VDC), 7-seg LCD, Light gray OMRON Type: Time Counter | Input: PNP/NPN DC (4.5~30VDC) | Display: 7-seg LCD | Body Color: Light gray | Self-powered (lithium battery) | Range: 999h59min59s / 9999h59.9min switchable
H7ET-NV1-B Time Counter, PNP/NPN DC (4.5~30VDC), 7-seg LCD, Black OMRON Type: Time Counter | Input: PNP/NPN DC (4.5~30VDC) | Display: 7-seg LCD | Body Color: Black | Self-powered (lithium battery) | Range: 999h59min59s / 9999h59.9min switchable
H7ET-NFV Time Counter, AC/DC multi-voltage (24~240VAC/VDC), 7-seg LCD, Light gray OMRON Type: Time Counter | Input: AC/DC multi-voltage (24~240VAC/VDC) | Display: 7-seg LCD | Body Color: Light gray | Self-powered (lithium battery) | Range: 999999.9h / 3999d23.9h switchable
H7ET-NFV-B Time Counter, AC/DC multi-voltage (24~240VAC/VDC), 7-seg LCD, Black OMRON Type: Time Counter | Input: AC/DC multi-voltage (24~240VAC/VDC) | Display: 7-seg LCD | Body Color: Black | Self-powered (lithium battery) | Range: 999999.9h / 3999d23.9h switchable
H7ET-NFV1 Time Counter, AC/DC multi-voltage (24~240VAC/VDC), 7-seg LCD, Light gray OMRON Type: Time Counter | Input: AC/DC multi-voltage (24~240VAC/VDC) | Display: 7-seg LCD | Body Color: Light gray | Self-powered (lithium battery) | Range: 999h59min59s / 9999h59.9min switchable
H7ET-NFV1-B Time Counter, AC/DC multi-voltage (24~240VAC/VDC), 7-seg LCD, Black OMRON Type: Time Counter | Input: AC/DC multi-voltage (24~240VAC/VDC) | Display: 7-seg LCD | Body Color: Black | Self-powered (lithium battery) | Range: 999h59min59s / 9999h59.9min switchable
H7ET-N Time Counter, No-voltage input, 7-seg LCD, Light gray OMRON Type: Time Counter | Input: No-voltage input | Display: 7-seg LCD | Body Color: Light gray | Self-powered (lithium battery) | Range: 999999.9h / 3999d23.9h switchable
H7ET-N-B Time Counter, No-voltage input, 7-seg LCD, Black OMRON Type: Time Counter | Input: No-voltage input | Display: 7-seg LCD | Body Color: Black | Self-powered (lithium battery) | Range: 999999.9h / 3999d23.9h switchable
H7ET-N1 Time Counter, No-voltage input, 7-seg LCD, Light gray OMRON Type: Time Counter | Input: No-voltage input | Display: 7-seg LCD | Body Color: Light gray | Self-powered (lithium battery) | Range: 999h59min59s / 9999h59.9min switchable
H7ET-N1-B Time Counter, No-voltage input, 7-seg LCD, Black OMRON Type: Time Counter | Input: No-voltage input | Display: 7-seg LCD | Body Color: Black | Self-powered (lithium battery) | Range: 999h59min59s / 9999h59.9min switchable
H7ER-NV-H Tachometer, PNP/NPN DC (4.5~30VDC), 7-seg LCD with backlight, Light gray OMRON Type: Tachometer | Input: PNP/NPN DC (4.5~30VDC) | Display: 7-seg LCD with backlight | Body Color: Light gray | Self-powered (lithium battery) | Max: 1000 s-1 / 1000 min-1
H7ER-NV-BH Tachometer, PNP/NPN DC (4.5~30VDC), 7-seg LCD with backlight, Black OMRON Type: Tachometer | Input: PNP/NPN DC (4.5~30VDC) | Display: 7-seg LCD with backlight | Body Color: Black | Self-powered (lithium battery) | Max: 1000 s-1 / 1000 min-1
H7ER-NV1-H Tachometer, PNP/NPN DC (4.5~30VDC), 7-seg LCD with backlight, Light gray OMRON Type: Tachometer | Input: PNP/NPN DC (4.5~30VDC) | Display: 7-seg LCD with backlight | Body Color: Light gray | Self-powered (lithium battery) | Max: 1000.0 s-1 / 10000 min-1 switchable
H7ER-NV1-BH Tachometer, PNP/NPN DC (4.5~30VDC), 7-seg LCD with backlight, Black OMRON Type: Tachometer | Input: PNP/NPN DC (4.5~30VDC) | Display: 7-seg LCD with backlight | Body Color: Black | Self-powered (lithium battery) | Max: 1000.0 s-1 / 10000 min-1 switchable
H7ER-NV Tachometer, PNP/NPN DC (4.5~30VDC), 7-seg LCD, Light gray OMRON Type: Tachometer | Input: PNP/NPN DC (4.5~30VDC) | Display: 7-seg LCD | Body Color: Light gray | Self-powered (lithium battery) | Max: 1000 s-1 / 1000 min-1
H7ER-NV-B Tachometer, PNP/NPN DC (4.5~30VDC), 7-seg LCD, Black OMRON Type: Tachometer | Input: PNP/NPN DC (4.5~30VDC) | Display: 7-seg LCD | Body Color: Black | Self-powered (lithium battery) | Max: 1000 s-1 / 1000 min-1
H7ER-NV1 Tachometer, PNP/NPN DC (4.5~30VDC), 7-seg LCD, Light gray OMRON Type: Tachometer | Input: PNP/NPN DC (4.5~30VDC) | Display: 7-seg LCD | Body Color: Light gray | Self-powered (lithium battery) | Max: 1000.0 s-1 / 10000 min-1 switchable
H7ER-NV1-B Tachometer, PNP/NPN DC (4.5~30VDC), 7-seg LCD, Black OMRON Type: Tachometer | Input: PNP/NPN DC (4.5~30VDC) | Display: 7-seg LCD | Body Color: Black | Self-powered (lithium battery) | Max: 1000.0 s-1 / 10000 min-1 switchable
H7ER-N Tachometer, No-voltage input, 7-seg LCD, Light gray OMRON Type: Tachometer | Input: No-voltage input | Display: 7-seg LCD | Body Color: Light gray | Self-powered (lithium battery) | Max: 1000 s-1 / 1000 min-1
H7ER-N-B Tachometer, No-voltage input, 7-seg LCD, Black OMRON Type: Tachometer | Input: No-voltage input | Display: 7-seg LCD | Body Color: Black | Self-powered (lithium battery) | Max: 1000 s-1 / 1000 min-1
