Counter
Omron

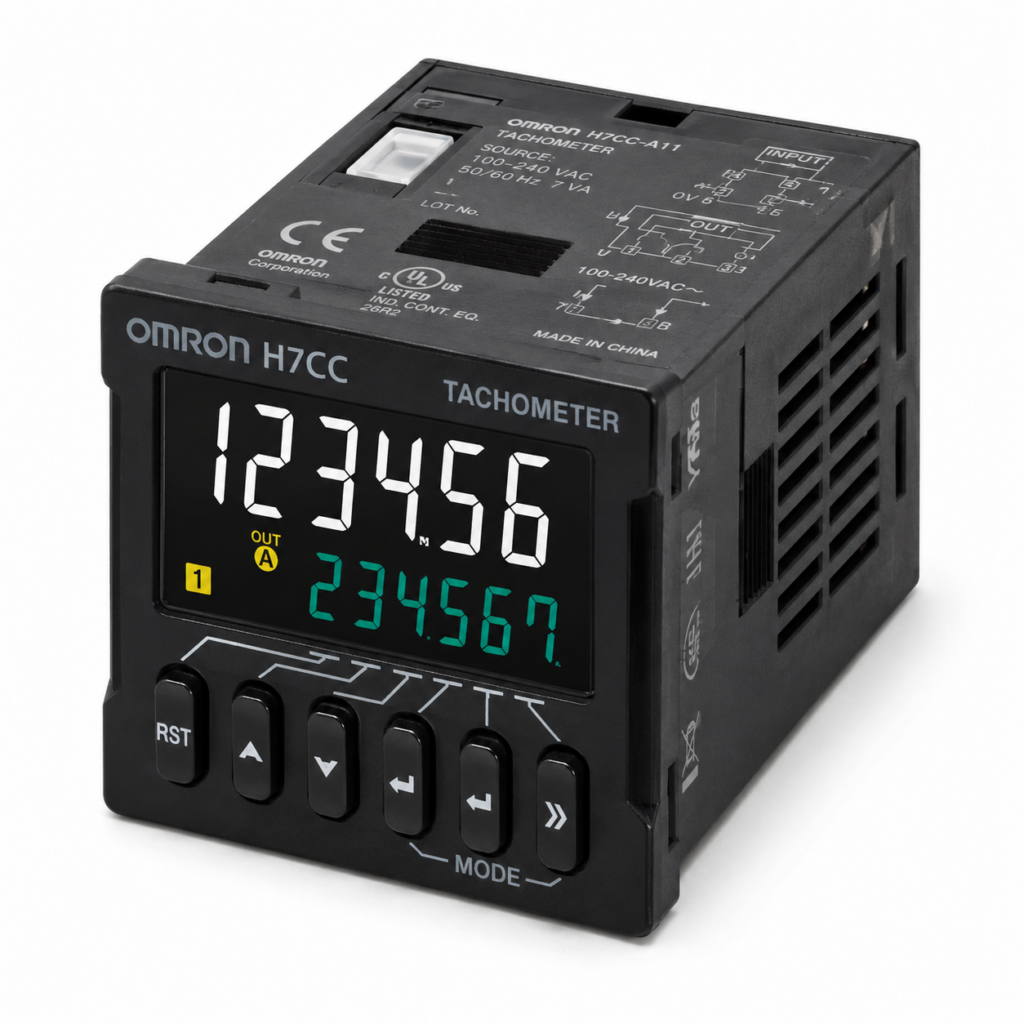

[OMRON] — H7CC-R Digital Tachometer (48x48mm, 11-pin Socket, 1/2 Input+Output, Contact Output)
Family ID: OMRON-H7CC-R
New and improved design for easier use, setting and maintenance. Replacement time notification function. Tachometer with 11-pin socket. 1-stage 1-input/output (SPDT) and 1-stage 2-input/output (SPDT+SPST) variants. Supply: 100~240VAC or 24VAC/12~48VDC.
4 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| H7CC-R11 | Tachometer, 11-pin socket, 1-stage 1I/O, Contact SPDT, 100~240VAC | OMRON | Type: Tachometer | Terminal: 11-pin socket | Stage: 1 (1 input and output) | Display: 6 digits | Output: Contact SPDT | Supply: 100~240VAC | ||
| H7CC-R11D | Tachometer, 11-pin socket, 1-stage 1I/O, Contact SPDT, 24VAC/12~48VDC | OMRON | Type: Tachometer | Terminal: 11-pin socket | Stage: 1 (1 input and output) | Display: 6 digits | Output: Contact SPDT | Supply: 24VAC / 12~48VDC | ||
| H7CC-R11W | Tachometer, 11-pin socket, 1-stage 2I/O, Contact SPDT+SPST, 100~240VAC | OMRON | Type: Tachometer | Terminal: 11-pin socket | Stage: 1 (2 inputs and outputs) | Display: 6 digits | Output: Contact SPDT+SPST | Supply: 100~240VAC | ||
| H7CC-R11WD | Tachometer, 11-pin socket, 1-stage 2I/O, Contact SPDT+SPST, 24VAC/12~48VDC | OMRON | Type: Tachometer | Terminal: 11-pin socket | Stage: 1 (2 inputs and outputs) | Display: 6 digits | Output: Contact SPDT+SPST | Supply: 24VAC / 12~48VDC |
