Counter
Omron

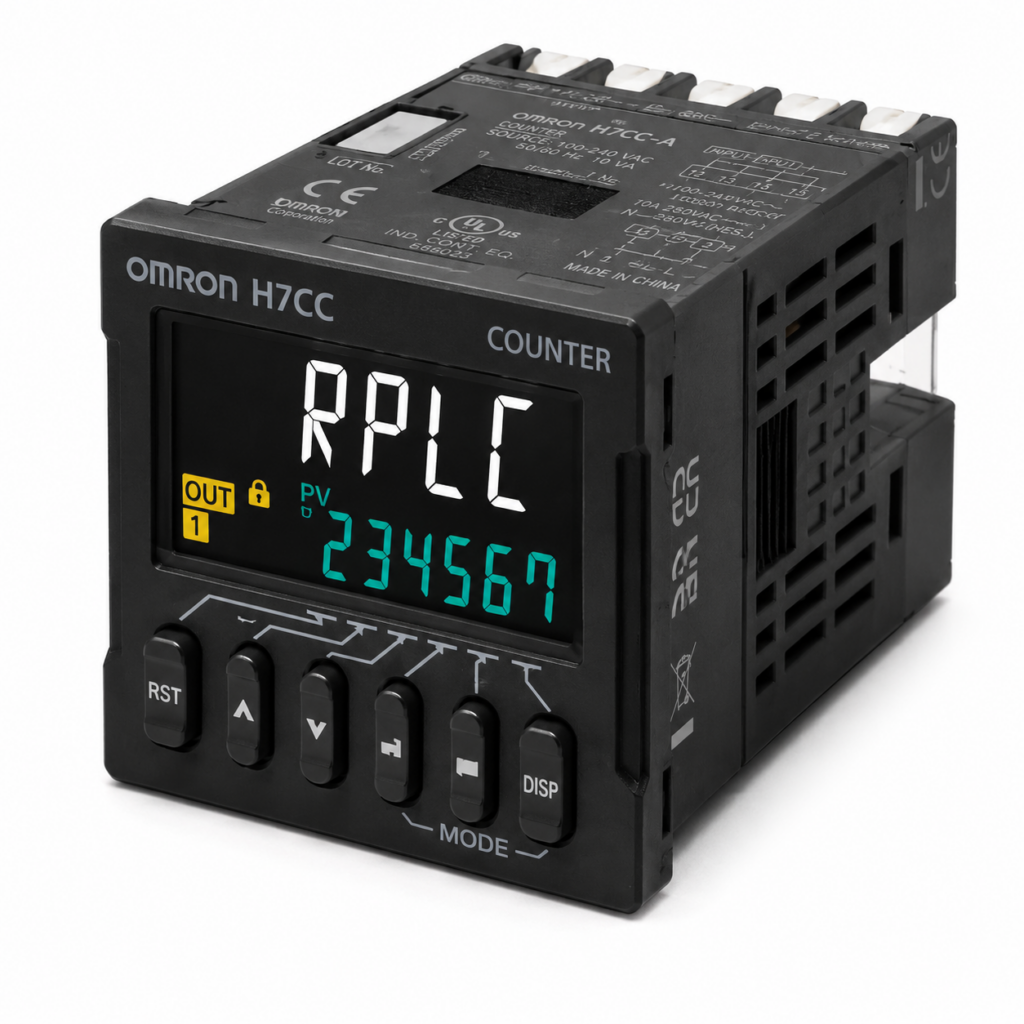

[OMRON] — H7CC-A Digital Counter (48x48mm, Preset/Tachometer, 6-digit, 8-pin/11-pin/Screw, Contact/Transistor)
Family ID: OMRON-H7CC-A
New and improved design for easier use, setting and maintenance. Replacement time notification function. 1-stage preset counter (8/11-pin socket, screw terminal) and 2-stage preset/tachometer/batch/dual/twin counter variants. Contact (SPST/SPDT) and Transistor output. Supply: 100~240VAC or 24VAC/12~48VDC.
16 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| H7CC-A8 | 8-pin socket, 1-stage, Contact SPST, 100~240VAC | OMRON | Type: Preset Counter | Stages: 1 | Terminal: 8-pin socket | Display: 6 digits | Output: Contact SPST | Supply: 100~240VAC | ||
| H7CC-A8D | 8-pin socket, 1-stage, Contact SPST, 24VAC/12~48VDC | OMRON | Type: Preset Counter | Stages: 1 | Terminal: 8-pin socket | Display: 6 digits | Output: Contact SPST | Supply: 24VAC / 12~48VDC | ||
| H7CC-A11 | 11-pin socket, 1-stage, Contact SPDT, 100~240VAC | OMRON | Type: Preset Counter | Stages: 1 | Terminal: 11-pin socket | Display: 6 digits | Output: Contact SPDT | Supply: 100~240VAC | ||
| H7CC-A11S | 11-pin socket, 1-stage, Transistor SPST, 100~240VAC | OMRON | Type: Preset Counter | Stages: 1 | Terminal: 11-pin socket | Display: 6 digits | Output: Transistor SPST | Supply: 100~240VAC | ||
| H7CC-A11D | 11-pin socket, 1-stage, Contact SPDT, 24VAC/12~48VDC | OMRON | Type: Preset Counter | Stages: 1 | Terminal: 11-pin socket | Display: 6 digits | Output: Contact SPDT | Supply: 24VAC / 12~48VDC | ||
| H7CC-A11SD | 11-pin socket, 1-stage, Transistor SPST, 24VAC/12~48VDC | OMRON | Type: Preset Counter | Stages: 1 | Terminal: 11-pin socket | Display: 6 digits | Output: Transistor SPST | Supply: 24VAC / 12~48VDC | ||
| H7CC-A | Screw terminal, 1-stage, Contact SPDT, 100~240VAC | OMRON | Type: Preset Counter | Stages: 1 | Terminal: Screw | Display: 6 digits | Output: Contact SPDT | Supply: 100~240VAC | ||
| H7CC-AS | Screw terminal, 1-stage, Transistor SPST, 100~240VAC | OMRON | Type: Preset Counter | Stages: 1 | Terminal: Screw | Display: 6 digits | Output: Transistor SPST | Supply: 100~240VAC | ||
| H7CC-AD | Screw terminal, 1-stage, Contact SPDT, 24VAC/12~48VDC | OMRON | Type: Preset Counter | Stages: 1 | Terminal: Screw | Display: 6 digits | Output: Contact SPDT | Supply: 24VAC / 12~48VDC | ||
| H7CC-ASD | Screw terminal, 1-stage, Transistor SPST, 24VAC/12~48VDC | OMRON | Type: Preset Counter | Stages: 1 | Terminal: Screw | Display: 6 digits | Output: Transistor SPST | Supply: 24VAC / 12~48VDC | ||
| H7CC-AW | Screw terminal, 2-stage, Contact SPST+SPDT, 100~240VAC | OMRON | Type: Preset Counter / Tachometer | Stages: 2 | Terminal: Screw | Display: 6 digits | Output: Contact SPST+SPDT | Supply: 100~240VAC | Modes: 1/2-stage preset / Total+preset / Batch / Dual / Twin / Tachometer | ||
| H7CC-AWS | Screw terminal, 2-stage, Transistor DPST, 100~240VAC | OMRON | Type: Preset Counter / Tachometer | Stages: 2 | Terminal: Screw | Display: 6 digits | Output: Transistor DPST | Supply: 100~240VAC | Modes: 1/2-stage preset / Total+preset / Batch / Dual / Twin / Tachometer | ||
| H7CC-AWD | Screw terminal, 2-stage, Contact SPST+SPDT, 24VAC/12~48VDC | OMRON | Type: Preset Counter / Tachometer | Stages: 2 | Terminal: Screw | Display: 6 digits | Output: Contact SPST+SPDT | Supply: 24VAC / 12~48VDC | Modes: 1/2-stage preset / Total+preset / Batch / Dual / Twin / Tachometer | ||
| H7CC-AWSD | Screw terminal, 2-stage, Transistor DPST, 24VAC/12~48VDC | OMRON | Type: Preset Counter / Tachometer | Stages: 2 | Terminal: Screw | Display: 6 digits | Output: Transistor DPST | Supply: 24VAC / 12~48VDC | Modes: 1/2-stage preset / Total+preset / Batch / Dual / Twin / Tachometer | ||
| H7CC-AU | Screw terminal, 2-stage, Contact SPDT + Transistor SPST, 100~240VAC | OMRON | Type: Preset Counter / Tachometer | Stages: 2 | Terminal: Screw | Display: 6 digits | Output: Contact SPDT + Transistor SPST | Supply: 100~240VAC | Modes: 1/2-stage preset / Total+preset / Batch / Dual / Twin / Tachometer | ||
| H7CC-AUD | Screw terminal, 2-stage, Contact SPDT + Transistor SPST, 24VAC/12~48VDC | OMRON | Type: Preset Counter / Tachometer | Stages: 2 | Terminal: Screw | Display: 6 digits | Output: Contact SPDT + Transistor SPST | Supply: 24VAC / 12~48VDC | Modes: 1/2-stage preset / Total+preset / Batch / Dual / Twin / Tachometer |
