Rotary Encoder
Autonics

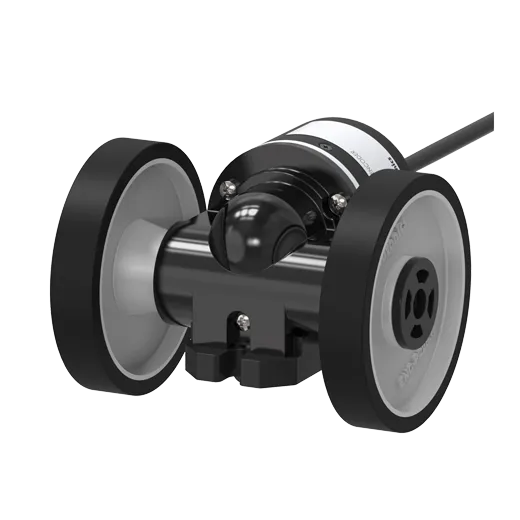

[AUTONICS] ENC Series Wheel Type Incremental Rotary Encoders
Family ID: AUTONICS-ENC-SERIES
Wheel type incremental rotary encoders for length/speed measurement of moving objects. Output proportional to meters or inches. Min. measuring units 1 mm, 1 cm, 1 m, 0.01/0.1/1 yd. IP50.
36 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-ENC-1-1mm-T-5 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 1mm/pulse | Totem-pole output | 5 VDC | Cable type | IP50 | length/speed measurement | ||
| AUTONICS-ENC-1-1mm-T-24 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 1mm/pulse | Totem-pole output | 12-24 VDC | Cable type | IP50 | length/speed measurement | ||
| AUTONICS-ENC-1-1mm-N-5 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 1mm/pulse | NPN open collector | 5 VDC | Cable type | IP50 | length/speed measurement | ||
| AUTONICS-ENC-1-1mm-N-24 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 1mm/pulse | NPN open collector | 12-24 VDC | Cable type | IP50 | length/speed measurement | ||
| AUTONICS-ENC-1-1mm-V-5 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 1mm/pulse | Voltage output | 5 VDC | Cable type | IP50 | length/speed measurement | ||
| AUTONICS-ENC-1-1mm-V-24 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 1mm/pulse | Voltage output | 12-24 VDC | Cable type | IP50 | length/speed measurement | ||
| AUTONICS-ENC-1-1cm-T-5 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 1cm/pulse | Totem-pole output | 5 VDC | Cable type | IP50 | length/speed measurement | ||
| AUTONICS-ENC-1-1cm-T-24 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 1cm/pulse | Totem-pole output | 12-24 VDC | Cable type | IP50 | length/speed measurement | ||
| AUTONICS-ENC-1-1cm-N-5 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 1cm/pulse | NPN open collector | 5 VDC | Cable type | IP50 | length/speed measurement | ||
| AUTONICS-ENC-1-1cm-N-24 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 1cm/pulse | NPN open collector | 12-24 VDC | Cable type | IP50 | length/speed measurement | ||
| AUTONICS-ENC-1-1cm-V-5 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 1cm/pulse | Voltage output | 5 VDC | Cable type | IP50 | length/speed measurement | ||
| AUTONICS-ENC-1-1cm-V-24 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 1cm/pulse | Voltage output | 12-24 VDC | Cable type | IP50 | length/speed measurement | ||
| AUTONICS-ENC-1-1m-T-5 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 1m/pulse | Totem-pole output | 5 VDC | Cable type | IP50 | length/speed measurement | ||
| AUTONICS-ENC-1-1m-T-24 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 1m/pulse | Totem-pole output | 12-24 VDC | Cable type | IP50 | length/speed measurement | ||
| AUTONICS-ENC-1-1m-N-5 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 1m/pulse | NPN open collector | 5 VDC | Cable type | IP50 | length/speed measurement | ||
| AUTONICS-ENC-1-1m-N-24 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 1m/pulse | NPN open collector | 12-24 VDC | Cable type | IP50 | length/speed measurement | ||
| AUTONICS-ENC-1-1m-V-5 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 1m/pulse | Voltage output | 5 VDC | Cable type | IP50 | length/speed measurement | ||
| AUTONICS-ENC-1-1m-V-24 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 1m/pulse | Voltage output | 12-24 VDC | Cable type | IP50 | length/speed measurement | ||
| AUTONICS-ENC-1-0.01yd-T-5 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 0.01yd/pulse | Totem-pole output | 5 VDC | Cable type | IP50 | length/speed measurement | ||
| AUTONICS-ENC-1-0.01yd-T-24 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 0.01yd/pulse | Totem-pole output | 12-24 VDC | Cable type | IP50 | length/speed measurement | ||
| AUTONICS-ENC-1-0.01yd-N-5 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 0.01yd/pulse | NPN open collector | 5 VDC | Cable type | IP50 | length/speed measurement | ||
| AUTONICS-ENC-1-0.01yd-N-24 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 0.01yd/pulse | NPN open collector | 12-24 VDC | Cable type | IP50 | length/speed measurement | ||
| AUTONICS-ENC-1-0.01yd-V-5 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 0.01yd/pulse | Voltage output | 5 VDC | Cable type | IP50 | length/speed measurement | ||
| AUTONICS-ENC-1-0.01yd-V-24 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 0.01yd/pulse | Voltage output | 12-24 VDC | Cable type | IP50 | length/speed measurement | ||
| AUTONICS-ENC-1-0.1yd-T-5 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 0.1yd/pulse | Totem-pole output | 5 VDC | Cable type | IP50 | length/speed measurement | ||
| AUTONICS-ENC-1-0.1yd-T-24 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 0.1yd/pulse | Totem-pole output | 12-24 VDC | Cable type | IP50 | length/speed measurement | ||
| AUTONICS-ENC-1-0.1yd-N-5 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 0.1yd/pulse | NPN open collector | 5 VDC | Cable type | IP50 | length/speed measurement | ||
| AUTONICS-ENC-1-0.1yd-N-24 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 0.1yd/pulse | NPN open collector | 12-24 VDC | Cable type | IP50 | length/speed measurement | ||
| AUTONICS-ENC-1-0.1yd-V-5 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 0.1yd/pulse | Voltage output | 5 VDC | Cable type | IP50 | length/speed measurement | ||
| AUTONICS-ENC-1-0.1yd-V-24 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 0.1yd/pulse | Voltage output | 12-24 VDC | Cable type | IP50 | length/speed measurement | ||
| AUTONICS-ENC-1-1yd-T-5 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 1yd/pulse | Totem-pole output | 5 VDC | Cable type | IP50 | length/speed measurement | ||
| AUTONICS-ENC-1-1yd-T-24 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 1yd/pulse | Totem-pole output | 12-24 VDC | Cable type | IP50 | length/speed measurement | ||
| AUTONICS-ENC-1-1yd-N-5 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 1yd/pulse | NPN open collector | 5 VDC | Cable type | IP50 | length/speed measurement | ||
| AUTONICS-ENC-1-1yd-N-24 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 1yd/pulse | NPN open collector | 12-24 VDC | Cable type | IP50 | length/speed measurement | ||
| AUTONICS-ENC-1-1yd-V-5 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 1yd/pulse | Voltage output | 5 VDC | Cable type | IP50 | length/speed measurement | ||
| AUTONICS-ENC-1-1yd-V-24 | — | AUTONICS | Rotary encoder | ENC Series | Wheel measuring | 1yd/pulse | Voltage output | 12-24 VDC | Cable type | IP50 | length/speed measurement |
