Rotary Encoder
Autonics

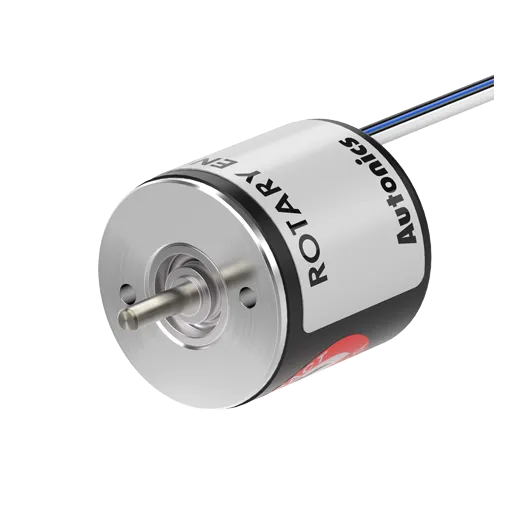

[AUTONICS] E18 Series 18 mm Diameter Incremental Rotary Encoders
Family ID: AUTONICS-E18-SERIES
Ø 18 mm incremental rotary encoders. Compact body for space-constrained applications. Various resolutions, totem pole/NPN/voltage output options. 5 VDC and 12-24 VDC variants.
24 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-E18S-100-T-5 | — | AUTONICS | Rotary encoder | E18 Series | Incremental shaft type | 100 PPR | Totem-pole output | 5 VDC | Cable type | IP50 | Ø 18 mm compact | ||
| AUTONICS-E18S-100-T-24 | — | AUTONICS | Rotary encoder | E18 Series | Incremental shaft type | 100 PPR | Totem-pole output | 12-24 VDC | Cable type | IP50 | Ø 18 mm compact | ||
| AUTONICS-E18S-100-N-5 | — | AUTONICS | Rotary encoder | E18 Series | Incremental shaft type | 100 PPR | NPN open collector | 5 VDC | Cable type | IP50 | Ø 18 mm compact | ||
| AUTONICS-E18S-100-N-24 | — | AUTONICS | Rotary encoder | E18 Series | Incremental shaft type | 100 PPR | NPN open collector | 12-24 VDC | Cable type | IP50 | Ø 18 mm compact | ||
| AUTONICS-E18S-100-V-5 | — | AUTONICS | Rotary encoder | E18 Series | Incremental shaft type | 100 PPR | Voltage output | 5 VDC | Cable type | IP50 | Ø 18 mm compact | ||
| AUTONICS-E18S-100-V-24 | — | AUTONICS | Rotary encoder | E18 Series | Incremental shaft type | 100 PPR | Voltage output | 12-24 VDC | Cable type | IP50 | Ø 18 mm compact | ||
| AUTONICS-E18S-100-L-5 | — | AUTONICS | Rotary encoder | E18 Series | Incremental shaft type | 100 PPR | Line driver output | 5 VDC | Cable type | IP50 | Ø 18 mm compact | ||
| AUTONICS-E18S-100-L-24 | — | AUTONICS | Rotary encoder | E18 Series | Incremental shaft type | 100 PPR | Line driver output | 12-24 VDC | Cable type | IP50 | Ø 18 mm compact | ||
| AUTONICS-E18S-500-T-5 | — | AUTONICS | Rotary encoder | E18 Series | Incremental shaft type | 500 PPR | Totem-pole output | 5 VDC | Cable type | IP50 | Ø 18 mm compact | ||
| AUTONICS-E18S-500-T-24 | — | AUTONICS | Rotary encoder | E18 Series | Incremental shaft type | 500 PPR | Totem-pole output | 12-24 VDC | Cable type | IP50 | Ø 18 mm compact | ||
| AUTONICS-E18S-500-N-5 | — | AUTONICS | Rotary encoder | E18 Series | Incremental shaft type | 500 PPR | NPN open collector | 5 VDC | Cable type | IP50 | Ø 18 mm compact | ||
| AUTONICS-E18S-500-N-24 | — | AUTONICS | Rotary encoder | E18 Series | Incremental shaft type | 500 PPR | NPN open collector | 12-24 VDC | Cable type | IP50 | Ø 18 mm compact | ||
| AUTONICS-E18S-500-V-5 | — | AUTONICS | Rotary encoder | E18 Series | Incremental shaft type | 500 PPR | Voltage output | 5 VDC | Cable type | IP50 | Ø 18 mm compact | ||
| AUTONICS-E18S-500-V-24 | — | AUTONICS | Rotary encoder | E18 Series | Incremental shaft type | 500 PPR | Voltage output | 12-24 VDC | Cable type | IP50 | Ø 18 mm compact | ||
| AUTONICS-E18S-500-L-5 | — | AUTONICS | Rotary encoder | E18 Series | Incremental shaft type | 500 PPR | Line driver output | 5 VDC | Cable type | IP50 | Ø 18 mm compact | ||
| AUTONICS-E18S-500-L-24 | — | AUTONICS | Rotary encoder | E18 Series | Incremental shaft type | 500 PPR | Line driver output | 12-24 VDC | Cable type | IP50 | Ø 18 mm compact | ||
| AUTONICS-E18S-1000-T-5 | — | AUTONICS | Rotary encoder | E18 Series | Incremental shaft type | 1000 PPR | Totem-pole output | 5 VDC | Cable type | IP50 | Ø 18 mm compact | ||
| AUTONICS-E18S-1000-T-24 | — | AUTONICS | Rotary encoder | E18 Series | Incremental shaft type | 1000 PPR | Totem-pole output | 12-24 VDC | Cable type | IP50 | Ø 18 mm compact | ||
| AUTONICS-E18S-1000-N-5 | — | AUTONICS | Rotary encoder | E18 Series | Incremental shaft type | 1000 PPR | NPN open collector | 5 VDC | Cable type | IP50 | Ø 18 mm compact | ||
| AUTONICS-E18S-1000-N-24 | — | AUTONICS | Rotary encoder | E18 Series | Incremental shaft type | 1000 PPR | NPN open collector | 12-24 VDC | Cable type | IP50 | Ø 18 mm compact | ||
| AUTONICS-E18S-1000-V-5 | — | AUTONICS | Rotary encoder | E18 Series | Incremental shaft type | 1000 PPR | Voltage output | 5 VDC | Cable type | IP50 | Ø 18 mm compact | ||
| AUTONICS-E18S-1000-V-24 | — | AUTONICS | Rotary encoder | E18 Series | Incremental shaft type | 1000 PPR | Voltage output | 12-24 VDC | Cable type | IP50 | Ø 18 mm compact | ||
| AUTONICS-E18S-1000-L-5 | — | AUTONICS | Rotary encoder | E18 Series | Incremental shaft type | 1000 PPR | Line driver output | 5 VDC | Cable type | IP50 | Ø 18 mm compact | ||
| AUTONICS-E18S-1000-L-24 | — | AUTONICS | Rotary encoder | E18 Series | Incremental shaft type | 1000 PPR | Line driver output | 12-24 VDC | Cable type | IP50 | Ø 18 mm compact |
