![[AUTONICS] EPM50 Series 50 mm Diameter Absolute Multi-Turn Rotary Encoders](https://img.prosourcemro.com/2026/04/001-1237.png)
Rotary Encoder
Autonics

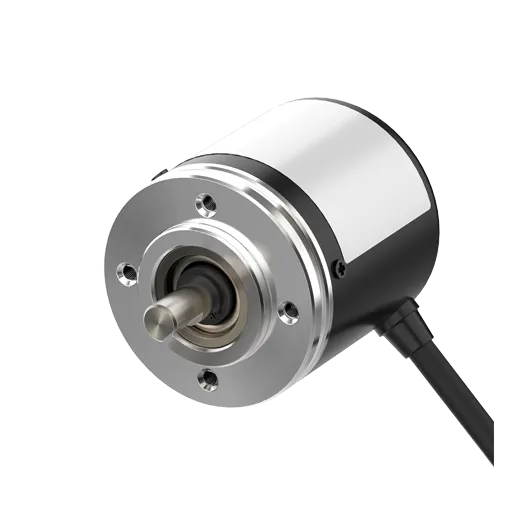

[AUTONICS] EPM50 Series 50 mm Diameter Absolute Multi-Turn Rotary Encoders
Family ID: AUTONICS-EPM50-SERIES
Ø 50 mm absolute multi-turn optical rotary encoders. Multi-turn count without battery. SSI interface. For precision long-stroke positioning.
8 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-EPMS50-256-MT-S-24 | — | AUTONICS | Rotary encoder | EPM Series | Absolute multi-turn shaft type | 256 singleturn x 4096 turns | SSI serial | 12-24 VDC | Cable type | IP65 | Ø 50 mm absolute multi-turn | ||
| AUTONICS-EPMS50-256-MT-S-24-C | — | AUTONICS | Rotary encoder | EPM Series | Absolute multi-turn shaft type | 256 singleturn x 4096 turns | SSI serial | 12-24 VDC | M17 connector | IP65 | Ø 50 mm absolute multi-turn | ||
| AUTONICS-EPMS50-1024-MT-S-24 | — | AUTONICS | Rotary encoder | EPM Series | Absolute multi-turn shaft type | 1024 singleturn x 4096 turns | SSI serial | 12-24 VDC | Cable type | IP65 | Ø 50 mm absolute multi-turn | ||
| AUTONICS-EPMS50-1024-MT-S-24-C | — | AUTONICS | Rotary encoder | EPM Series | Absolute multi-turn shaft type | 1024 singleturn x 4096 turns | SSI serial | 12-24 VDC | M17 connector | IP65 | Ø 50 mm absolute multi-turn | ||
| AUTONICS-EPMS50-4096-MT-S-24 | — | AUTONICS | Rotary encoder | EPM Series | Absolute multi-turn shaft type | 4096 singleturn x 4096 turns | SSI serial | 12-24 VDC | Cable type | IP65 | Ø 50 mm absolute multi-turn | ||
| AUTONICS-EPMS50-4096-MT-S-24-C | — | AUTONICS | Rotary encoder | EPM Series | Absolute multi-turn shaft type | 4096 singleturn x 4096 turns | SSI serial | 12-24 VDC | M17 connector | IP65 | Ø 50 mm absolute multi-turn | ||
| AUTONICS-EPMS50-8192-MT-S-24 | — | AUTONICS | Rotary encoder | EPM Series | Absolute multi-turn shaft type | 8192 singleturn x 4096 turns | SSI serial | 12-24 VDC | Cable type | IP65 | Ø 50 mm absolute multi-turn | ||
| AUTONICS-EPMS50-8192-MT-S-24-C | — | AUTONICS | Rotary encoder | EPM Series | Absolute multi-turn shaft type | 8192 singleturn x 4096 turns | SSI serial | 12-24 VDC | M17 connector | IP65 | Ø 50 mm absolute multi-turn |
