Rotary Encoder
Omron

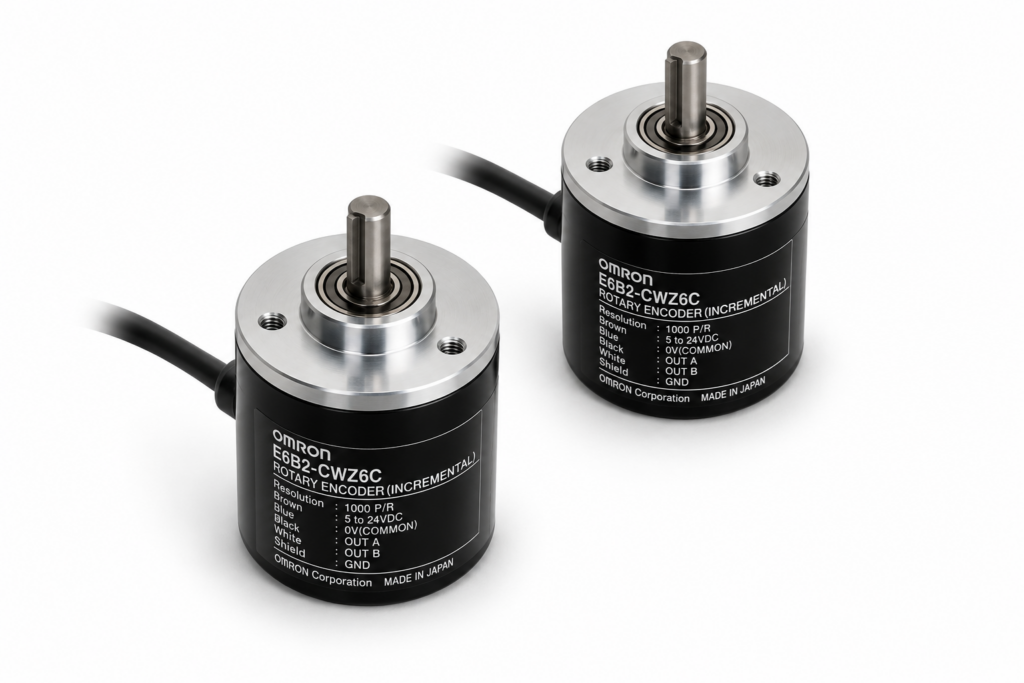

[OMRON] — E6B2-C Incremental Rotary Encoder (NPN Open-collector, 5~24VDC, 10~2000P/R)
Family ID: OMRON-E6B2-NPN
OMRON E6B2-C Series 40mm general-purpose incremental rotary encoder. NPN open-collector output. 5~24 VDC. 10~2000 pulses/rotation (21 resolutions). A/B/Z phases. Cable 0.5m.
21 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| E6B2-CWZ6C 10P/R 0.5M | E6B2-C 10P/R NPN open-collector 0.5m | OMRON | Output Type: NPN open-collector | Power Supply: 5~24 VDC | Resolution: 10P/R | Output Phases: A, B, Z | Cable: 0.5 m | Encoder Type: Incremental | Diameter: 40 mm | ||
| E6B2-CWZ6C 20P/R 0.5M | E6B2-C 20P/R NPN open-collector 0.5m | OMRON | Output Type: NPN open-collector | Power Supply: 5~24 VDC | Resolution: 20P/R | Output Phases: A, B, Z | Cable: 0.5 m | Encoder Type: Incremental | Diameter: 40 mm | ||
| E6B2-CWZ6C 30P/R 0.5M | E6B2-C 30P/R NPN open-collector 0.5m | OMRON | Output Type: NPN open-collector | Power Supply: 5~24 VDC | Resolution: 30P/R | Output Phases: A, B, Z | Cable: 0.5 m | Encoder Type: Incremental | Diameter: 40 mm | ||
| E6B2-CWZ6C 40P/R 0.5M | E6B2-C 40P/R NPN open-collector 0.5m | OMRON | Output Type: NPN open-collector | Power Supply: 5~24 VDC | Resolution: 40P/R | Output Phases: A, B, Z | Cable: 0.5 m | Encoder Type: Incremental | Diameter: 40 mm | ||
| E6B2-CWZ6C 50P/R 0.5M | E6B2-C 50P/R NPN open-collector 0.5m | OMRON | Output Type: NPN open-collector | Power Supply: 5~24 VDC | Resolution: 50P/R | Output Phases: A, B, Z | Cable: 0.5 m | Encoder Type: Incremental | Diameter: 40 mm | ||
| E6B2-CWZ6C 60P/R 0.5M | E6B2-C 60P/R NPN open-collector 0.5m | OMRON | Output Type: NPN open-collector | Power Supply: 5~24 VDC | Resolution: 60P/R | Output Phases: A, B, Z | Cable: 0.5 m | Encoder Type: Incremental | Diameter: 40 mm | ||
| E6B2-CWZ6C 100P/R 0.5M | E6B2-C 100P/R NPN open-collector 0.5m | OMRON | Output Type: NPN open-collector | Power Supply: 5~24 VDC | Resolution: 100P/R | Output Phases: A, B, Z | Cable: 0.5 m | Encoder Type: Incremental | Diameter: 40 mm | ||
| E6B2-CWZ6C 200P/R 0.5M | E6B2-C 200P/R NPN open-collector 0.5m | OMRON | Output Type: NPN open-collector | Power Supply: 5~24 VDC | Resolution: 200P/R | Output Phases: A, B, Z | Cable: 0.5 m | Encoder Type: Incremental | Diameter: 40 mm | ||
| E6B2-CWZ6C 300P/R 0.5M | E6B2-C 300P/R NPN open-collector 0.5m | OMRON | Output Type: NPN open-collector | Power Supply: 5~24 VDC | Resolution: 300P/R | Output Phases: A, B, Z | Cable: 0.5 m | Encoder Type: Incremental | Diameter: 40 mm | ||
| E6B2-CWZ6C 360P/R 0.5M | E6B2-C 360P/R NPN open-collector 0.5m | OMRON | Output Type: NPN open-collector | Power Supply: 5~24 VDC | Resolution: 360P/R | Output Phases: A, B, Z | Cable: 0.5 m | Encoder Type: Incremental | Diameter: 40 mm | ||
| E6B2-CWZ6C 400P/R 0.5M | E6B2-C 400P/R NPN open-collector 0.5m | OMRON | Output Type: NPN open-collector | Power Supply: 5~24 VDC | Resolution: 400P/R | Output Phases: A, B, Z | Cable: 0.5 m | Encoder Type: Incremental | Diameter: 40 mm | ||
| E6B2-CWZ6C 500P/R 0.5M | E6B2-C 500P/R NPN open-collector 0.5m | OMRON | Output Type: NPN open-collector | Power Supply: 5~24 VDC | Resolution: 500P/R | Output Phases: A, B, Z | Cable: 0.5 m | Encoder Type: Incremental | Diameter: 40 mm | ||
| E6B2-CWZ6C 600P/R 0.5M | E6B2-C 600P/R NPN open-collector 0.5m | OMRON | Output Type: NPN open-collector | Power Supply: 5~24 VDC | Resolution: 600P/R | Output Phases: A, B, Z | Cable: 0.5 m | Encoder Type: Incremental | Diameter: 40 mm | ||
| E6B2-CWZ6C 720P/R 0.5M | E6B2-C 720P/R NPN open-collector 0.5m | OMRON | Output Type: NPN open-collector | Power Supply: 5~24 VDC | Resolution: 720P/R | Output Phases: A, B, Z | Cable: 0.5 m | Encoder Type: Incremental | Diameter: 40 mm | ||
| E6B2-CWZ6C 800P/R 0.5M | E6B2-C 800P/R NPN open-collector 0.5m | OMRON | Output Type: NPN open-collector | Power Supply: 5~24 VDC | Resolution: 800P/R | Output Phases: A, B, Z | Cable: 0.5 m | Encoder Type: Incremental | Diameter: 40 mm | ||
| E6B2-CWZ6C 1,000P/R 0.5M | E6B2-C 1,000P/R NPN open-collector 0.5m | OMRON | Output Type: NPN open-collector | Power Supply: 5~24 VDC | Resolution: 1,000P/R | Output Phases: A, B, Z | Cable: 0.5 m | Encoder Type: Incremental | Diameter: 40 mm | ||
| E6B2-CWZ6C 1,024P/R 0.5M | E6B2-C 1,024P/R NPN open-collector 0.5m | OMRON | Output Type: NPN open-collector | Power Supply: 5~24 VDC | Resolution: 1,024P/R | Output Phases: A, B, Z | Cable: 0.5 m | Encoder Type: Incremental | Diameter: 40 mm | ||
| E6B2-CWZ6C 1,200P/R 0.5M | E6B2-C 1,200P/R NPN open-collector 0.5m | OMRON | Output Type: NPN open-collector | Power Supply: 5~24 VDC | Resolution: 1,200P/R | Output Phases: A, B, Z | Cable: 0.5 m | Encoder Type: Incremental | Diameter: 40 mm | ||
| E6B2-CWZ6C 1,500P/R 0.5M | E6B2-C 1,500P/R NPN open-collector 0.5m | OMRON | Output Type: NPN open-collector | Power Supply: 5~24 VDC | Resolution: 1,500P/R | Output Phases: A, B, Z | Cable: 0.5 m | Encoder Type: Incremental | Diameter: 40 mm | ||
| E6B2-CWZ6C 1,800P/R 0.5M | E6B2-C 1,800P/R NPN open-collector 0.5m | OMRON | Output Type: NPN open-collector | Power Supply: 5~24 VDC | Resolution: 1,800P/R | Output Phases: A, B, Z | Cable: 0.5 m | Encoder Type: Incremental | Diameter: 40 mm | ||
| E6B2-CWZ6C 2,000P/R 0.5M | E6B2-C 2,000P/R NPN open-collector 0.5m | OMRON | Output Type: NPN open-collector | Power Supply: 5~24 VDC | Resolution: 2,000P/R | Output Phases: A, B, Z | Cable: 0.5 m | Encoder Type: Incremental | Diameter: 40 mm |
