Pressure Transmitter
Autonics

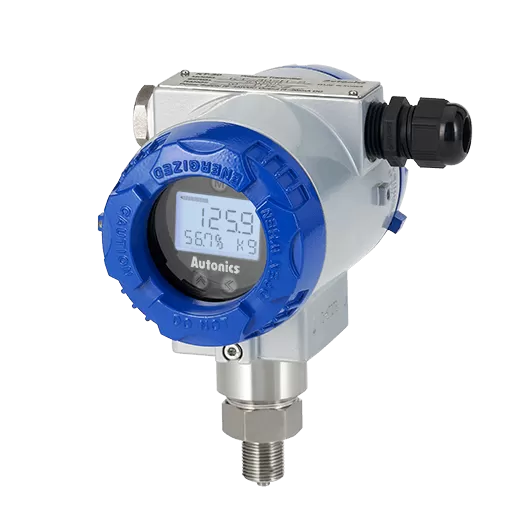

[AUTONICS] KT-302H Series Display Type Pressure Transmitters
Family ID: AUTONICS-KT-302H-SERIES
HART Protocol smart pressure transmitters with backlit display. Display rotation in 330 degree range. Stainless steel SUS316 housing for excellent corrosion resistance. Accuracy ±0.2% F.S. Suitable for gas, liquid, oil (except corrosive environment). 4-20 mA + HART output.
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-KT-302H-100KP | — | AUTONICS | Pressure transmitter | KT-302H Series | HART smart with display | 0-100 kPa | 4-20 mA + HART | 9-45 VDC | 1/2 NPT | IP66 | display 100 kPa | ||
| AUTONICS-KT-302H-1MP | — | AUTONICS | Pressure transmitter | KT-302H Series | HART smart with display | 0-1 MPa | 4-20 mA + HART | 9-45 VDC | 1/2 NPT | IP66 | display 1 MPa | ||
| AUTONICS-KT-302H-5MP | — | AUTONICS | Pressure transmitter | KT-302H Series | HART smart with display | 0-5 MPa | 4-20 mA + HART | 9-45 VDC | 1/2 NPT | IP66 | display 5 MPa | ||
| AUTONICS-KT-302H-10MP | — | AUTONICS | Pressure transmitter | KT-302H Series | HART smart with display | 0-10 MPa | 4-20 mA + HART | 9-45 VDC | 1/2 NPT | IP66 | display 10 MPa | ||
| AUTONICS-KT-302H-20MP | — | AUTONICS | Pressure transmitter | KT-302H Series | HART smart with display | 0-20 MPa | 4-20 mA + HART | 9-45 VDC | 1/2 NPT | IP66 | display 20 MPa | ||
| AUTONICS-KT-302H-50MP | — | AUTONICS | Pressure transmitter | KT-302H Series | HART smart with display | 0-50 MPa | 4-20 mA + HART | 9-45 VDC | 1/2 NPT | IP66 | display 50 MPa |
