![[AUTONICS] TPS30 Series Stainless Steel Pressure Transmitters](https://img.prosourcemro.com/2026/04/001-1319.png)
Pressure Transmitter
Autonics

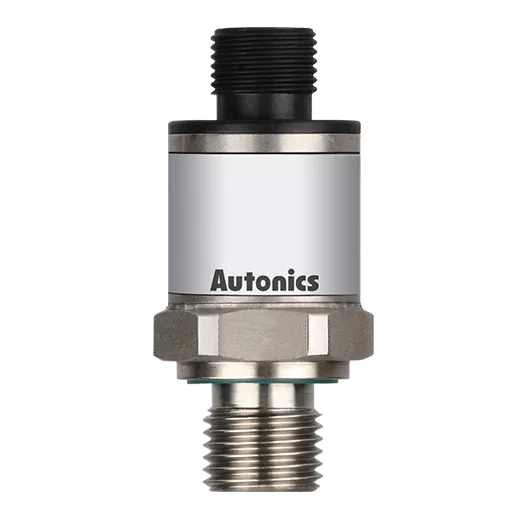

[AUTONICS] TPS30 Series Stainless Steel Pressure Transmitters
Family ID: AUTONICS-TPS30-SERIES
Full stainless steel (SUS316) pressure transmitters for highly corrosive environments. Excellent corrosion resistance. Various pressure ranges from 100 kPa to 50 MPa. 4-20 mA 2-wire output. G1/4 and 1/4 NPT process connections. IP65 rated. For chemical, marine, oil & gas applications.
18 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-TPS30-100KP-G14 | — | AUTONICS | Pressure transmitter | TPS30 Series | Stainless steel non-indicating | 0-100 kPa | 4-20 mA 2-wire | 12-32 VDC | G1/4 thread | IP65 | full SUS316 corrosion-resistant | ||
| AUTONICS-TPS30-100KP-N14 | — | AUTONICS | Pressure transmitter | TPS30 Series | Stainless steel non-indicating | 0-100 kPa | 4-20 mA 2-wire | 12-32 VDC | 1/4 NPT thread | IP65 | full SUS316 corrosion-resistant | ||
| AUTONICS-TPS30-500KP-G14 | — | AUTONICS | Pressure transmitter | TPS30 Series | Stainless steel non-indicating | 0-500 kPa | 4-20 mA 2-wire | 12-32 VDC | G1/4 thread | IP65 | full SUS316 corrosion-resistant | ||
| AUTONICS-TPS30-500KP-N14 | — | AUTONICS | Pressure transmitter | TPS30 Series | Stainless steel non-indicating | 0-500 kPa | 4-20 mA 2-wire | 12-32 VDC | 1/4 NPT thread | IP65 | full SUS316 corrosion-resistant | ||
| AUTONICS-TPS30-1MP-G14 | — | AUTONICS | Pressure transmitter | TPS30 Series | Stainless steel non-indicating | 0-1 MPa | 4-20 mA 2-wire | 12-32 VDC | G1/4 thread | IP65 | full SUS316 corrosion-resistant | ||
| AUTONICS-TPS30-1MP-N14 | — | AUTONICS | Pressure transmitter | TPS30 Series | Stainless steel non-indicating | 0-1 MPa | 4-20 mA 2-wire | 12-32 VDC | 1/4 NPT thread | IP65 | full SUS316 corrosion-resistant | ||
| AUTONICS-TPS30-2MP-G14 | — | AUTONICS | Pressure transmitter | TPS30 Series | Stainless steel non-indicating | 0-2 MPa | 4-20 mA 2-wire | 12-32 VDC | G1/4 thread | IP65 | full SUS316 corrosion-resistant | ||
| AUTONICS-TPS30-2MP-N14 | — | AUTONICS | Pressure transmitter | TPS30 Series | Stainless steel non-indicating | 0-2 MPa | 4-20 mA 2-wire | 12-32 VDC | 1/4 NPT thread | IP65 | full SUS316 corrosion-resistant | ||
| AUTONICS-TPS30-5MP-G14 | — | AUTONICS | Pressure transmitter | TPS30 Series | Stainless steel non-indicating | 0-5 MPa | 4-20 mA 2-wire | 12-32 VDC | G1/4 thread | IP65 | full SUS316 corrosion-resistant | ||
| AUTONICS-TPS30-5MP-N14 | — | AUTONICS | Pressure transmitter | TPS30 Series | Stainless steel non-indicating | 0-5 MPa | 4-20 mA 2-wire | 12-32 VDC | 1/4 NPT thread | IP65 | full SUS316 corrosion-resistant | ||
| AUTONICS-TPS30-10MP-G14 | — | AUTONICS | Pressure transmitter | TPS30 Series | Stainless steel non-indicating | 0-10 MPa | 4-20 mA 2-wire | 12-32 VDC | G1/4 thread | IP65 | full SUS316 corrosion-resistant | ||
| AUTONICS-TPS30-10MP-N14 | — | AUTONICS | Pressure transmitter | TPS30 Series | Stainless steel non-indicating | 0-10 MPa | 4-20 mA 2-wire | 12-32 VDC | 1/4 NPT thread | IP65 | full SUS316 corrosion-resistant | ||
| AUTONICS-TPS30-20MP-G14 | — | AUTONICS | Pressure transmitter | TPS30 Series | Stainless steel non-indicating | 0-20 MPa | 4-20 mA 2-wire | 12-32 VDC | G1/4 thread | IP65 | full SUS316 corrosion-resistant | ||
| AUTONICS-TPS30-20MP-N14 | — | AUTONICS | Pressure transmitter | TPS30 Series | Stainless steel non-indicating | 0-20 MPa | 4-20 mA 2-wire | 12-32 VDC | 1/4 NPT thread | IP65 | full SUS316 corrosion-resistant | ||
| AUTONICS-TPS30-35MP-G14 | — | AUTONICS | Pressure transmitter | TPS30 Series | Stainless steel non-indicating | 0-35 MPa | 4-20 mA 2-wire | 12-32 VDC | G1/4 thread | IP65 | full SUS316 corrosion-resistant | ||
| AUTONICS-TPS30-35MP-N14 | — | AUTONICS | Pressure transmitter | TPS30 Series | Stainless steel non-indicating | 0-35 MPa | 4-20 mA 2-wire | 12-32 VDC | 1/4 NPT thread | IP65 | full SUS316 corrosion-resistant | ||
| AUTONICS-TPS30-50MP-G14 | — | AUTONICS | Pressure transmitter | TPS30 Series | Stainless steel non-indicating | 0-50 MPa | 4-20 mA 2-wire | 12-32 VDC | G1/4 thread | IP65 | full SUS316 corrosion-resistant | ||
| AUTONICS-TPS30-50MP-N14 | — | AUTONICS | Pressure transmitter | TPS30 Series | Stainless steel non-indicating | 0-50 MPa | 4-20 mA 2-wire | 12-32 VDC | 1/4 NPT thread | IP65 | full SUS316 corrosion-resistant |
