Pressure Transmitter
Autonics

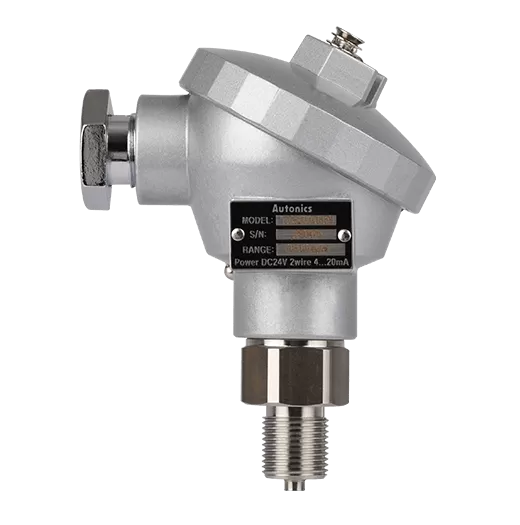

[AUTONICS] TPS20 Series Non-Indicating Pressure Transmitters
Family ID: AUTONICS-TPS20-SERIES
Non-indicating (no display) pressure transmitters. Compact body for general pressure measurement. Various pressure ranges from 100 kPa to 50 MPa. 4-20 mA and 0-10 V output options. G1/4 and 1/4 NPT process connections. IP65 rated.
27 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-TPS20-100KP-G14 | — | AUTONICS | Pressure transmitter | TPS20 Series | Non-indicating | 0-100 kPa | 4-20 mA 2-wire | 12-32 VDC | G1/4 thread | IP65 | non-indicating G1/4 | ||
| AUTONICS-TPS20-100KP-N14 | — | AUTONICS | Pressure transmitter | TPS20 Series | Non-indicating | 0-100 kPa | 4-20 mA 2-wire | 12-32 VDC | 1/4 NPT thread | IP65 | non-indicating 1/4 NPT | ||
| AUTONICS-TPS20-100KP-V | — | AUTONICS | Pressure transmitter | TPS20 Series | Non-indicating | 0-100 kPa | 0-10 V analog | 12-32 VDC | G1/4 thread | IP65 | non-indicating voltage | ||
| AUTONICS-TPS20-500KP-G14 | — | AUTONICS | Pressure transmitter | TPS20 Series | Non-indicating | 0-500 kPa | 4-20 mA 2-wire | 12-32 VDC | G1/4 thread | IP65 | non-indicating G1/4 | ||
| AUTONICS-TPS20-500KP-N14 | — | AUTONICS | Pressure transmitter | TPS20 Series | Non-indicating | 0-500 kPa | 4-20 mA 2-wire | 12-32 VDC | 1/4 NPT thread | IP65 | non-indicating 1/4 NPT | ||
| AUTONICS-TPS20-500KP-V | — | AUTONICS | Pressure transmitter | TPS20 Series | Non-indicating | 0-500 kPa | 0-10 V analog | 12-32 VDC | G1/4 thread | IP65 | non-indicating voltage | ||
| AUTONICS-TPS20-1MP-G14 | — | AUTONICS | Pressure transmitter | TPS20 Series | Non-indicating | 0-1 MPa | 4-20 mA 2-wire | 12-32 VDC | G1/4 thread | IP65 | non-indicating G1/4 | ||
| AUTONICS-TPS20-1MP-N14 | — | AUTONICS | Pressure transmitter | TPS20 Series | Non-indicating | 0-1 MPa | 4-20 mA 2-wire | 12-32 VDC | 1/4 NPT thread | IP65 | non-indicating 1/4 NPT | ||
| AUTONICS-TPS20-1MP-V | — | AUTONICS | Pressure transmitter | TPS20 Series | Non-indicating | 0-1 MPa | 0-10 V analog | 12-32 VDC | G1/4 thread | IP65 | non-indicating voltage | ||
| AUTONICS-TPS20-2MP-G14 | — | AUTONICS | Pressure transmitter | TPS20 Series | Non-indicating | 0-2 MPa | 4-20 mA 2-wire | 12-32 VDC | G1/4 thread | IP65 | non-indicating G1/4 | ||
| AUTONICS-TPS20-2MP-N14 | — | AUTONICS | Pressure transmitter | TPS20 Series | Non-indicating | 0-2 MPa | 4-20 mA 2-wire | 12-32 VDC | 1/4 NPT thread | IP65 | non-indicating 1/4 NPT | ||
| AUTONICS-TPS20-2MP-V | — | AUTONICS | Pressure transmitter | TPS20 Series | Non-indicating | 0-2 MPa | 0-10 V analog | 12-32 VDC | G1/4 thread | IP65 | non-indicating voltage | ||
| AUTONICS-TPS20-5MP-G14 | — | AUTONICS | Pressure transmitter | TPS20 Series | Non-indicating | 0-5 MPa | 4-20 mA 2-wire | 12-32 VDC | G1/4 thread | IP65 | non-indicating G1/4 | ||
| AUTONICS-TPS20-5MP-N14 | — | AUTONICS | Pressure transmitter | TPS20 Series | Non-indicating | 0-5 MPa | 4-20 mA 2-wire | 12-32 VDC | 1/4 NPT thread | IP65 | non-indicating 1/4 NPT | ||
| AUTONICS-TPS20-5MP-V | — | AUTONICS | Pressure transmitter | TPS20 Series | Non-indicating | 0-5 MPa | 0-10 V analog | 12-32 VDC | G1/4 thread | IP65 | non-indicating voltage | ||
| AUTONICS-TPS20-10MP-G14 | — | AUTONICS | Pressure transmitter | TPS20 Series | Non-indicating | 0-10 MPa | 4-20 mA 2-wire | 12-32 VDC | G1/4 thread | IP65 | non-indicating G1/4 | ||
| AUTONICS-TPS20-10MP-N14 | — | AUTONICS | Pressure transmitter | TPS20 Series | Non-indicating | 0-10 MPa | 4-20 mA 2-wire | 12-32 VDC | 1/4 NPT thread | IP65 | non-indicating 1/4 NPT | ||
| AUTONICS-TPS20-10MP-V | — | AUTONICS | Pressure transmitter | TPS20 Series | Non-indicating | 0-10 MPa | 0-10 V analog | 12-32 VDC | G1/4 thread | IP65 | non-indicating voltage | ||
| AUTONICS-TPS20-20MP-G14 | — | AUTONICS | Pressure transmitter | TPS20 Series | Non-indicating | 0-20 MPa | 4-20 mA 2-wire | 12-32 VDC | G1/4 thread | IP65 | non-indicating G1/4 | ||
| AUTONICS-TPS20-20MP-N14 | — | AUTONICS | Pressure transmitter | TPS20 Series | Non-indicating | 0-20 MPa | 4-20 mA 2-wire | 12-32 VDC | 1/4 NPT thread | IP65 | non-indicating 1/4 NPT | ||
| AUTONICS-TPS20-20MP-V | — | AUTONICS | Pressure transmitter | TPS20 Series | Non-indicating | 0-20 MPa | 0-10 V analog | 12-32 VDC | G1/4 thread | IP65 | non-indicating voltage | ||
| AUTONICS-TPS20-35MP-G14 | — | AUTONICS | Pressure transmitter | TPS20 Series | Non-indicating | 0-35 MPa | 4-20 mA 2-wire | 12-32 VDC | G1/4 thread | IP65 | non-indicating G1/4 | ||
| AUTONICS-TPS20-35MP-N14 | — | AUTONICS | Pressure transmitter | TPS20 Series | Non-indicating | 0-35 MPa | 4-20 mA 2-wire | 12-32 VDC | 1/4 NPT thread | IP65 | non-indicating 1/4 NPT | ||
| AUTONICS-TPS20-35MP-V | — | AUTONICS | Pressure transmitter | TPS20 Series | Non-indicating | 0-35 MPa | 0-10 V analog | 12-32 VDC | G1/4 thread | IP65 | non-indicating voltage | ||
| AUTONICS-TPS20-50MP-G14 | — | AUTONICS | Pressure transmitter | TPS20 Series | Non-indicating | 0-50 MPa | 4-20 mA 2-wire | 12-32 VDC | G1/4 thread | IP65 | non-indicating G1/4 | ||
| AUTONICS-TPS20-50MP-N14 | — | AUTONICS | Pressure transmitter | TPS20 Series | Non-indicating | 0-50 MPa | 4-20 mA 2-wire | 12-32 VDC | 1/4 NPT thread | IP65 | non-indicating 1/4 NPT | ||
| AUTONICS-TPS20-50MP-V | — | AUTONICS | Pressure transmitter | TPS20 Series | Non-indicating | 0-50 MPa | 0-10 V analog | 12-32 VDC | G1/4 thread | IP65 | non-indicating voltage |
