Pressure Transmitter
Autonics

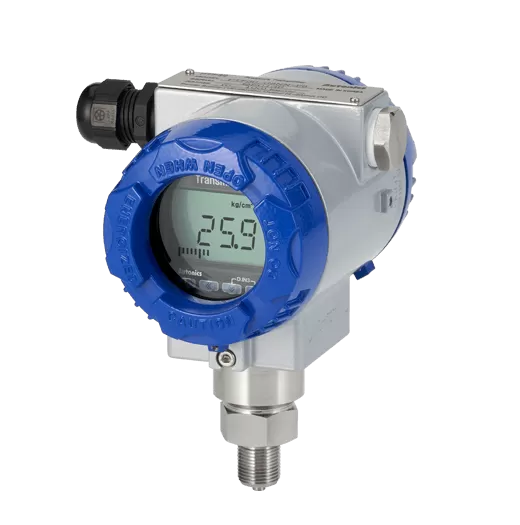

[AUTONICS] PTF30 Series Display Type Pressure Transmitters
Family ID: AUTONICS-PTF30-SERIES
Display type pressure transmitters with 4-digit LED display. Various pressure ranges from 100 kPa to 50 MPa. Stainless steel SUS316L wetted parts. 4-20 mA 2-wire output. G1/4 and 1/4 NPT process connections. Minimized disturbance effect by improving sensor design.
18 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-PTF30-100KP-G14 | — | AUTONICS | Pressure transmitter | PTF30 Series | Display type | 0-100 kPa | 4-20 mA 2-wire | 12-32 VDC | G1/4 thread | IP65 | display G1/4 connection | ||
| AUTONICS-PTF30-100KP-N14 | — | AUTONICS | Pressure transmitter | PTF30 Series | Display type | 0-100 kPa | 4-20 mA 2-wire | 12-32 VDC | 1/4 NPT thread | IP65 | display 1/4 NPT connection | ||
| AUTONICS-PTF30-500KP-G14 | — | AUTONICS | Pressure transmitter | PTF30 Series | Display type | 0-500 kPa | 4-20 mA 2-wire | 12-32 VDC | G1/4 thread | IP65 | display G1/4 connection | ||
| AUTONICS-PTF30-500KP-N14 | — | AUTONICS | Pressure transmitter | PTF30 Series | Display type | 0-500 kPa | 4-20 mA 2-wire | 12-32 VDC | 1/4 NPT thread | IP65 | display 1/4 NPT connection | ||
| AUTONICS-PTF30-1MP-G14 | — | AUTONICS | Pressure transmitter | PTF30 Series | Display type | 0-1 MPa | 4-20 mA 2-wire | 12-32 VDC | G1/4 thread | IP65 | display G1/4 connection | ||
| AUTONICS-PTF30-1MP-N14 | — | AUTONICS | Pressure transmitter | PTF30 Series | Display type | 0-1 MPa | 4-20 mA 2-wire | 12-32 VDC | 1/4 NPT thread | IP65 | display 1/4 NPT connection | ||
| AUTONICS-PTF30-2MP-G14 | — | AUTONICS | Pressure transmitter | PTF30 Series | Display type | 0-2 MPa | 4-20 mA 2-wire | 12-32 VDC | G1/4 thread | IP65 | display G1/4 connection | ||
| AUTONICS-PTF30-2MP-N14 | — | AUTONICS | Pressure transmitter | PTF30 Series | Display type | 0-2 MPa | 4-20 mA 2-wire | 12-32 VDC | 1/4 NPT thread | IP65 | display 1/4 NPT connection | ||
| AUTONICS-PTF30-5MP-G14 | — | AUTONICS | Pressure transmitter | PTF30 Series | Display type | 0-5 MPa | 4-20 mA 2-wire | 12-32 VDC | G1/4 thread | IP65 | display G1/4 connection | ||
| AUTONICS-PTF30-5MP-N14 | — | AUTONICS | Pressure transmitter | PTF30 Series | Display type | 0-5 MPa | 4-20 mA 2-wire | 12-32 VDC | 1/4 NPT thread | IP65 | display 1/4 NPT connection | ||
| AUTONICS-PTF30-10MP-G14 | — | AUTONICS | Pressure transmitter | PTF30 Series | Display type | 0-10 MPa | 4-20 mA 2-wire | 12-32 VDC | G1/4 thread | IP65 | display G1/4 connection | ||
| AUTONICS-PTF30-10MP-N14 | — | AUTONICS | Pressure transmitter | PTF30 Series | Display type | 0-10 MPa | 4-20 mA 2-wire | 12-32 VDC | 1/4 NPT thread | IP65 | display 1/4 NPT connection | ||
| AUTONICS-PTF30-20MP-G14 | — | AUTONICS | Pressure transmitter | PTF30 Series | Display type | 0-20 MPa | 4-20 mA 2-wire | 12-32 VDC | G1/4 thread | IP65 | display G1/4 connection | ||
| AUTONICS-PTF30-20MP-N14 | — | AUTONICS | Pressure transmitter | PTF30 Series | Display type | 0-20 MPa | 4-20 mA 2-wire | 12-32 VDC | 1/4 NPT thread | IP65 | display 1/4 NPT connection | ||
| AUTONICS-PTF30-35MP-G14 | — | AUTONICS | Pressure transmitter | PTF30 Series | Display type | 0-35 MPa | 4-20 mA 2-wire | 12-32 VDC | G1/4 thread | IP65 | display G1/4 connection | ||
| AUTONICS-PTF30-35MP-N14 | — | AUTONICS | Pressure transmitter | PTF30 Series | Display type | 0-35 MPa | 4-20 mA 2-wire | 12-32 VDC | 1/4 NPT thread | IP65 | display 1/4 NPT connection | ||
| AUTONICS-PTF30-50MP-G14 | — | AUTONICS | Pressure transmitter | PTF30 Series | Display type | 0-50 MPa | 4-20 mA 2-wire | 12-32 VDC | G1/4 thread | IP65 | display G1/4 connection | ||
| AUTONICS-PTF30-50MP-N14 | — | AUTONICS | Pressure transmitter | PTF30 Series | Display type | 0-50 MPa | 4-20 mA 2-wire | 12-32 VDC | 1/4 NPT thread | IP65 | display 1/4 NPT connection |
