Proximity
Autonics

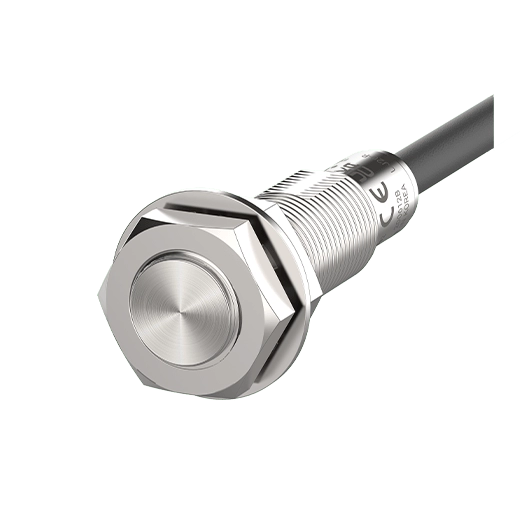

[AUTONICS] PRFD Series Cylindrical Inductive Full-Metal Long-Distance Proximity Sensors
Family ID: AUTONICS-PRFD-SERIES
Full-metal stainless body cylindrical inductive proximity sensors for harsh environments. Long-distance sensing. DC 3-wire (NPN/PNP), DC 2-wire, and IO-Link variants. M8/M12/M18/M30 sizes. IP67 rated.
25 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-PRFD8-2DN | — | AUTONICS | Inductive proximity sensor | PRFD Series | Long-distance full-metal flush | M8, 2 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | stainless full-metal body | ||
| AUTONICS-PRFD8-2DP | — | AUTONICS | Inductive proximity sensor | PRFD Series | Long-distance full-metal flush | M8, 2 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | stainless full-metal body | ||
| AUTONICS-PRFDCM8-2DN | — | AUTONICS | Inductive proximity sensor | PRFD Series | Long-distance full-metal flush | M8, 2 mm | DC 3-wire NPN open collector | 10-30 VDC | M12 connector type | IP67 | stainless full-metal body | ||
| AUTONICS-PRFDCM8-2DP | — | AUTONICS | Inductive proximity sensor | PRFD Series | Long-distance full-metal flush | M8, 2 mm | DC 3-wire PNP open collector | 10-30 VDC | M12 connector type | IP67 | stainless full-metal body | ||
| AUTONICS-PRFD12-4DN | — | AUTONICS | Inductive proximity sensor | PRFD Series | Long-distance full-metal flush | M12, 4 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | stainless full-metal body | ||
| AUTONICS-PRFD12-4DP | — | AUTONICS | Inductive proximity sensor | PRFD Series | Long-distance full-metal flush | M12, 4 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | stainless full-metal body | ||
| AUTONICS-PRFDCM12-4DN | — | AUTONICS | Inductive proximity sensor | PRFD Series | Long-distance full-metal flush | M12, 4 mm | DC 3-wire NPN open collector | 10-30 VDC | M12 connector type | IP67 | stainless full-metal body | ||
| AUTONICS-PRFDCM12-4DP | — | AUTONICS | Inductive proximity sensor | PRFD Series | Long-distance full-metal flush | M12, 4 mm | DC 3-wire PNP open collector | 10-30 VDC | M12 connector type | IP67 | stainless full-metal body | ||
| AUTONICS-PRFD18-7DN | — | AUTONICS | Inductive proximity sensor | PRFD Series | Long-distance full-metal flush | M18, 7 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | stainless full-metal body | ||
| AUTONICS-PRFD18-7DP | — | AUTONICS | Inductive proximity sensor | PRFD Series | Long-distance full-metal flush | M18, 7 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | stainless full-metal body | ||
| AUTONICS-PRFDCM18-7DN | — | AUTONICS | Inductive proximity sensor | PRFD Series | Long-distance full-metal flush | M18, 7 mm | DC 3-wire NPN open collector | 10-30 VDC | M12 connector type | IP67 | stainless full-metal body | ||
| AUTONICS-PRFDCM18-7DP | — | AUTONICS | Inductive proximity sensor | PRFD Series | Long-distance full-metal flush | M18, 7 mm | DC 3-wire PNP open collector | 10-30 VDC | M12 connector type | IP67 | stainless full-metal body | ||
| AUTONICS-PRFD30-15DN | — | AUTONICS | Inductive proximity sensor | PRFD Series | Long-distance full-metal flush | M30, 15 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | stainless full-metal body | ||
| AUTONICS-PRFD30-15DP | — | AUTONICS | Inductive proximity sensor | PRFD Series | Long-distance full-metal flush | M30, 15 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | stainless full-metal body | ||
| AUTONICS-PRFDCM30-15DN | — | AUTONICS | Inductive proximity sensor | PRFD Series | Long-distance full-metal flush | M30, 15 mm | DC 3-wire NPN open collector | 10-30 VDC | M12 connector type | IP67 | stainless full-metal body | ||
| AUTONICS-PRFDCM30-15DP | — | AUTONICS | Inductive proximity sensor | PRFD Series | Long-distance full-metal flush | M30, 15 mm | DC 3-wire PNP open collector | 10-30 VDC | M12 connector type | IP67 | stainless full-metal body | ||
| AUTONICS-PRFD12-4A | — | AUTONICS | Inductive proximity sensor | PRFD Series | Long-distance full-metal flush DC 2-wire | M12, 4 mm | DC 2-wire | 10-30 VDC | Cable type | IP67 | 2-wire full-metal | ||
| AUTONICS-PRFDCM12-4A | — | AUTONICS | Inductive proximity sensor | PRFD Series | Long-distance full-metal flush DC 2-wire | M12, 4 mm | DC 2-wire | 10-30 VDC | M12 connector type | IP67 | 2-wire full-metal | ||
| AUTONICS-PRFD18-7A | — | AUTONICS | Inductive proximity sensor | PRFD Series | Long-distance full-metal flush DC 2-wire | M18, 7 mm | DC 2-wire | 10-30 VDC | Cable type | IP67 | 2-wire full-metal | ||
| AUTONICS-PRFDCM18-7A | — | AUTONICS | Inductive proximity sensor | PRFD Series | Long-distance full-metal flush DC 2-wire | M18, 7 mm | DC 2-wire | 10-30 VDC | M12 connector type | IP67 | 2-wire full-metal | ||
| AUTONICS-PRFD30-15A | — | AUTONICS | Inductive proximity sensor | PRFD Series | Long-distance full-metal flush DC 2-wire | M30, 15 mm | DC 2-wire | 10-30 VDC | Cable type | IP67 | 2-wire full-metal | ||
| AUTONICS-PRFDCM30-15A | — | AUTONICS | Inductive proximity sensor | PRFD Series | Long-distance full-metal flush DC 2-wire | M30, 15 mm | DC 2-wire | 10-30 VDC | M12 connector type | IP67 | 2-wire full-metal | ||
| AUTONICS-PRFDCM12-4DI | — | AUTONICS | Inductive proximity sensor | PRFD Series | Long-distance full-metal flush IO-Link | M12, 4 mm | IO-Link / SIO mode | 10-30 VDC | M12 connector type | IP67 | IO-Link full-metal | ||
| AUTONICS-PRFDCM18-7DI | — | AUTONICS | Inductive proximity sensor | PRFD Series | Long-distance full-metal flush IO-Link | M18, 7 mm | IO-Link / SIO mode | 10-30 VDC | M12 connector type | IP67 | IO-Link full-metal | ||
| AUTONICS-PRFDCM30-15DI | — | AUTONICS | Inductive proximity sensor | PRFD Series | Long-distance full-metal flush IO-Link | M30, 15 mm | IO-Link / SIO mode | 10-30 VDC | M12 connector type | IP67 | IO-Link full-metal |
