![[AUTONICS] PSAN Series Display Type Pressure Sensors](https://prosourcemro.com/wp-content/uploads/2026/04/001-1314.png)
Pressure Sensor
Autonics

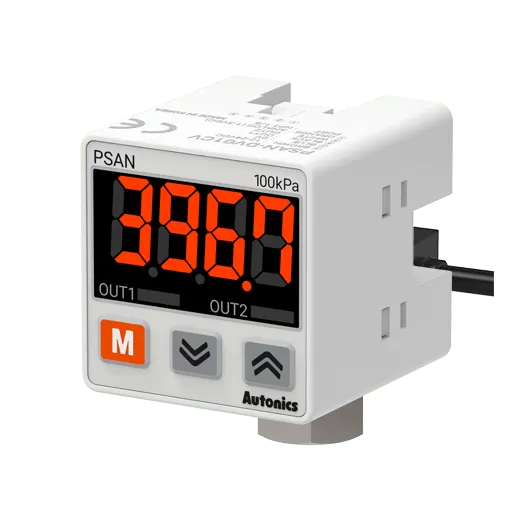

[AUTONICS] PSAN Series Display Type Pressure Sensors
Family ID: AUTONICS-PSAN-SERIES
Display type pressure sensors with 7-segment LED 4½ digit display. Negative, positive low, high pressure, and compound pressure variants. Pneumatic (air) and fluid (SUS316L) body types. Auto-shift function for original pressure changes. Hold function and external input. NPN/PNP and optional analog output.
32 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-PSAN-CV01P-A | — | AUTONICS | Pressure sensor | PSAN Series | Display type pneumatic body | 0.0 to -101.3 kPa (Negative pressure) | PNP open collector no analog | 12-24 VDC | Connector/Cable | IP40 | single display | ||
| AUTONICS-PSAN-CV01PA-A | — | AUTONICS | Pressure sensor | PSAN Series | Display type pneumatic body | 0.0 to -101.3 kPa (Negative pressure) | PNP open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP40 | single display with analog output | ||
| AUTONICS-PSAN-CV01N-A | — | AUTONICS | Pressure sensor | PSAN Series | Display type pneumatic body | 0.0 to -101.3 kPa (Negative pressure) | NPN open collector no analog | 12-24 VDC | Connector/Cable | IP40 | single display | ||
| AUTONICS-PSAN-CV01NA-A | — | AUTONICS | Pressure sensor | PSAN Series | Display type pneumatic body | 0.0 to -101.3 kPa (Negative pressure) | NPN open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP40 | single display with analog output | ||
| AUTONICS-PSAN-BV01CP-A | — | AUTONICS | Pressure sensor | PSAN Series | Display type fluid body SUS316L | 0.0 to -101.3 kPa (Negative pressure) | PNP open collector no analog | 12-24 VDC | Connector/Cable | IP65 | single display | ||
| AUTONICS-PSAN-BV01CPA-A | — | AUTONICS | Pressure sensor | PSAN Series | Display type fluid body SUS316L | 0.0 to -101.3 kPa (Negative pressure) | PNP open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP65 | single display with analog output | ||
| AUTONICS-PSAN-BV01CN-A | — | AUTONICS | Pressure sensor | PSAN Series | Display type fluid body SUS316L | 0.0 to -101.3 kPa (Negative pressure) | NPN open collector no analog | 12-24 VDC | Connector/Cable | IP65 | single display | ||
| AUTONICS-PSAN-BV01CNA-A | — | AUTONICS | Pressure sensor | PSAN Series | Display type fluid body SUS316L | 0.0 to -101.3 kPa (Negative pressure) | NPN open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP65 | single display with analog output | ||
| AUTONICS-PSAN-C01P-A | — | AUTONICS | Pressure sensor | PSAN Series | Display type pneumatic body | 0.0 to 100.0 kPa (Static positive low) | PNP open collector no analog | 12-24 VDC | Connector/Cable | IP40 | single display | ||
| AUTONICS-PSAN-C01PA-A | — | AUTONICS | Pressure sensor | PSAN Series | Display type pneumatic body | 0.0 to 100.0 kPa (Static positive low) | PNP open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP40 | single display with analog output | ||
| AUTONICS-PSAN-C01N-A | — | AUTONICS | Pressure sensor | PSAN Series | Display type pneumatic body | 0.0 to 100.0 kPa (Static positive low) | NPN open collector no analog | 12-24 VDC | Connector/Cable | IP40 | single display | ||
| AUTONICS-PSAN-C01NA-A | — | AUTONICS | Pressure sensor | PSAN Series | Display type pneumatic body | 0.0 to 100.0 kPa (Static positive low) | NPN open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP40 | single display with analog output | ||
| AUTONICS-PSAN-B01CP-A | — | AUTONICS | Pressure sensor | PSAN Series | Display type fluid body SUS316L | 0.0 to 100.0 kPa (Static positive low) | PNP open collector no analog | 12-24 VDC | Connector/Cable | IP65 | single display | ||
| AUTONICS-PSAN-B01CPA-A | — | AUTONICS | Pressure sensor | PSAN Series | Display type fluid body SUS316L | 0.0 to 100.0 kPa (Static positive low) | PNP open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP65 | single display with analog output | ||
| AUTONICS-PSAN-B01CN-A | — | AUTONICS | Pressure sensor | PSAN Series | Display type fluid body SUS316L | 0.0 to 100.0 kPa (Static positive low) | NPN open collector no analog | 12-24 VDC | Connector/Cable | IP65 | single display | ||
| AUTONICS-PSAN-B01CNA-A | — | AUTONICS | Pressure sensor | PSAN Series | Display type fluid body SUS316L | 0.0 to 100.0 kPa (Static positive low) | NPN open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP65 | single display with analog output | ||
| AUTONICS-PSAN-C1P-A | — | AUTONICS | Pressure sensor | PSAN Series | Display type pneumatic body | 0 to 1000 kPa (Static high pressure) | PNP open collector no analog | 12-24 VDC | Connector/Cable | IP40 | single display | ||
| AUTONICS-PSAN-C1PA-A | — | AUTONICS | Pressure sensor | PSAN Series | Display type pneumatic body | 0 to 1000 kPa (Static high pressure) | PNP open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP40 | single display with analog output | ||
| AUTONICS-PSAN-C1N-A | — | AUTONICS | Pressure sensor | PSAN Series | Display type pneumatic body | 0 to 1000 kPa (Static high pressure) | NPN open collector no analog | 12-24 VDC | Connector/Cable | IP40 | single display | ||
| AUTONICS-PSAN-C1NA-A | — | AUTONICS | Pressure sensor | PSAN Series | Display type pneumatic body | 0 to 1000 kPa (Static high pressure) | NPN open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP40 | single display with analog output | ||
| AUTONICS-PSAN-B1CP-A | — | AUTONICS | Pressure sensor | PSAN Series | Display type fluid body SUS316L | 0 to 1000 kPa (Static high pressure) | PNP open collector no analog | 12-24 VDC | Connector/Cable | IP65 | single display | ||
| AUTONICS-PSAN-B1CPA-A | — | AUTONICS | Pressure sensor | PSAN Series | Display type fluid body SUS316L | 0 to 1000 kPa (Static high pressure) | PNP open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP65 | single display with analog output | ||
| AUTONICS-PSAN-B1CN-A | — | AUTONICS | Pressure sensor | PSAN Series | Display type fluid body SUS316L | 0 to 1000 kPa (Static high pressure) | NPN open collector no analog | 12-24 VDC | Connector/Cable | IP65 | single display | ||
| AUTONICS-PSAN-B1CNA-A | — | AUTONICS | Pressure sensor | PSAN Series | Display type fluid body SUS316L | 0 to 1000 kPa (Static high pressure) | NPN open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP65 | single display with analog output | ||
| AUTONICS-PSAN-CC01P-A | — | AUTONICS | Pressure sensor | PSAN Series | Display type pneumatic body | -101.3 to 100.0 kPa (Compound pressure) | PNP open collector no analog | 12-24 VDC | Connector/Cable | IP40 | single display | ||
| AUTONICS-PSAN-CC01PA-A | — | AUTONICS | Pressure sensor | PSAN Series | Display type pneumatic body | -101.3 to 100.0 kPa (Compound pressure) | PNP open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP40 | single display with analog output | ||
| AUTONICS-PSAN-CC01N-A | — | AUTONICS | Pressure sensor | PSAN Series | Display type pneumatic body | -101.3 to 100.0 kPa (Compound pressure) | NPN open collector no analog | 12-24 VDC | Connector/Cable | IP40 | single display | ||
| AUTONICS-PSAN-CC01NA-A | — | AUTONICS | Pressure sensor | PSAN Series | Display type pneumatic body | -101.3 to 100.0 kPa (Compound pressure) | NPN open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP40 | single display with analog output | ||
| AUTONICS-PSAN-BC01CP-A | — | AUTONICS | Pressure sensor | PSAN Series | Display type fluid body SUS316L | -101.3 to 100.0 kPa (Compound pressure) | PNP open collector no analog | 12-24 VDC | Connector/Cable | IP65 | single display | ||
| AUTONICS-PSAN-BC01CPA-A | — | AUTONICS | Pressure sensor | PSAN Series | Display type fluid body SUS316L | -101.3 to 100.0 kPa (Compound pressure) | PNP open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP65 | single display with analog output | ||
| AUTONICS-PSAN-BC01CN-A | — | AUTONICS | Pressure sensor | PSAN Series | Display type fluid body SUS316L | -101.3 to 100.0 kPa (Compound pressure) | NPN open collector no analog | 12-24 VDC | Connector/Cable | IP65 | single display | ||
| AUTONICS-PSAN-BC01CNA-A | — | AUTONICS | Pressure sensor | PSAN Series | Display type fluid body SUS316L | -101.3 to 100.0 kPa (Compound pressure) | NPN open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP65 | single display with analog output |
