Pressure Sensor
Autonics

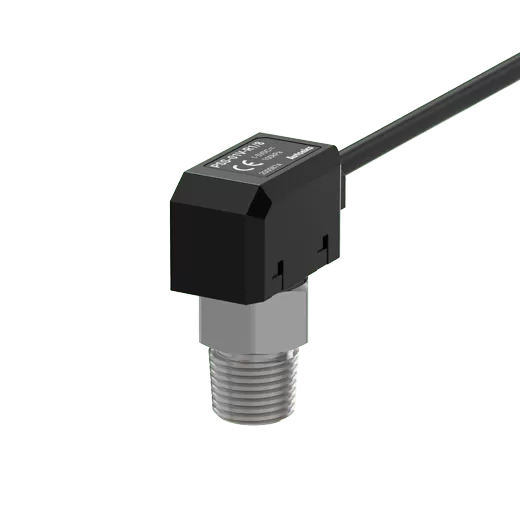

[AUTONICS] PSS Series Compact Pressure Sensors
Family ID: AUTONICS-PSS-SERIES
Compact non-indicating (no display) pressure sensors. Smallest body in the lineup. Pneumatic type for air and non-corrosive gas. Negative, positive, and compound pressure ranges. NPN/PNP output with optional analog. For applications where space is limited and visual display not needed.
16 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-PSS-V01P | — | AUTONICS | Pressure sensor | PSS Series | Compact non-indicating pneumatic | 0.0 to -101.3 kPa (Negative) | PNP open collector | 12-24 VDC | Connector | IP40 | compact non-indicating | ||
| AUTONICS-PSS-V01P-A | — | AUTONICS | Pressure sensor | PSS Series | Compact non-indicating pneumatic | 0.0 to -101.3 kPa (Negative) | PNP open collector + analog | 12-24 VDC | Connector | IP40 | compact non-indicating analog | ||
| AUTONICS-PSS-V01N | — | AUTONICS | Pressure sensor | PSS Series | Compact non-indicating pneumatic | 0.0 to -101.3 kPa (Negative) | NPN open collector | 12-24 VDC | Connector | IP40 | compact non-indicating | ||
| AUTONICS-PSS-V01N-A | — | AUTONICS | Pressure sensor | PSS Series | Compact non-indicating pneumatic | 0.0 to -101.3 kPa (Negative) | NPN open collector + analog | 12-24 VDC | Connector | IP40 | compact non-indicating analog | ||
| AUTONICS-PSS-01P | — | AUTONICS | Pressure sensor | PSS Series | Compact non-indicating pneumatic | 0.0 to 100.0 kPa (Positive low) | PNP open collector | 12-24 VDC | Connector | IP40 | compact non-indicating | ||
| AUTONICS-PSS-01P-A | — | AUTONICS | Pressure sensor | PSS Series | Compact non-indicating pneumatic | 0.0 to 100.0 kPa (Positive low) | PNP open collector + analog | 12-24 VDC | Connector | IP40 | compact non-indicating analog | ||
| AUTONICS-PSS-01N | — | AUTONICS | Pressure sensor | PSS Series | Compact non-indicating pneumatic | 0.0 to 100.0 kPa (Positive low) | NPN open collector | 12-24 VDC | Connector | IP40 | compact non-indicating | ||
| AUTONICS-PSS-01N-A | — | AUTONICS | Pressure sensor | PSS Series | Compact non-indicating pneumatic | 0.0 to 100.0 kPa (Positive low) | NPN open collector + analog | 12-24 VDC | Connector | IP40 | compact non-indicating analog | ||
| AUTONICS-PSS-1P | — | AUTONICS | Pressure sensor | PSS Series | Compact non-indicating pneumatic | 0 to 1000 kPa (Positive high) | PNP open collector | 12-24 VDC | Connector | IP40 | compact non-indicating | ||
| AUTONICS-PSS-1P-A | — | AUTONICS | Pressure sensor | PSS Series | Compact non-indicating pneumatic | 0 to 1000 kPa (Positive high) | PNP open collector + analog | 12-24 VDC | Connector | IP40 | compact non-indicating analog | ||
| AUTONICS-PSS-1N | — | AUTONICS | Pressure sensor | PSS Series | Compact non-indicating pneumatic | 0 to 1000 kPa (Positive high) | NPN open collector | 12-24 VDC | Connector | IP40 | compact non-indicating | ||
| AUTONICS-PSS-1N-A | — | AUTONICS | Pressure sensor | PSS Series | Compact non-indicating pneumatic | 0 to 1000 kPa (Positive high) | NPN open collector + analog | 12-24 VDC | Connector | IP40 | compact non-indicating analog | ||
| AUTONICS-PSS-C01P | — | AUTONICS | Pressure sensor | PSS Series | Compact non-indicating pneumatic | -101.3 to 100.0 kPa (Compound) | PNP open collector | 12-24 VDC | Connector | IP40 | compact non-indicating | ||
| AUTONICS-PSS-C01P-A | — | AUTONICS | Pressure sensor | PSS Series | Compact non-indicating pneumatic | -101.3 to 100.0 kPa (Compound) | PNP open collector + analog | 12-24 VDC | Connector | IP40 | compact non-indicating analog | ||
| AUTONICS-PSS-C01N | — | AUTONICS | Pressure sensor | PSS Series | Compact non-indicating pneumatic | -101.3 to 100.0 kPa (Compound) | NPN open collector | 12-24 VDC | Connector | IP40 | compact non-indicating | ||
| AUTONICS-PSS-C01N-A | — | AUTONICS | Pressure sensor | PSS Series | Compact non-indicating pneumatic | -101.3 to 100.0 kPa (Compound) | NPN open collector + analog | 12-24 VDC | Connector | IP40 | compact non-indicating analog |
