![[AUTONICS] PSQ Series Dual Display Type Pressure Sensors](https://img.prosourcemro.com/2026/04/001-1317.png)
Pressure Sensor
Autonics

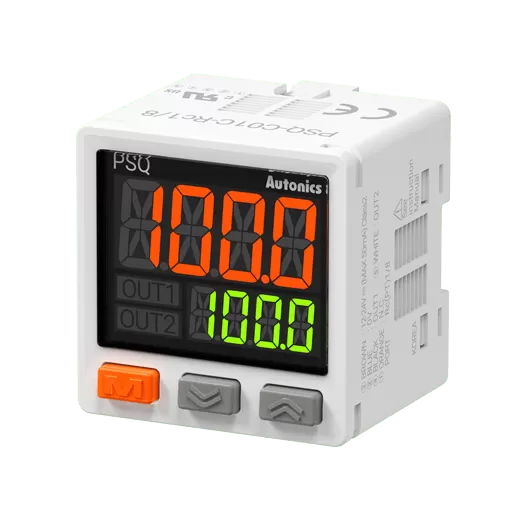

[AUTONICS] PSQ Series Dual Display Type Pressure Sensors
Family ID: AUTONICS-PSQ-SERIES
Dual display pressure sensors for simultaneous display of process value (PV) and setpoint value (SV). Pneumatic type (air) and fluid type (gas/liquid/oil with SUS316L). Pressure range -100 to 1000 kPa. NPN/PNP switchable via parameter. Optional analog output (4-20 mA + 1-5 V). External input for Auto-Shift, Remote, Hold functions.
20 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-PSQ-CV01CP-A | — | AUTONICS | Pressure sensor | PSQ Series | Dual display pneumatic | 0.0 to -101.3 kPa negative | PNP open collector + 4-20 mA + 1-5 V | 12-24 VDC | Connector | IP40 | dual display | ||
| AUTONICS-PSQ-CV01CP | — | AUTONICS | Pressure sensor | PSQ Series | Dual display pneumatic | 0.0 to -101.3 kPa negative | PNP open collector | 12-24 VDC | Connector | IP40 | dual display | ||
| AUTONICS-PSQ-CV01CN-A | — | AUTONICS | Pressure sensor | PSQ Series | Dual display pneumatic | 0.0 to -101.3 kPa negative | NPN open collector + 4-20 mA + 1-5 V | 12-24 VDC | Connector | IP40 | dual display | ||
| AUTONICS-PSQ-CV01CN | — | AUTONICS | Pressure sensor | PSQ Series | Dual display pneumatic | 0.0 to -101.3 kPa negative | NPN open collector | 12-24 VDC | Connector | IP40 | dual display | ||
| AUTONICS-PSQ-C01CP-A | — | AUTONICS | Pressure sensor | PSQ Series | Dual display pneumatic | -100.0 to 100.0 kPa compound | PNP open collector + 4-20 mA + 1-5 V | 12-24 VDC | Connector | IP40 | dual display | ||
| AUTONICS-PSQ-C01CP | — | AUTONICS | Pressure sensor | PSQ Series | Dual display pneumatic | -100.0 to 100.0 kPa compound | PNP open collector | 12-24 VDC | Connector | IP40 | dual display | ||
| AUTONICS-PSQ-C01CN-A | — | AUTONICS | Pressure sensor | PSQ Series | Dual display pneumatic | -100.0 to 100.0 kPa compound | NPN open collector + 4-20 mA + 1-5 V | 12-24 VDC | Connector | IP40 | dual display | ||
| AUTONICS-PSQ-C01CN | — | AUTONICS | Pressure sensor | PSQ Series | Dual display pneumatic | -100.0 to 100.0 kPa compound | NPN open collector | 12-24 VDC | Connector | IP40 | dual display | ||
| AUTONICS-PSQ-C1CP-A | — | AUTONICS | Pressure sensor | PSQ Series | Dual display pneumatic | -100 to 1000 kPa | PNP open collector + 4-20 mA + 1-5 V | 12-24 VDC | Connector | IP40 | dual display | ||
| AUTONICS-PSQ-C1CP | — | AUTONICS | Pressure sensor | PSQ Series | Dual display pneumatic | -100 to 1000 kPa | PNP open collector | 12-24 VDC | Connector | IP40 | dual display | ||
| AUTONICS-PSQ-C1CN-A | — | AUTONICS | Pressure sensor | PSQ Series | Dual display pneumatic | -100 to 1000 kPa | NPN open collector + 4-20 mA + 1-5 V | 12-24 VDC | Connector | IP40 | dual display | ||
| AUTONICS-PSQ-C1CN | — | AUTONICS | Pressure sensor | PSQ Series | Dual display pneumatic | -100 to 1000 kPa | NPN open collector | 12-24 VDC | Connector | IP40 | dual display | ||
| AUTONICS-PSQ-BC01P-A | — | AUTONICS | Pressure sensor | PSQ Series | Dual display fluid | -100.0 to 100.0 kPa compound | PNP open collector + 4-20 mA + 1-5 V | 12-24 VDC | Cable type | IP65 | dual display SUS316L | ||
| AUTONICS-PSQ-BC01P | — | AUTONICS | Pressure sensor | PSQ Series | Dual display fluid | -100.0 to 100.0 kPa compound | PNP open collector | 12-24 VDC | Cable type | IP65 | dual display SUS316L | ||
| AUTONICS-PSQ-BC01N-A | — | AUTONICS | Pressure sensor | PSQ Series | Dual display fluid | -100.0 to 100.0 kPa compound | NPN open collector + 4-20 mA + 1-5 V | 12-24 VDC | Cable type | IP65 | dual display SUS316L | ||
| AUTONICS-PSQ-BC01N | — | AUTONICS | Pressure sensor | PSQ Series | Dual display fluid | -100.0 to 100.0 kPa compound | NPN open collector | 12-24 VDC | Cable type | IP65 | dual display SUS316L | ||
| AUTONICS-PSQ-BC1P-A | — | AUTONICS | Pressure sensor | PSQ Series | Dual display fluid | -100 to 1000 kPa | PNP open collector + 4-20 mA + 1-5 V | 12-24 VDC | Cable type | IP65 | dual display SUS316L | ||
| AUTONICS-PSQ-BC1P | — | AUTONICS | Pressure sensor | PSQ Series | Dual display fluid | -100 to 1000 kPa | PNP open collector | 12-24 VDC | Cable type | IP65 | dual display SUS316L | ||
| AUTONICS-PSQ-BC1N-A | — | AUTONICS | Pressure sensor | PSQ Series | Dual display fluid | -100 to 1000 kPa | NPN open collector + 4-20 mA + 1-5 V | 12-24 VDC | Cable type | IP65 | dual display SUS316L | ||
| AUTONICS-PSQ-BC1N | — | AUTONICS | Pressure sensor | PSQ Series | Dual display fluid | -100 to 1000 kPa | NPN open collector | 12-24 VDC | Cable type | IP65 | dual display SUS316L |
