Pressure Sensor
Autonics

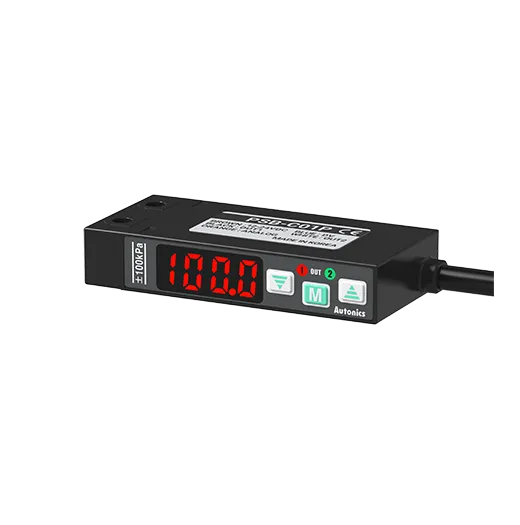

[AUTONICS] PSB Series Display Type Pressure Sensors
Family ID: AUTONICS-PSB-SERIES
Compact display type pressure sensors with 4-digit LED display. Negative, positive, and compound pressure variants. Pneumatic body for air and non-corrosive gas. Cost-effective alternative to PSAN Series with similar performance.
16 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-PSB-V01P | — | AUTONICS | Pressure sensor | PSB Series | Compact display pneumatic | 0.0 to -101.3 kPa (Negative) | PNP open collector | 12-24 VDC | Connector | IP40 | compact body | ||
| AUTONICS-PSB-V01P-A | — | AUTONICS | Pressure sensor | PSB Series | Compact display pneumatic | 0.0 to -101.3 kPa (Negative) | PNP open collector + analog | 12-24 VDC | Connector | IP40 | compact body with analog | ||
| AUTONICS-PSB-V01N | — | AUTONICS | Pressure sensor | PSB Series | Compact display pneumatic | 0.0 to -101.3 kPa (Negative) | NPN open collector | 12-24 VDC | Connector | IP40 | compact body | ||
| AUTONICS-PSB-V01N-A | — | AUTONICS | Pressure sensor | PSB Series | Compact display pneumatic | 0.0 to -101.3 kPa (Negative) | NPN open collector + analog | 12-24 VDC | Connector | IP40 | compact body with analog | ||
| AUTONICS-PSB-01P | — | AUTONICS | Pressure sensor | PSB Series | Compact display pneumatic | 0.0 to 100.0 kPa (Positive low) | PNP open collector | 12-24 VDC | Connector | IP40 | compact body | ||
| AUTONICS-PSB-01P-A | — | AUTONICS | Pressure sensor | PSB Series | Compact display pneumatic | 0.0 to 100.0 kPa (Positive low) | PNP open collector + analog | 12-24 VDC | Connector | IP40 | compact body with analog | ||
| AUTONICS-PSB-01N | — | AUTONICS | Pressure sensor | PSB Series | Compact display pneumatic | 0.0 to 100.0 kPa (Positive low) | NPN open collector | 12-24 VDC | Connector | IP40 | compact body | ||
| AUTONICS-PSB-01N-A | — | AUTONICS | Pressure sensor | PSB Series | Compact display pneumatic | 0.0 to 100.0 kPa (Positive low) | NPN open collector + analog | 12-24 VDC | Connector | IP40 | compact body with analog | ||
| AUTONICS-PSB-1P | — | AUTONICS | Pressure sensor | PSB Series | Compact display pneumatic | 0 to 1000 kPa (Positive high) | PNP open collector | 12-24 VDC | Connector | IP40 | compact body | ||
| AUTONICS-PSB-1P-A | — | AUTONICS | Pressure sensor | PSB Series | Compact display pneumatic | 0 to 1000 kPa (Positive high) | PNP open collector + analog | 12-24 VDC | Connector | IP40 | compact body with analog | ||
| AUTONICS-PSB-1N | — | AUTONICS | Pressure sensor | PSB Series | Compact display pneumatic | 0 to 1000 kPa (Positive high) | NPN open collector | 12-24 VDC | Connector | IP40 | compact body | ||
| AUTONICS-PSB-1N-A | — | AUTONICS | Pressure sensor | PSB Series | Compact display pneumatic | 0 to 1000 kPa (Positive high) | NPN open collector + analog | 12-24 VDC | Connector | IP40 | compact body with analog | ||
| AUTONICS-PSB-C01P | — | AUTONICS | Pressure sensor | PSB Series | Compact display pneumatic | -101.3 to 100.0 kPa (Compound) | PNP open collector | 12-24 VDC | Connector | IP40 | compact body | ||
| AUTONICS-PSB-C01P-A | — | AUTONICS | Pressure sensor | PSB Series | Compact display pneumatic | -101.3 to 100.0 kPa (Compound) | PNP open collector + analog | 12-24 VDC | Connector | IP40 | compact body with analog | ||
| AUTONICS-PSB-C01N | — | AUTONICS | Pressure sensor | PSB Series | Compact display pneumatic | -101.3 to 100.0 kPa (Compound) | NPN open collector | 12-24 VDC | Connector | IP40 | compact body | ||
| AUTONICS-PSB-C01N-A | — | AUTONICS | Pressure sensor | PSB Series | Compact display pneumatic | -101.3 to 100.0 kPa (Compound) | NPN open collector + analog | 12-24 VDC | Connector | IP40 | compact body with analog |
