![[AUTONICS] TCN Series Dual Display PID Temperature Controllers](https://img.prosourcemro.com/2026/04/001-1401.png)
Temperature Controller
Autonics

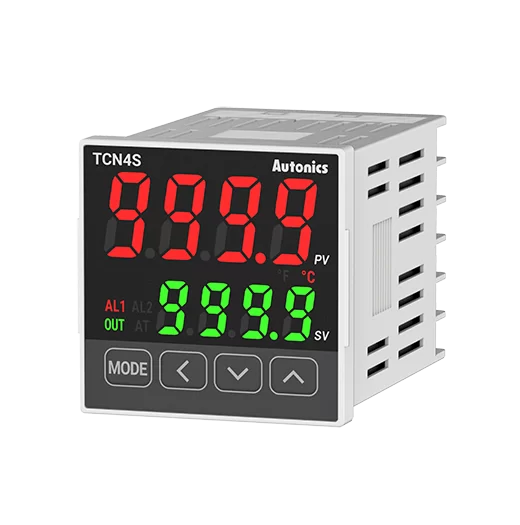

[AUTONICS] TCN Series Dual Display PID Temperature Controllers
Family ID: AUTONICS-TCN-SERIES
Dual display PID temperature controllers with simultaneous PV/SV indication. Compact economical design. Universal input (RTD, TC, analog). Various sizes (W 48 x H 24 to W 96 x H 48 mm). Multi-output (relay, SSR drive, current).
20 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-TCN-4S-R | — | AUTONICS | Temperature controller | TCN Series | PID W 48 x H 96 mm panel mount | universal RTD/TC input | Relay | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TCN-4S-S | — | AUTONICS | Temperature controller | TCN Series | PID W 48 x H 96 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TCN-4S-V | — | AUTONICS | Temperature controller | TCN Series | PID W 48 x H 96 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TCN-4S-C | — | AUTONICS | Temperature controller | TCN Series | PID W 48 x H 96 mm panel mount | universal RTD/TC input | Current 4-20 mA | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TCN-4M-R | — | AUTONICS | Temperature controller | TCN Series | PID W 48 x H 48 mm panel mount | universal RTD/TC input | Relay | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TCN-4M-S | — | AUTONICS | Temperature controller | TCN Series | PID W 48 x H 48 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TCN-4M-V | — | AUTONICS | Temperature controller | TCN Series | PID W 48 x H 48 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TCN-4M-C | — | AUTONICS | Temperature controller | TCN Series | PID W 48 x H 48 mm panel mount | universal RTD/TC input | Current 4-20 mA | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TCN-4Y-R | — | AUTONICS | Temperature controller | TCN Series | PID W 72 x H 36 mm panel mount | universal RTD/TC input | Relay | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TCN-4Y-S | — | AUTONICS | Temperature controller | TCN Series | PID W 72 x H 36 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TCN-4Y-V | — | AUTONICS | Temperature controller | TCN Series | PID W 72 x H 36 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TCN-4Y-C | — | AUTONICS | Temperature controller | TCN Series | PID W 72 x H 36 mm panel mount | universal RTD/TC input | Current 4-20 mA | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TCN-4W-R | — | AUTONICS | Temperature controller | TCN Series | PID W 96 x H 48 mm panel mount | universal RTD/TC input | Relay | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TCN-4W-S | — | AUTONICS | Temperature controller | TCN Series | PID W 96 x H 48 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TCN-4W-V | — | AUTONICS | Temperature controller | TCN Series | PID W 96 x H 48 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TCN-4W-C | — | AUTONICS | Temperature controller | TCN Series | PID W 96 x H 48 mm panel mount | universal RTD/TC input | Current 4-20 mA | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TCN-4N-R | — | AUTONICS | Temperature controller | TCN Series | PID W 48 x H 24 mm panel mount | universal RTD/TC input | Relay | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TCN-4N-S | — | AUTONICS | Temperature controller | TCN Series | PID W 48 x H 24 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TCN-4N-V | — | AUTONICS | Temperature controller | TCN Series | PID W 48 x H 24 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TCN-4N-C | — | AUTONICS | Temperature controller | TCN Series | PID W 48 x H 24 mm panel mount | universal RTD/TC input | Current 4-20 mA | 100-240 VAC | Screw terminal | IP50 front | display + setting |
