Temperature Controller
Omron

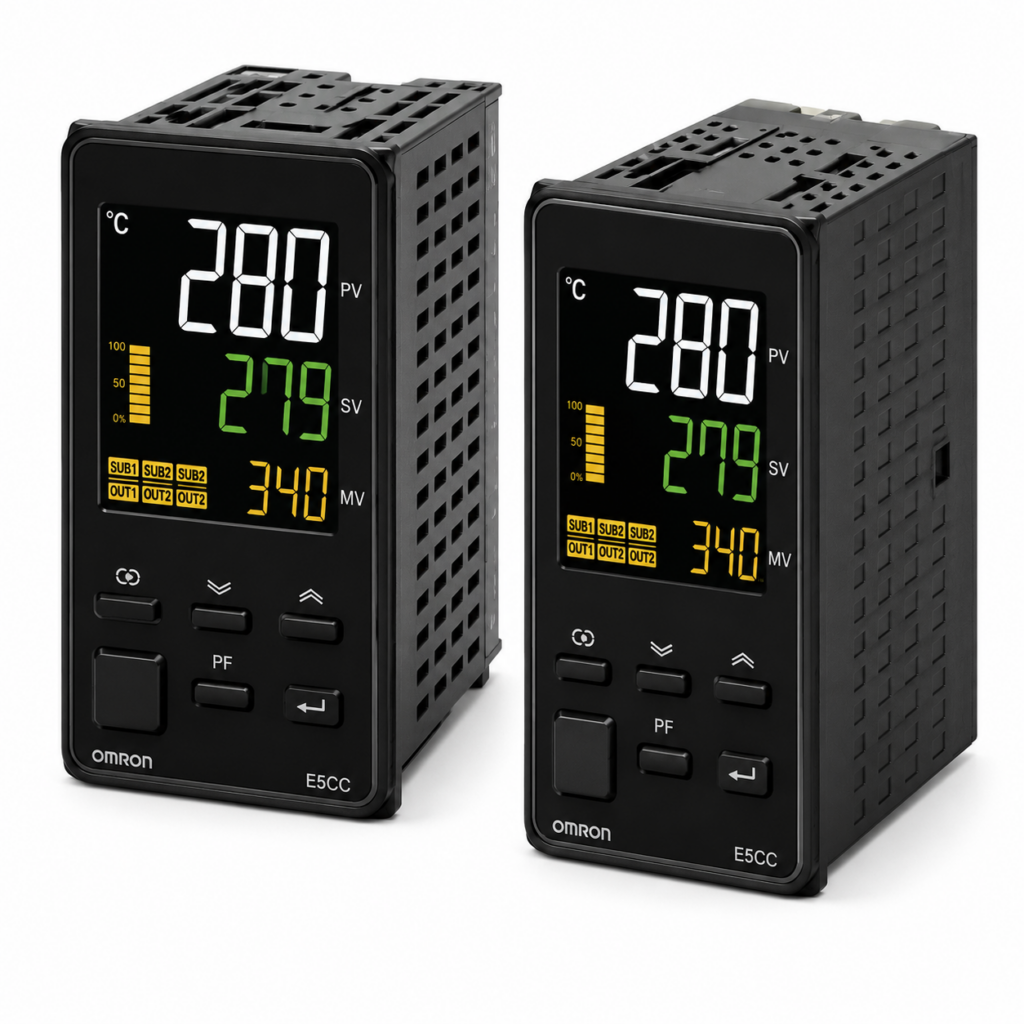

[OMRON] — E5EC-QR45DM Digital Temperature Controller (48x96mm, Voltage Pulse Output, 24VAC/VDC, Screw Terminal)
Family ID: OMRON-E5EC-QR-D-5M
48 x 96 mm. Large White PV Display That's Easier to Read. Easy to Use, from Model Selection to Setup and Operation. Control output 1: Voltage Pulse. Control output 2: Relay. Auxiliary outputs: 4. Power supply: 24VAC/VDC. Screw terminal blocks.
8 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| E5EC-QR45DM-000 | E5EC, Voltage Pulse+Relay, 4 aux, 24VAC/VDC, Screw, No options | OMRON | Size: 48x96mm | Control Output 1: Voltage Pulse | Control Output 2: Relay | Auxiliary Outputs: 4 | Power Supply: 24VAC/VDC | Terminal: Screw Terminal (with cover) | Input: Universal (M) | Option: No options | ||
| E5EC-QR45DM-004 | E5EC, Voltage Pulse+Relay, 4 aux, 24VAC/VDC, Screw, RS-485 + 2 event inputs | OMRON | Size: 48x96mm | Control Output 1: Voltage Pulse | Control Output 2: Relay | Auxiliary Outputs: 4 | Power Supply: 24VAC/VDC | Terminal: Screw Terminal (with cover) | Input: Universal (M) | Option: RS-485 + 2 event inputs | ||
| E5EC-QR45DM-005 | E5EC, Voltage Pulse+Relay, 4 aux, 24VAC/VDC, Screw, 4 event inputs | OMRON | Size: 48x96mm | Control Output 1: Voltage Pulse | Control Output 2: Relay | Auxiliary Outputs: 4 | Power Supply: 24VAC/VDC | Terminal: Screw Terminal (with cover) | Input: Universal (M) | Option: 4 event inputs | ||
| E5EC-QR45DM-009 | E5EC, Voltage Pulse+Relay, 4 aux, 24VAC/VDC, Screw, HB/HS alarm (for 3-phase heaters) + RS-485 + 2 event inputs | OMRON | Size: 48x96mm | Control Output 1: Voltage Pulse | Control Output 2: Relay | Auxiliary Outputs: 4 | Power Supply: 24VAC/VDC | Terminal: Screw Terminal (with cover) | Input: Universal (M) | Option: HB/HS alarm (for 3-phase heaters) + RS-485 + 2 event inputs | ||
| E5EC-QR45DM-010 | E5EC, Voltage Pulse+Relay, 4 aux, 24VAC/VDC, Screw, HB/HS alarm + 1 event input | OMRON | Size: 48x96mm | Control Output 1: Voltage Pulse | Control Output 2: Relay | Auxiliary Outputs: 4 | Power Supply: 24VAC/VDC | Terminal: Screw Terminal (with cover) | Input: Universal (M) | Option: HB/HS alarm + 1 event input | ||
| E5EC-QR45DM-011 | E5EC, Voltage Pulse+Relay, 4 aux, 24VAC/VDC, Screw, HB/HS alarm + 1 event input + 6 event inputs total | OMRON | Size: 48x96mm | Control Output 1: Voltage Pulse | Control Output 2: Relay | Auxiliary Outputs: 4 | Power Supply: 24VAC/VDC | Terminal: Screw Terminal (with cover) | Input: Universal (M) | Option: HB/HS alarm + 1 event input + 6 event inputs total | ||
| E5EC-QR45DM-013 | E5EC, Voltage Pulse+Relay, 4 aux, 24VAC/VDC, Screw, 6 event inputs + Remote SP + Transfer output | OMRON | Size: 48x96mm | Control Output 1: Voltage Pulse | Control Output 2: Relay | Auxiliary Outputs: 4 | Power Supply: 24VAC/VDC | Terminal: Screw Terminal (with cover) | Input: Universal (M) | Option: 6 event inputs + Remote SP + Transfer output | ||
| E5EC-QR45DM-014 | E5EC, Voltage Pulse+Relay, 4 aux, 24VAC/VDC, Screw, RS-485 + 4 event inputs + Remote SP + Transfer output | OMRON | Size: 48x96mm | Control Output 1: Voltage Pulse | Control Output 2: Relay | Auxiliary Outputs: 4 | Power Supply: 24VAC/VDC | Terminal: Screw Terminal (with cover) | Input: Universal (M) | Option: RS-485 + 4 event inputs + Remote SP + Transfer output |
