Temperature Controller
Autonics

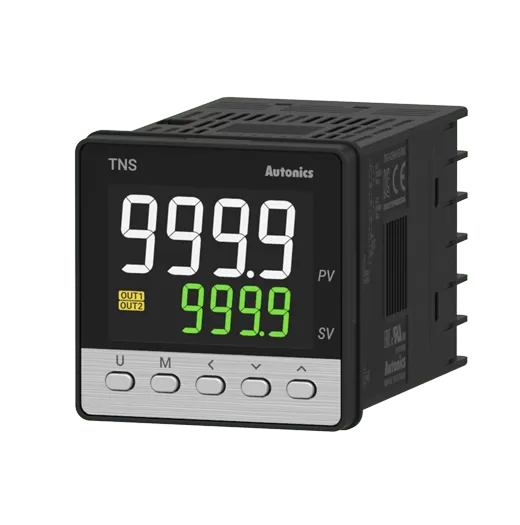

[AUTONICS] TN Series Two-Degree-of-Freedom PID Temperature Controllers
Family ID: AUTONICS-TN-SERIES
Two-degree-of-freedom (2-DOF) PID temperature controllers with optimized control algorithms. 50 ms high-speed sampling and ±0.2% display accuracy. 11-segment LCD display with 7-segment operating value display. Program control and fixed control models available. Universal RTD/thermocouple input. Multiple output options (relay, SSR drive, current 4-20 mA). Heating-cooling control, alarm, transmission, and communication options.
40 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-TN-4S-R | — | AUTONICS | Temperature controller | TN Series | PID W 48 x H 96 mm panel mount | universal RTD/TC input | Relay | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TN-4S-R4 | — | AUTONICS | Temperature controller | TN Series | PID W 48 x H 96 mm panel mount | universal RTD/TC input | Relay + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs | ||
| AUTONICS-TN-4S-S | — | AUTONICS | Temperature controller | TN Series | PID W 48 x H 96 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TN-4S-S4 | — | AUTONICS | Temperature controller | TN Series | PID W 48 x H 96 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs | ||
| AUTONICS-TN-4S-V | — | AUTONICS | Temperature controller | TN Series | PID W 48 x H 96 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TN-4S-V4 | — | AUTONICS | Temperature controller | TN Series | PID W 48 x H 96 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs | ||
| AUTONICS-TN-4S-C | — | AUTONICS | Temperature controller | TN Series | PID W 48 x H 96 mm panel mount | universal RTD/TC input | Current 4-20 mA | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TN-4S-C4 | — | AUTONICS | Temperature controller | TN Series | PID W 48 x H 96 mm panel mount | universal RTD/TC input | Current 4-20 mA + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs | ||
| AUTONICS-TN-4M-R | — | AUTONICS | Temperature controller | TN Series | PID W 48 x H 48 mm panel mount | universal RTD/TC input | Relay | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TN-4M-R4 | — | AUTONICS | Temperature controller | TN Series | PID W 48 x H 48 mm panel mount | universal RTD/TC input | Relay + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs | ||
| AUTONICS-TN-4M-S | — | AUTONICS | Temperature controller | TN Series | PID W 48 x H 48 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TN-4M-S4 | — | AUTONICS | Temperature controller | TN Series | PID W 48 x H 48 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs | ||
| AUTONICS-TN-4M-V | — | AUTONICS | Temperature controller | TN Series | PID W 48 x H 48 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TN-4M-V4 | — | AUTONICS | Temperature controller | TN Series | PID W 48 x H 48 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs | ||
| AUTONICS-TN-4M-C | — | AUTONICS | Temperature controller | TN Series | PID W 48 x H 48 mm panel mount | universal RTD/TC input | Current 4-20 mA | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TN-4M-C4 | — | AUTONICS | Temperature controller | TN Series | PID W 48 x H 48 mm panel mount | universal RTD/TC input | Current 4-20 mA + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs | ||
| AUTONICS-TN-4Y-R | — | AUTONICS | Temperature controller | TN Series | PID W 72 x H 36 mm panel mount | universal RTD/TC input | Relay | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TN-4Y-R4 | — | AUTONICS | Temperature controller | TN Series | PID W 72 x H 36 mm panel mount | universal RTD/TC input | Relay + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs | ||
| AUTONICS-TN-4Y-S | — | AUTONICS | Temperature controller | TN Series | PID W 72 x H 36 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TN-4Y-S4 | — | AUTONICS | Temperature controller | TN Series | PID W 72 x H 36 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs | ||
| AUTONICS-TN-4Y-V | — | AUTONICS | Temperature controller | TN Series | PID W 72 x H 36 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TN-4Y-V4 | — | AUTONICS | Temperature controller | TN Series | PID W 72 x H 36 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs | ||
| AUTONICS-TN-4Y-C | — | AUTONICS | Temperature controller | TN Series | PID W 72 x H 36 mm panel mount | universal RTD/TC input | Current 4-20 mA | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TN-4Y-C4 | — | AUTONICS | Temperature controller | TN Series | PID W 72 x H 36 mm panel mount | universal RTD/TC input | Current 4-20 mA + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs | ||
| AUTONICS-TN-4W-R | — | AUTONICS | Temperature controller | TN Series | PID W 96 x H 48 mm panel mount | universal RTD/TC input | Relay | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TN-4W-R4 | — | AUTONICS | Temperature controller | TN Series | PID W 96 x H 48 mm panel mount | universal RTD/TC input | Relay + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs | ||
| AUTONICS-TN-4W-S | — | AUTONICS | Temperature controller | TN Series | PID W 96 x H 48 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TN-4W-S4 | — | AUTONICS | Temperature controller | TN Series | PID W 96 x H 48 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs | ||
| AUTONICS-TN-4W-V | — | AUTONICS | Temperature controller | TN Series | PID W 96 x H 48 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TN-4W-V4 | — | AUTONICS | Temperature controller | TN Series | PID W 96 x H 48 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs | ||
| AUTONICS-TN-4W-C | — | AUTONICS | Temperature controller | TN Series | PID W 96 x H 48 mm panel mount | universal RTD/TC input | Current 4-20 mA | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TN-4W-C4 | — | AUTONICS | Temperature controller | TN Series | PID W 96 x H 48 mm panel mount | universal RTD/TC input | Current 4-20 mA + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs | ||
| AUTONICS-TN-4N-R | — | AUTONICS | Temperature controller | TN Series | PID W 48 x H 24 mm panel mount | universal RTD/TC input | Relay | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TN-4N-R4 | — | AUTONICS | Temperature controller | TN Series | PID W 48 x H 24 mm panel mount | universal RTD/TC input | Relay + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs | ||
| AUTONICS-TN-4N-S | — | AUTONICS | Temperature controller | TN Series | PID W 48 x H 24 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TN-4N-S4 | — | AUTONICS | Temperature controller | TN Series | PID W 48 x H 24 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs | ||
| AUTONICS-TN-4N-V | — | AUTONICS | Temperature controller | TN Series | PID W 48 x H 24 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TN-4N-V4 | — | AUTONICS | Temperature controller | TN Series | PID W 48 x H 24 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs | ||
| AUTONICS-TN-4N-C | — | AUTONICS | Temperature controller | TN Series | PID W 48 x H 24 mm panel mount | universal RTD/TC input | Current 4-20 mA | 100-240 VAC | Screw terminal | IP50 front | display + setting | ||
| AUTONICS-TN-4N-C4 | — | AUTONICS | Temperature controller | TN Series | PID W 48 x H 24 mm panel mount | universal RTD/TC input | Current 4-20 mA + 4 alarms | 100-240 VAC | Screw terminal | IP50 front | display + setting + 4 alarm outputs |
