![[CP SYSTEM] — Shift Chain ST095E Enclosed Type Cable Carrier (Pitch 95, Inside Width 100-200mm, BR R150-R400)](https://img.prosourcemro.com/2026/05/002-179-1024x819.png)
Cable Carriers
CP SYSTEM

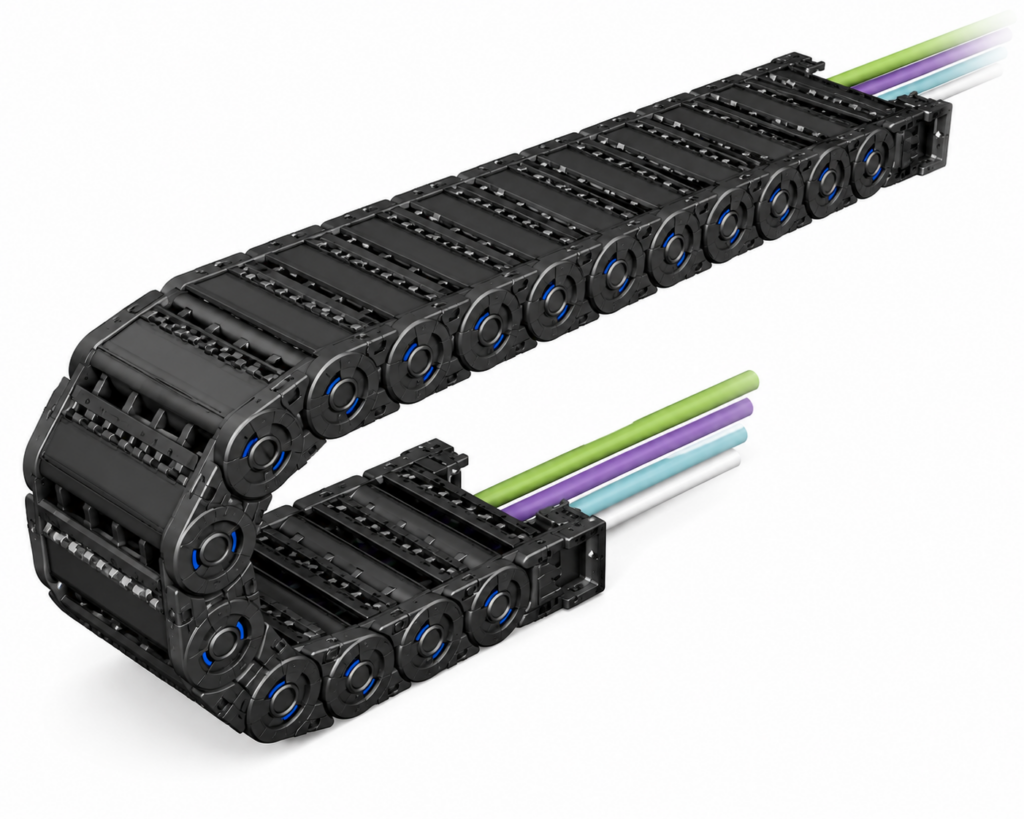

[CP SYSTEM] — Shift Chain ST095E Enclosed Type Cable Carrier (Pitch 95, Inside Width 100-200mm, BR R150-R400)
Family ID: CPS-SHIFT-095E
Shift Chain Enclosed Type ST095E, fully enclosed cable & hose carrier. The Free End Bracket can be fully enclosed by inserting a Steel Plate. Bending Radius is determined by each interchangeable 'BR' unit inserted into the side band. Pitch 95mm. Inside width 100-200mm; bending radius R150-R400. Material CPS-Amide (PA6+G.F). Max speed 6 m/s, acceleration 12 m/s². Temperature -30 to +130℃. ESD/UV available. Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3. Steel Plate, length and divider/separator made-to-order. Certified CE, ATEX(Ex), RoHS2.
25 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| ST095E.100.R150 | Shift Chain Enclosed ST095E, inside width 100mm, bending radius R150mm | CP SYSTEM | Model: ST095E | Type: Enclosed (E) | Pitch: 95mm | Inside Width (C): 100mm | Outer Width (A): 138mm | Outer Height (B): 82mm | Inner Height (D): 55mm | Bending Radius (R): 150mm | Weight: 3.55 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095E.100.R200 | Shift Chain Enclosed ST095E, inside width 100mm, bending radius R200mm | CP SYSTEM | Model: ST095E | Type: Enclosed (E) | Pitch: 95mm | Inside Width (C): 100mm | Outer Width (A): 138mm | Outer Height (B): 82mm | Inner Height (D): 55mm | Bending Radius (R): 200mm | Weight: 3.55 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095E.100.R230 | Shift Chain Enclosed ST095E, inside width 100mm, bending radius R230mm | CP SYSTEM | Model: ST095E | Type: Enclosed (E) | Pitch: 95mm | Inside Width (C): 100mm | Outer Width (A): 138mm | Outer Height (B): 82mm | Inner Height (D): 55mm | Bending Radius (R): 230mm | Weight: 3.55 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095E.100.R280 | Shift Chain Enclosed ST095E, inside width 100mm, bending radius R280mm | CP SYSTEM | Model: ST095E | Type: Enclosed (E) | Pitch: 95mm | Inside Width (C): 100mm | Outer Width (A): 138mm | Outer Height (B): 82mm | Inner Height (D): 55mm | Bending Radius (R): 280mm | Weight: 3.55 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095E.100.R400 | Shift Chain Enclosed ST095E, inside width 100mm, bending radius R400mm | CP SYSTEM | Model: ST095E | Type: Enclosed (E) | Pitch: 95mm | Inside Width (C): 100mm | Outer Width (A): 138mm | Outer Height (B): 82mm | Inner Height (D): 55mm | Bending Radius (R): 400mm | Weight: 3.55 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095E.125.R150 | Shift Chain Enclosed ST095E, inside width 125mm, bending radius R150mm | CP SYSTEM | Model: ST095E | Type: Enclosed (E) | Pitch: 95mm | Inside Width (C): 125mm | Outer Width (A): 163mm | Outer Height (B): 82mm | Inner Height (D): 55mm | Bending Radius (R): 150mm | Weight: 3.79 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095E.125.R200 | Shift Chain Enclosed ST095E, inside width 125mm, bending radius R200mm | CP SYSTEM | Model: ST095E | Type: Enclosed (E) | Pitch: 95mm | Inside Width (C): 125mm | Outer Width (A): 163mm | Outer Height (B): 82mm | Inner Height (D): 55mm | Bending Radius (R): 200mm | Weight: 3.79 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095E.125.R230 | Shift Chain Enclosed ST095E, inside width 125mm, bending radius R230mm | CP SYSTEM | Model: ST095E | Type: Enclosed (E) | Pitch: 95mm | Inside Width (C): 125mm | Outer Width (A): 163mm | Outer Height (B): 82mm | Inner Height (D): 55mm | Bending Radius (R): 230mm | Weight: 3.79 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095E.125.R280 | Shift Chain Enclosed ST095E, inside width 125mm, bending radius R280mm | CP SYSTEM | Model: ST095E | Type: Enclosed (E) | Pitch: 95mm | Inside Width (C): 125mm | Outer Width (A): 163mm | Outer Height (B): 82mm | Inner Height (D): 55mm | Bending Radius (R): 280mm | Weight: 3.79 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095E.125.R400 | Shift Chain Enclosed ST095E, inside width 125mm, bending radius R400mm | CP SYSTEM | Model: ST095E | Type: Enclosed (E) | Pitch: 95mm | Inside Width (C): 125mm | Outer Width (A): 163mm | Outer Height (B): 82mm | Inner Height (D): 55mm | Bending Radius (R): 400mm | Weight: 3.79 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095E.150.R150 | Shift Chain Enclosed ST095E, inside width 150mm, bending radius R150mm | CP SYSTEM | Model: ST095E | Type: Enclosed (E) | Pitch: 95mm | Inside Width (C): 150mm | Outer Width (A): 188mm | Outer Height (B): 82mm | Inner Height (D): 55mm | Bending Radius (R): 150mm | Weight: 4.04 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095E.150.R200 | Shift Chain Enclosed ST095E, inside width 150mm, bending radius R200mm | CP SYSTEM | Model: ST095E | Type: Enclosed (E) | Pitch: 95mm | Inside Width (C): 150mm | Outer Width (A): 188mm | Outer Height (B): 82mm | Inner Height (D): 55mm | Bending Radius (R): 200mm | Weight: 4.04 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095E.150.R230 | Shift Chain Enclosed ST095E, inside width 150mm, bending radius R230mm | CP SYSTEM | Model: ST095E | Type: Enclosed (E) | Pitch: 95mm | Inside Width (C): 150mm | Outer Width (A): 188mm | Outer Height (B): 82mm | Inner Height (D): 55mm | Bending Radius (R): 230mm | Weight: 4.04 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095E.150.R280 | Shift Chain Enclosed ST095E, inside width 150mm, bending radius R280mm | CP SYSTEM | Model: ST095E | Type: Enclosed (E) | Pitch: 95mm | Inside Width (C): 150mm | Outer Width (A): 188mm | Outer Height (B): 82mm | Inner Height (D): 55mm | Bending Radius (R): 280mm | Weight: 4.04 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095E.150.R400 | Shift Chain Enclosed ST095E, inside width 150mm, bending radius R400mm | CP SYSTEM | Model: ST095E | Type: Enclosed (E) | Pitch: 95mm | Inside Width (C): 150mm | Outer Width (A): 188mm | Outer Height (B): 82mm | Inner Height (D): 55mm | Bending Radius (R): 400mm | Weight: 4.04 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095E.175.R150 | Shift Chain Enclosed ST095E, inside width 175mm, bending radius R150mm | CP SYSTEM | Model: ST095E | Type: Enclosed (E) | Pitch: 95mm | Inside Width (C): 175mm | Outer Width (A): 213mm | Outer Height (B): 82mm | Inner Height (D): 55mm | Bending Radius (R): 150mm | Weight: 4.29 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095E.175.R200 | Shift Chain Enclosed ST095E, inside width 175mm, bending radius R200mm | CP SYSTEM | Model: ST095E | Type: Enclosed (E) | Pitch: 95mm | Inside Width (C): 175mm | Outer Width (A): 213mm | Outer Height (B): 82mm | Inner Height (D): 55mm | Bending Radius (R): 200mm | Weight: 4.29 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095E.175.R230 | Shift Chain Enclosed ST095E, inside width 175mm, bending radius R230mm | CP SYSTEM | Model: ST095E | Type: Enclosed (E) | Pitch: 95mm | Inside Width (C): 175mm | Outer Width (A): 213mm | Outer Height (B): 82mm | Inner Height (D): 55mm | Bending Radius (R): 230mm | Weight: 4.29 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095E.175.R280 | Shift Chain Enclosed ST095E, inside width 175mm, bending radius R280mm | CP SYSTEM | Model: ST095E | Type: Enclosed (E) | Pitch: 95mm | Inside Width (C): 175mm | Outer Width (A): 213mm | Outer Height (B): 82mm | Inner Height (D): 55mm | Bending Radius (R): 280mm | Weight: 4.29 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095E.175.R400 | Shift Chain Enclosed ST095E, inside width 175mm, bending radius R400mm | CP SYSTEM | Model: ST095E | Type: Enclosed (E) | Pitch: 95mm | Inside Width (C): 175mm | Outer Width (A): 213mm | Outer Height (B): 82mm | Inner Height (D): 55mm | Bending Radius (R): 400mm | Weight: 4.29 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095E.200.R150 | Shift Chain Enclosed ST095E, inside width 200mm, bending radius R150mm | CP SYSTEM | Model: ST095E | Type: Enclosed (E) | Pitch: 95mm | Inside Width (C): 200mm | Outer Width (A): 238mm | Outer Height (B): 82mm | Inner Height (D): 55mm | Bending Radius (R): 150mm | Weight: 4.53 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095E.200.R200 | Shift Chain Enclosed ST095E, inside width 200mm, bending radius R200mm | CP SYSTEM | Model: ST095E | Type: Enclosed (E) | Pitch: 95mm | Inside Width (C): 200mm | Outer Width (A): 238mm | Outer Height (B): 82mm | Inner Height (D): 55mm | Bending Radius (R): 200mm | Weight: 4.53 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095E.200.R230 | Shift Chain Enclosed ST095E, inside width 200mm, bending radius R230mm | CP SYSTEM | Model: ST095E | Type: Enclosed (E) | Pitch: 95mm | Inside Width (C): 200mm | Outer Width (A): 238mm | Outer Height (B): 82mm | Inner Height (D): 55mm | Bending Radius (R): 230mm | Weight: 4.53 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095E.200.R280 | Shift Chain Enclosed ST095E, inside width 200mm, bending radius R280mm | CP SYSTEM | Model: ST095E | Type: Enclosed (E) | Pitch: 95mm | Inside Width (C): 200mm | Outer Width (A): 238mm | Outer Height (B): 82mm | Inner Height (D): 55mm | Bending Radius (R): 280mm | Weight: 4.53 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 | ||
| ST095E.200.R400 | Shift Chain Enclosed ST095E, inside width 200mm, bending radius R400mm | CP SYSTEM | Model: ST095E | Type: Enclosed (E) | Pitch: 95mm | Inside Width (C): 200mm | Outer Width (A): 238mm | Outer Height (B): 82mm | Inner Height (D): 55mm | Bending Radius (R): 400mm | Weight: 4.53 kg/m | Material: CPS-Amide (PA6+G.F) | Max Speed: 6 m/s | Max Acceleration: 12 m/s² | Temperature: -30 ~ +130℃ | Special Production: ESD, UV (optional) | Bracket: FEB (Steel Plate enclosure) or Steel End Bracket (SEB), B1/B2/B3 (made-to-order) | Steel Plate: made-to-order | Length: made-to-order | Divider/Separator: made-to-order | Certificate: CE, ATEX(Ex), RoHS2 |
