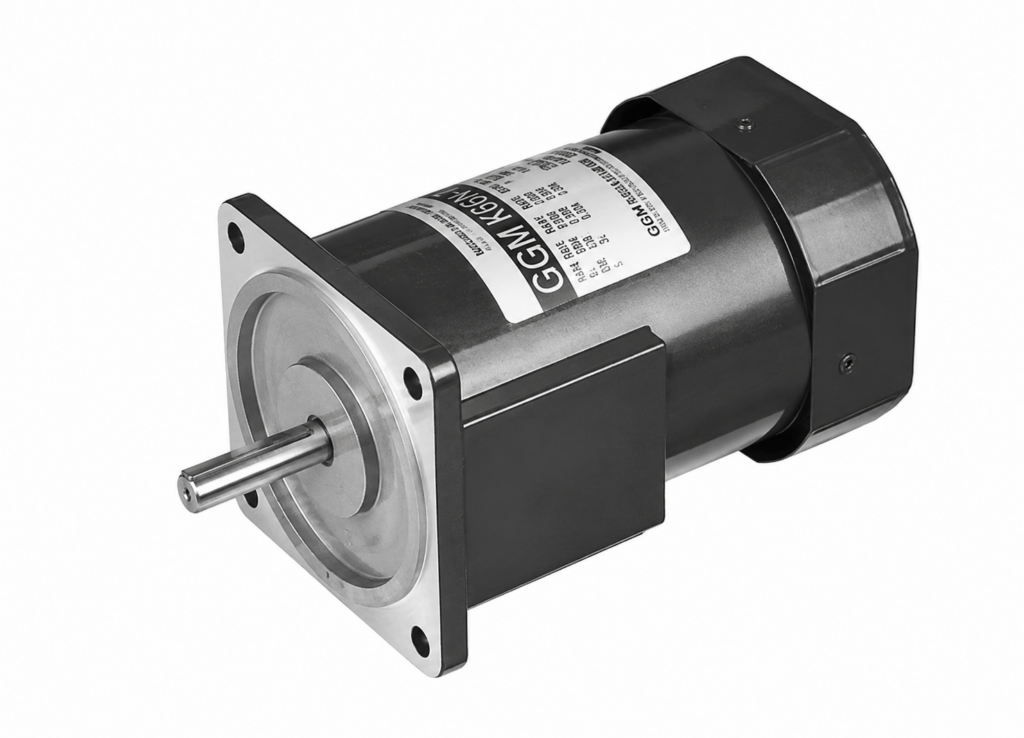

[GGM] — 90W □90mm 2-Pole Three-phase AC Induction Motor (High-Speed, Lead Wire)
AC Geared Motors GGM

[GGM] — 90W □90mm 2-Pole Three-phase AC Induction Motor (High-Speed, Lead Wire)

Family ID: GGM-K9I90F2P-3P

GGM 90W three-phase AC induction motor, □90mm frame, 2-pole high-speed (2700rpm@50Hz / 3200rpm@60Hz), continuous rating. Lead wire type, straight (S) shaft. Three-phase 220/230/380/440V.

3 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
K9IS90FH-2P GGM 90W 2-pole Three-phase induction motor, 220/230V, Straight shaft, Lead wire GGM Frame: □90mm | Output: 90W | Poles: 2 (high-speed) | Phase: Three-phase | Shaft: Straight (S) | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 220/230V | Operating Points: 220V/50Hz: 0.53A, Start 1.14/11.40 N·m/kgf·cm, Rated 0.32/3.20 N·m/kgf·cm, 2700rpm | 220V/60Hz: 0.52A, Start 0.93/9.30 N·m/kgf·cm, Rated 0.27/2.70 N·m/kgf·cm, 3200rpm | 230V/50Hz: 0.56A, Start 1.24/12.40 N·m/kgf·cm, Rated 0.32/3.20 N·m/kgf·cm, 2700rpm | 230V/60Hz: 0.54A, Start 0.99/9.90 N·m/kgf·cm, Rated 0.27/2.70 N·m/kgf·cm, 3200rpm | Speed basis: 2-pole synchronous 3000rpm@50Hz / 3600rpm@60Hz | Weight: 2.56kg
K9IS90FM-2P GGM 90W 2-pole Three-phase induction motor, 380V, Straight shaft, Lead wire GGM Frame: □90mm | Output: 90W | Poles: 2 (high-speed) | Phase: Three-phase | Shaft: Straight (S) | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 380V | Operating Points: 380V/50Hz: 0.30A, Start 1.08/10.80 N·m/kgf·cm, Rated 0.32/3.20 N·m/kgf·cm, 2700rpm | 380V/60Hz: 0.30A, Start 0.89/8.90 N·m/kgf·cm, Rated 0.27/2.70 N·m/kgf·cm, 3200rpm | Speed basis: 2-pole synchronous 3000rpm@50Hz / 3600rpm@60Hz | Weight: 2.56kg
K9IS90FZ-2P GGM 90W 2-pole Three-phase induction motor, 440V, Straight shaft, Lead wire GGM Frame: □90mm | Output: 90W | Poles: 2 (high-speed) | Phase: Three-phase | Shaft: Straight (S) | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 440V | Operating Points: 440V/50Hz: 0.26A, Start 1.08/10.80 N·m/kgf·cm, Rated 0.32/3.20 N·m/kgf·cm, 2700rpm | 440V/60Hz: 0.26A, Start 0.87/8.70 N·m/kgf·cm, Rated 0.27/2.70 N·m/kgf·cm, 3200rpm | Speed basis: 2-pole synchronous 3000rpm@50Hz / 3600rpm@60Hz | Weight: 2.56kg
