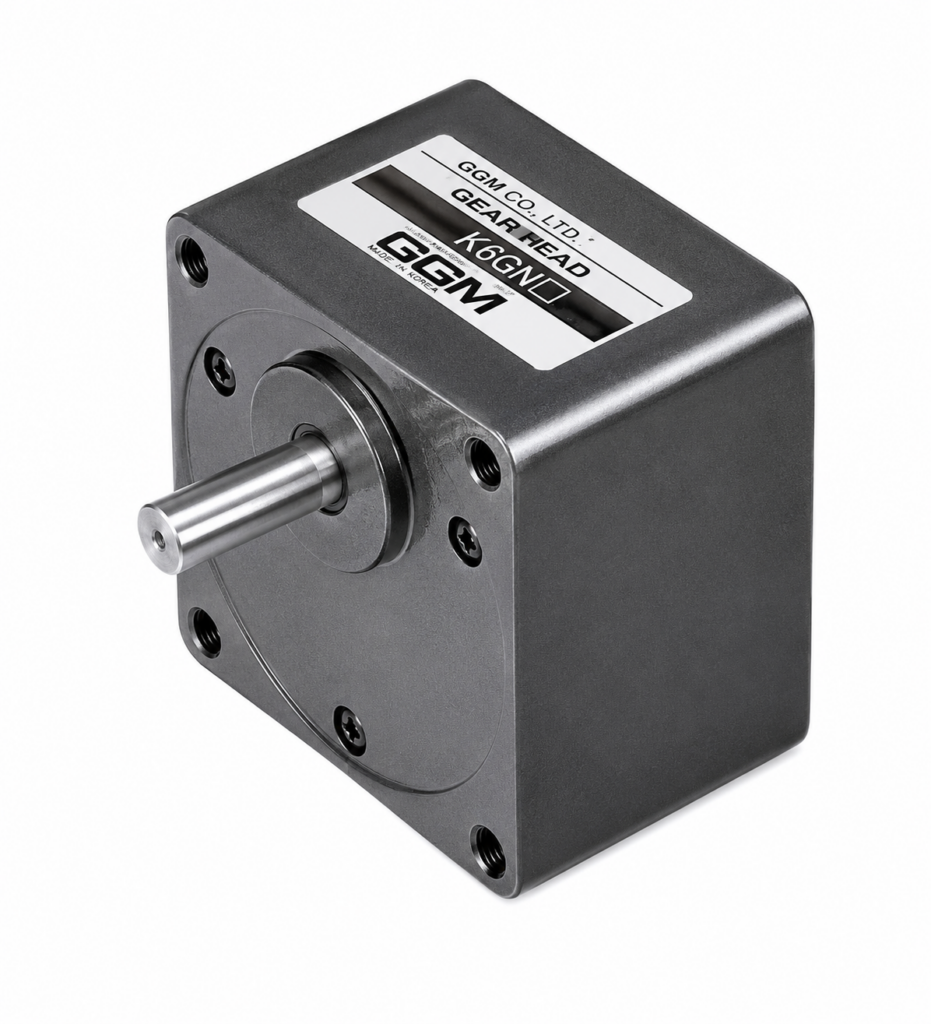

[GGM] — K6G□C Gear Head for 6W Motor (□60mm, Ball Bearing + Metal Bearing, 1/3–1/250, incl. Decimal (K6G10BX))
AC Geared Motors GGM

[GGM] — K6G□C Gear Head for 6W Motor (□60mm, Ball Bearing + Metal Bearing, 1/3–1/250, incl. Decimal (K6G10BX))

Family ID: GGM-K6G-C

GGM gear head converts motor speed/torque by gear ratio. Helical-gear precision machining lowers noise approx. 10 dB vs conventional. Ball Bearing + Metal Bearing (C) type, ratios 1/3–1/250 (25 steps); dedicated to □60mm 6W pinion-shaft motor (K6□G), matching face/teeth only. Includes decimal gear head K6G10BX (1/10 intermediate reducer) for ratios beyond 1/200 (speed ÷10; permissible torque unchanged).

26 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
K6G3C GGM gear head K6G3C — ratio 1/3, Ball Bearing + Metal Bearing, for 6W motor GGM Ratio: 1/3 | Bearing: Ball Bearing + Metal Bearing (C) | Output Torque: 0.11N·m(1.1kgf·cm)@50Hz / 0.1N·m(1kgf·cm)@60Hz | Output Speed: 500rpm@50Hz / 600rpm@60Hz | Gearhead Length L: 30mm | Mounting Bolt: M4 P0.7 X 50 | Weight: 0.26kg | Frame: □60mm | Applicable Motor: K6□G (6W, pinion shaft) | Type: Helical, low-noise
K6G3.6C GGM gear head K6G3.6C — ratio 1/3.6, Ball Bearing + Metal Bearing, for 6W motor GGM Ratio: 1/3.6 | Bearing: Ball Bearing + Metal Bearing (C) | Output Torque: 0.14N·m(1.4kgf·cm)@50Hz / 0.12N·m(1.2kgf·cm)@60Hz | Output Speed: 416rpm@50Hz / 500rpm@60Hz | Gearhead Length L: 30mm | Mounting Bolt: M4 P0.7 X 50 | Weight: 0.26kg | Frame: □60mm | Applicable Motor: K6□G (6W, pinion shaft) | Type: Helical, low-noise
K6G5C GGM gear head K6G5C — ratio 1/5, Ball Bearing + Metal Bearing, for 6W motor GGM Ratio: 1/5 | Bearing: Ball Bearing + Metal Bearing (C) | Output Torque: 0.19N·m(1.9kgf·cm)@50Hz / 0.16N·m(1.6kgf·cm)@60Hz | Output Speed: 300rpm@50Hz / 360rpm@60Hz | Gearhead Length L: 30mm | Mounting Bolt: M4 P0.7 X 50 | Weight: 0.26kg | Frame: □60mm | Applicable Motor: K6□G (6W, pinion shaft) | Type: Helical, low-noise
K6G6C GGM gear head K6G6C — ratio 1/6, Ball Bearing + Metal Bearing, for 6W motor GGM Ratio: 1/6 | Bearing: Ball Bearing + Metal Bearing (C) | Output Torque: 0.23N·m(2.3kgf·cm)@50Hz / 0.19N·m(1.9kgf·cm)@60Hz | Output Speed: 250rpm@50Hz / 300rpm@60Hz | Gearhead Length L: 30mm | Mounting Bolt: M4 P0.7 X 50 | Weight: 0.26kg | Frame: □60mm | Applicable Motor: K6□G (6W, pinion shaft) | Type: Helical, low-noise
K6G7.5C GGM gear head K6G7.5C — ratio 1/7.5, Ball Bearing + Metal Bearing, for 6W motor GGM Ratio: 1/7.5 | Bearing: Ball Bearing + Metal Bearing (C) | Output Torque: 0.29N·m(2.9kgf·cm)@50Hz / 0.24N·m(2.4kgf·cm)@60Hz | Output Speed: 200rpm@50Hz / 240rpm@60Hz | Gearhead Length L: 30mm | Mounting Bolt: M4 P0.7 X 50 | Weight: 0.26kg | Frame: □60mm | Applicable Motor: K6□G (6W, pinion shaft) | Type: Helical, low-noise
K6G9C GGM gear head K6G9C — ratio 1/9, Ball Bearing + Metal Bearing, for 6W motor GGM Ratio: 1/9 | Bearing: Ball Bearing + Metal Bearing (C) | Output Torque: 0.34N·m(3.4kgf·cm)@50Hz / 0.29N·m(2.9kgf·cm)@60Hz | Output Speed: 166rpm@50Hz / 200rpm@60Hz | Gearhead Length L: 30mm | Mounting Bolt: M4 P0.7 X 50 | Weight: 0.26kg | Frame: □60mm | Applicable Motor: K6□G (6W, pinion shaft) | Type: Helical, low-noise
K6G10C GGM gear head K6G10C — ratio 1/10, Ball Bearing + Metal Bearing, for 6W motor GGM Ratio: 1/10 | Bearing: Ball Bearing + Metal Bearing (C) | Output Torque: 0.38N·m(3.8kgf·cm)@50Hz / 0.32N·m(3.2kgf·cm)@60Hz | Output Speed: 150rpm@50Hz / 180rpm@60Hz | Gearhead Length L: 30mm | Mounting Bolt: M4 P0.7 X 50 | Weight: 0.26kg | Frame: □60mm | Applicable Motor: K6□G (6W, pinion shaft) | Type: Helical, low-noise
K6G12.5C GGM gear head K6G12.5C — ratio 1/12.5, Ball Bearing + Metal Bearing, for 6W motor GGM Ratio: 1/12.5 | Bearing: Ball Bearing + Metal Bearing (C) | Output Torque: 0.48N·m(4.8kgf·cm)@50Hz / 0.41N·m(4.1kgf·cm)@60Hz | Output Speed: 120rpm@50Hz / 144rpm@60Hz | Gearhead Length L: 30mm | Mounting Bolt: M4 P0.7 X 50 | Weight: 0.26kg | Frame: □60mm | Applicable Motor: K6□G (6W, pinion shaft) | Type: Helical, low-noise
K6G15C GGM gear head K6G15C — ratio 1/15, Ball Bearing + Metal Bearing, for 6W motor GGM Ratio: 1/15 | Bearing: Ball Bearing + Metal Bearing (C) | Output Torque: 0.57N·m(5.7kgf·cm)@50Hz / 0.49N·m(4.9kgf·cm)@60Hz | Output Speed: 100rpm@50Hz / 120rpm@60Hz | Gearhead Length L: 30mm | Mounting Bolt: M4 P0.7 X 50 | Weight: 0.26kg | Frame: □60mm | Applicable Motor: K6□G (6W, pinion shaft) | Type: Helical, low-noise
K6G18C GGM gear head K6G18C — ratio 1/18, Ball Bearing + Metal Bearing, for 6W motor GGM Ratio: 1/18 | Bearing: Ball Bearing + Metal Bearing (C) | Output Torque: 0.69N·m(6.9kgf·cm)@50Hz / 0.58N·m(5.8kgf·cm)@60Hz | Output Speed: 83rpm@50Hz / 100rpm@60Hz | Gearhead Length L: 30mm | Mounting Bolt: M4 P0.7 X 50 | Weight: 0.26kg | Frame: □60mm | Applicable Motor: K6□G (6W, pinion shaft) | Type: Helical, low-noise
K6G20C GGM gear head K6G20C — ratio 1/20, Ball Bearing + Metal Bearing, for 6W motor GGM Ratio: 1/20 | Bearing: Ball Bearing + Metal Bearing (C) | Output Torque: 0.69N·m(6.9kgf·cm)@50Hz / 0.58N·m(5.8kgf·cm)@60Hz | Output Speed: 75rpm@50Hz / 90rpm@60Hz | Gearhead Length L: 40mm | Mounting Bolt: M4 P0.7 X 60 | Weight: 0.33kg | Frame: □60mm | Applicable Motor: K6□G (6W, pinion shaft) | Type: Helical, low-noise
K6G25C GGM gear head K6G25C — ratio 1/25, Ball Bearing + Metal Bearing, for 6W motor GGM Ratio: 1/25 | Bearing: Ball Bearing + Metal Bearing (C) | Output Torque: 0.86N·m(8.6kgf·cm)@50Hz / 0.73N·m(7.3kgf·cm)@60Hz | Output Speed: 60rpm@50Hz / 72rpm@60Hz | Gearhead Length L: 40mm | Mounting Bolt: M4 P0.7 X 60 | Weight: 0.33kg | Frame: □60mm | Applicable Motor: K6□G (6W, pinion shaft) | Type: Helical, low-noise
K6G30C GGM gear head K6G30C — ratio 1/30, Ball Bearing + Metal Bearing, for 6W motor GGM Ratio: 1/30 | Bearing: Ball Bearing + Metal Bearing (C) | Output Torque: 1.03N·m(10.3kgf·cm)@50Hz / 0.87N·m(8.7kgf·cm)@60Hz | Output Speed: 50rpm@50Hz / 60rpm@60Hz | Gearhead Length L: 40mm | Mounting Bolt: M4 P0.7 X 60 | Weight: 0.33kg | Frame: □60mm | Applicable Motor: K6□G (6W, pinion shaft) | Type: Helical, low-noise
K6G36C GGM gear head K6G36C — ratio 1/36, Ball Bearing + Metal Bearing, for 6W motor GGM Ratio: 1/36 | Bearing: Ball Bearing + Metal Bearing (C) | Output Torque: 1.23N·m(12.3kgf·cm)@50Hz / 1.05N·m(10.5kgf·cm)@60Hz | Output Speed: 41rpm@50Hz / 50rpm@60Hz | Gearhead Length L: 40mm | Mounting Bolt: M4 P0.7 X 60 | Weight: 0.33kg | Frame: □60mm | Applicable Motor: K6□G (6W, pinion shaft) | Type: Helical, low-noise
K6G40C GGM gear head K6G40C — ratio 1/40, Ball Bearing + Metal Bearing, for 6W motor GGM Ratio: 1/40 | Bearing: Ball Bearing + Metal Bearing (C) | Output Torque: 1.37N·m(13.7kgf·cm)@50Hz / 1.17N·m(11.7kgf·cm)@60Hz | Output Speed: 37rpm@50Hz / 45rpm@60Hz | Gearhead Length L: 40mm | Mounting Bolt: M4 P0.7 X 60 | Weight: 0.33kg | Frame: □60mm | Applicable Motor: K6□G (6W, pinion shaft) | Type: Helical, low-noise
K6G50C GGM gear head K6G50C — ratio 1/50, Ball Bearing + Metal Bearing, for 6W motor GGM Ratio: 1/50 | Bearing: Ball Bearing + Metal Bearing (C) | Output Torque: 1.54N·m(15.4kgf·cm)@50Hz / 1.31N·m(13.1kgf·cm)@60Hz | Output Speed: 30rpm@50Hz / 36rpm@60Hz | Gearhead Length L: 40mm | Mounting Bolt: M4 P0.7 X 60 | Weight: 0.36kg | Frame: □60mm | Applicable Motor: K6□G (6W, pinion shaft) | Type: Helical, low-noise
K6G60C GGM gear head K6G60C — ratio 1/60, Ball Bearing + Metal Bearing, for 6W motor GGM Ratio: 1/60 | Bearing: Ball Bearing + Metal Bearing (C) | Output Torque: 1.85N·m(18.5kgf·cm)@50Hz / 1.57N·m(15.7kgf·cm)@60Hz | Output Speed: 25rpm@50Hz / 30rpm@60Hz | Gearhead Length L: 40mm | Mounting Bolt: M4 P0.7 X 60 | Weight: 0.36kg | Frame: □60mm | Applicable Motor: K6□G (6W, pinion shaft) | Type: Helical, low-noise
K6G75C GGM gear head K6G75C — ratio 1/75, Ball Bearing + Metal Bearing, for 6W motor GGM Ratio: 1/75 | Bearing: Ball Bearing + Metal Bearing (C) | Output Torque: 2.31N·m(23.1kgf·cm)@50Hz / 1.97N·m(19.7kgf·cm)@60Hz | Output Speed: 20rpm@50Hz / 24rpm@60Hz | Gearhead Length L: 40mm | Mounting Bolt: M4 P0.7 X 60 | Weight: 0.36kg | Frame: □60mm | Applicable Motor: K6□G (6W, pinion shaft) | Type: Helical, low-noise
K6G90C GGM gear head K6G90C — ratio 1/90, Ball Bearing + Metal Bearing, for 6W motor GGM Ratio: 1/90 | Bearing: Ball Bearing + Metal Bearing (C) | Output Torque: 2.78N·m(27.8kgf·cm)@50Hz / 2.36N·m(23.6kgf·cm)@60Hz | Output Speed: 16rpm@50Hz / 20rpm@60Hz | Gearhead Length L: 40mm | Mounting Bolt: M4 P0.7 X 60 | Weight: 0.36kg | Frame: □60mm | Applicable Motor: K6□G (6W, pinion shaft) | Type: Helical, low-noise
K6G100C GGM gear head K6G100C — ratio 1/100, Ball Bearing + Metal Bearing, for 6W motor GGM Ratio: 1/100 | Bearing: Ball Bearing + Metal Bearing (C) | Output Torque: 3N·m(30kgf·cm)@50Hz / 2.62N·m(26.2kgf·cm)@60Hz | Output Speed: 15rpm@50Hz / 18rpm@60Hz | Gearhead Length L: 40mm | Mounting Bolt: M4 P0.7 X 60 | Weight: 0.36kg | Frame: □60mm | Applicable Motor: K6□G (6W, pinion shaft) | Type: Helical, low-noise
K6G120C GGM gear head K6G120C — ratio 1/120, Ball Bearing + Metal Bearing, for 6W motor GGM Ratio: 1/120 | Bearing: Ball Bearing + Metal Bearing (C) | Output Torque: 3N·m(30kgf·cm)@50Hz / 3N·m(30kgf·cm)@60Hz | Output Speed: 12.5rpm@50Hz / 15rpm@60Hz | Gearhead Length L: 40mm | Mounting Bolt: M4 P0.7 X 60 | Weight: 0.36kg | Frame: □60mm | Applicable Motor: K6□G (6W, pinion shaft) | Type: Helical, low-noise
K6G150C GGM gear head K6G150C — ratio 1/150, Ball Bearing + Metal Bearing, for 6W motor GGM Ratio: 1/150 | Bearing: Ball Bearing + Metal Bearing (C) | Output Torque: 3N·m(30kgf·cm)@50Hz / 3N·m(30kgf·cm)@60Hz | Output Speed: 10rpm@50Hz / 12rpm@60Hz | Gearhead Length L: 40mm | Mounting Bolt: M4 P0.7 X 60 | Weight: 0.36kg | Frame: □60mm | Applicable Motor: K6□G (6W, pinion shaft) | Type: Helical, low-noise
K6G180C GGM gear head K6G180C — ratio 1/180, Ball Bearing + Metal Bearing, for 6W motor GGM Ratio: 1/180 | Bearing: Ball Bearing + Metal Bearing (C) | Output Torque: 3N·m(30kgf·cm)@50Hz / 3N·m(30kgf·cm)@60Hz | Output Speed: 8.3rpm@50Hz / 10rpm@60Hz | Gearhead Length L: 40mm | Mounting Bolt: M4 P0.7 X 60 | Weight: 0.36kg | Frame: □60mm | Applicable Motor: K6□G (6W, pinion shaft) | Type: Helical, low-noise
K6G200C GGM gear head K6G200C — ratio 1/200, Ball Bearing + Metal Bearing, for 6W motor GGM Ratio: 1/200 | Bearing: Ball Bearing + Metal Bearing (C) | Output Torque: 3N·m(30kgf·cm)@50Hz / 3N·m(30kgf·cm)@60Hz | Output Speed: 7.5rpm@50Hz / 9rpm@60Hz | Gearhead Length L: 40mm | Mounting Bolt: M4 P0.7 X 60 | Weight: 0.36kg | Frame: □60mm | Applicable Motor: K6□G (6W, pinion shaft) | Type: Helical, low-noise
K6G250C GGM gear head K6G250C — ratio 1/250, Ball Bearing + Metal Bearing, for 6W motor GGM Ratio: 1/250 | Bearing: Ball Bearing + Metal Bearing (C) | Output Torque: 3N·m(30kgf·cm)@50Hz / 3N·m(30kgf·cm)@60Hz | Output Speed: 6rpm@50Hz / 7.2rpm@60Hz | Gearhead Length L: 40mm | Mounting Bolt: M4 P0.7 X 60 | Weight: 0.36kg | Frame: □60mm | Applicable Motor: K6□G (6W, pinion shaft) | Type: Helical, low-noise
K6G10BX GGM decimal gear head K6G10BX — 1/10 intermediate reducer for 6W motor GGM Type: Decimal (intermediate) gear head 1/10 | Function: Inserted between motor and gear head; reduces speed to 1/10 | Permissible Torque: 3N·m (30kgf·cm) — not increased by decimal head | Use: For total ratios beyond 1/200 | Gearhead Length L: 26mm | Mounting Bolt: M4 P0.7 X 85 | Weight: 0.22kg | Frame: □60mm | Applicable Motor: K6□G (6W, pinion shaft)
