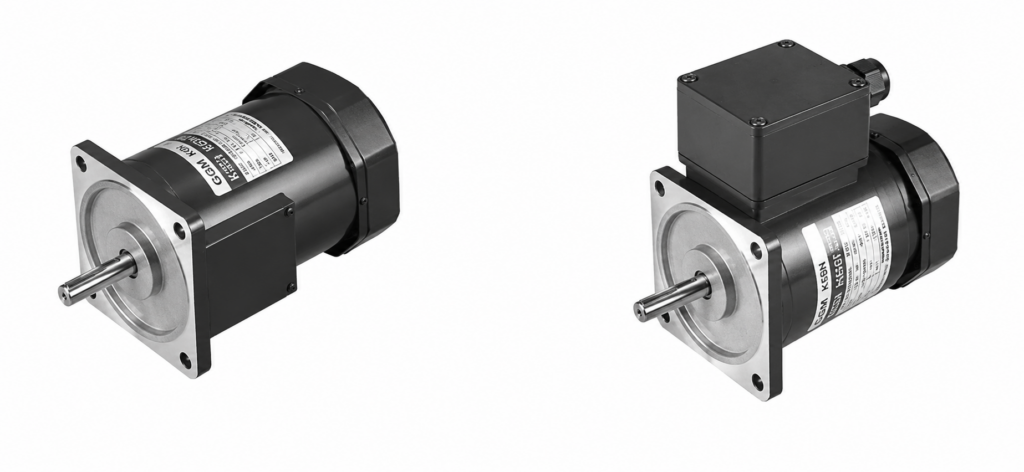

[GGM] — 180W □90mm Single-phase AC Induction Geared Motor (Lead wire)
AC Geared Motors GGM

[GGM] — 180W □90mm Single-phase AC Induction Geared Motor (Lead wire)

Family ID: GGM-K9I180F-1P

GGM 180W single-phase AC induction geared motor, □90mm frame, 4-pole, continuous rating. Lead wire type (300mm, UL Style 3271 AWG20). Straight (S) and pinion (P) shaft options. Single-phase 100/110/115/200/220/230/240V with built-in capacitor. Compatible with K9P power gearheads (sold separately).

10 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
K9IS180FJ GGM 180W single-phase 4-pole geared motor, 100V, Straight shaft, Lead wire GGM Frame: □90mm | Output: 180W | Poles: 4 | Phase: Single-phase | Shaft: Straight | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 100V | Condenser: 50µF | Operating Points: 100V/50Hz: 3.43A, Start 0.9/9 N·m/kgf·cm, Rated 1.35/13.5 N·m/kgf·cm, 1300rpm | 100V/60Hz: 3.7A, Start 1/10 N·m/kgf·cm, Rated 1.1/11 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant
K9IP180FJ GGM 180W single-phase 4-pole geared motor, 100V, Pinion shaft, Lead wire GGM Frame: □90mm | Output: 180W | Poles: 4 | Phase: Single-phase | Shaft: Pinion | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 100V | Condenser: 50µF | Operating Points: 100V/50Hz: 3.43A, Start 0.9/9 N·m/kgf·cm, Rated 1.35/13.5 N·m/kgf·cm, 1300rpm | 100V/60Hz: 3.7A, Start 1/10 N·m/kgf·cm, Rated 1.1/11 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant
K9IS180FU GGM 180W single-phase 4-pole geared motor, 110/115V, Straight shaft, Lead wire GGM Frame: □90mm | Output: 180W | Poles: 4 | Phase: Single-phase | Shaft: Straight | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 110/115V | Condenser: 30µF | Operating Points: 110V/60Hz: 2.85A, Start 0.8/8 N·m/kgf·cm, Rated 1.1/11 N·m/kgf·cm, 1600rpm | 115V/60Hz: 3.06A, Start 0.8/8 N·m/kgf·cm, Rated 1.1/11 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: E204632 (certified)
K9IP180FU GGM 180W single-phase 4-pole geared motor, 110/115V, Pinion shaft, Lead wire GGM Frame: □90mm | Output: 180W | Poles: 4 | Phase: Single-phase | Shaft: Pinion | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 110/115V | Condenser: 30µF | Operating Points: 110V/60Hz: 2.85A, Start 0.8/8 N·m/kgf·cm, Rated 1.1/11 N·m/kgf·cm, 1600rpm | 115V/60Hz: 3.06A, Start 0.8/8 N·m/kgf·cm, Rated 1.1/11 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: E204632 (certified)
K9IS180FL GGM 180W single-phase 4-pole geared motor, 200V, Straight shaft, Lead wire GGM Frame: □90mm | Output: 180W | Poles: 4 | Phase: Single-phase | Shaft: Straight | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 200V | Condenser: 12µF | Operating Points: 200V/50Hz: 1.47A, Start 0.73/7.3 N·m/kgf·cm, Rated 1.35/13.5 N·m/kgf·cm, 1300rpm | 200V/60Hz: 1.43A, Start 0.65/6.5 N·m/kgf·cm, Rated 1.1/11 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant
K9IP180FL GGM 180W single-phase 4-pole geared motor, 200V, Pinion shaft, Lead wire GGM Frame: □90mm | Output: 180W | Poles: 4 | Phase: Single-phase | Shaft: Pinion | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 200V | Condenser: 12µF | Operating Points: 200V/50Hz: 1.47A, Start 0.73/7.3 N·m/kgf·cm, Rated 1.35/13.5 N·m/kgf·cm, 1300rpm | 200V/60Hz: 1.43A, Start 0.65/6.5 N·m/kgf·cm, Rated 1.1/11 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant
K9IS180FC GGM 180W single-phase 4-pole geared motor, 220/230V, Straight shaft, Lead wire GGM Frame: □90mm | Output: 180W | Poles: 4 | Phase: Single-phase | Shaft: Straight | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 220/230V | Condenser: 8µF | Operating Points: 220V/50Hz: 1.58A, Start 0.7/7 N·m/kgf·cm, Rated 1.35/13.5 N·m/kgf·cm, 1300rpm | 220V/60Hz: 1.38A, Start 0.65/6.5 N·m/kgf·cm, Rated 1.1/11 N·m/kgf·cm, 1600rpm | 230V/50Hz: 1.7A, Start 0.75/7.5 N·m/kgf·cm, Rated 1.35/13.5 N·m/kgf·cm, 1300rpm | 230V/60Hz: 1.54A, Start 0.7/7 N·m/kgf·cm, Rated 1.1/11 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant
K9IP180FC GGM 180W single-phase 4-pole geared motor, 220/230V, Pinion shaft, Lead wire GGM Frame: □90mm | Output: 180W | Poles: 4 | Phase: Single-phase | Shaft: Pinion | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 220/230V | Condenser: 8µF | Operating Points: 220V/50Hz: 1.58A, Start 0.7/7 N·m/kgf·cm, Rated 1.35/13.5 N·m/kgf·cm, 1300rpm | 220V/60Hz: 1.38A, Start 0.65/6.5 N·m/kgf·cm, Rated 1.1/11 N·m/kgf·cm, 1600rpm | 230V/50Hz: 1.7A, Start 0.75/7.5 N·m/kgf·cm, Rated 1.35/13.5 N·m/kgf·cm, 1300rpm | 230V/60Hz: 1.54A, Start 0.7/7 N·m/kgf·cm, Rated 1.1/11 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant
K9IS180FD GGM 180W single-phase 4-pole geared motor, 240V, Straight shaft, Lead wire GGM Frame: □90mm | Output: 180W | Poles: 4 | Phase: Single-phase | Shaft: Straight | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 240V | Condenser: 8µF | Operating Points: 240V/50Hz: 1.2A, Start 0.8/8 N·m/kgf·cm, Rated 1.35/13.5 N·m/kgf·cm, 1300rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant
K9IP180FD GGM 180W single-phase 4-pole geared motor, 240V, Pinion shaft, Lead wire GGM Frame: □90mm | Output: 180W | Poles: 4 | Phase: Single-phase | Shaft: Pinion | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 240V | Condenser: 8µF | Operating Points: 240V/50Hz: 1.2A, Start 0.8/8 N·m/kgf·cm, Rated 1.35/13.5 N·m/kgf·cm, 1300rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant
