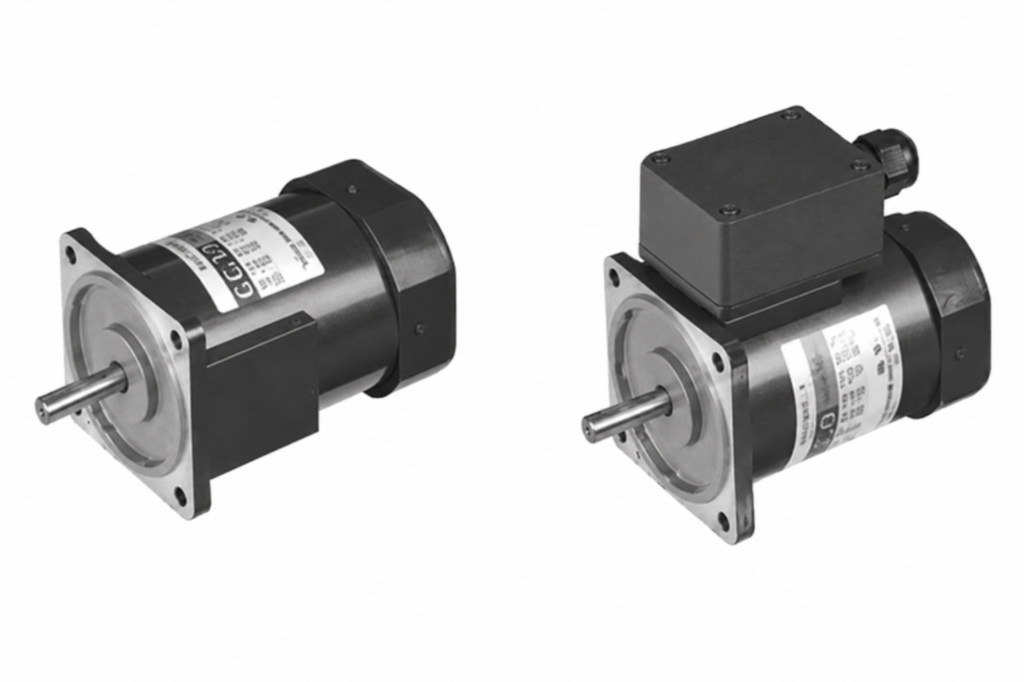

[GGM] — 90W □90mm Three-phase AC Induction Geared Motor (Lead wire)

Family ID: GGM-K9I90F-3P

GGM 90W three-phase AC induction geared motor, □90mm frame, 4-pole, continuous rating. Lead wire type (300mm, UL Style 3271 AWG20). Straight (S) and pinion (P) shaft options. Three-phase 200/220/230/380/400/415/440V. Compatible with K9P power gearheads (sold separately).

12 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code	Description	Brand	Spec
K9IS90FT	GGM 90W Three-phase geared motor, 200V, Straight shaft, Lead wire	GGM	Frame: □90mm \| Output: 90W \| Poles: 4 \| Phase: Three-phase \| Shaft: Straight \| Output Type: Lead wire type (300mm, UL Style 3271 AWG20) \| Rated Voltage: 200V \| Operating Points: 200V/50Hz: 0.79A, Start 2.25/22.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm \| 200V/60Hz: 0.72A, Start 1.75/17.5 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm \| Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz \| UL: not listed for this variant
K9IP90FT	GGM 90W Three-phase geared motor, 200V, Pinion shaft, Lead wire	GGM	Frame: □90mm \| Output: 90W \| Poles: 4 \| Phase: Three-phase \| Shaft: Pinion \| Output Type: Lead wire type (300mm, UL Style 3271 AWG20) \| Rated Voltage: 200V \| Operating Points: 200V/50Hz: 0.79A, Start 2.25/22.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm \| 200V/60Hz: 0.72A, Start 1.75/17.5 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm \| Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz \| UL: not listed for this variant
K9IS90FH	GGM 90W Three-phase geared motor, 220/230V, Straight shaft, Lead wire	GGM	Frame: □90mm \| Output: 90W \| Poles: 4 \| Phase: Three-phase \| Shaft: Straight \| Output Type: Lead wire type (300mm, UL Style 3271 AWG20) \| Rated Voltage: 220/230V \| Operating Points: 220V/50Hz: 0.72A, Start 2.35/23.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm \| 220V/60Hz: 0.63A, Start 1.8/18 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm \| 230V/50Hz: 0.86A, Start 2.45/24.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm \| 230V/60Hz: 0.66A, Start 1.95/19.5 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm \| Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz \| UL: E204632 (certified)
K9IP90FH	GGM 90W Three-phase geared motor, 220/230V, Pinion shaft, Lead wire	GGM	Frame: □90mm \| Output: 90W \| Poles: 4 \| Phase: Three-phase \| Shaft: Pinion \| Output Type: Lead wire type (300mm, UL Style 3271 AWG20) \| Rated Voltage: 220/230V \| Operating Points: 220V/50Hz: 0.72A, Start 2.35/23.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm \| 220V/60Hz: 0.63A, Start 1.8/18 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm \| 230V/50Hz: 0.86A, Start 2.45/24.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm \| 230V/60Hz: 0.66A, Start 1.95/19.5 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm \| Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz \| UL: E204632 (certified)
K9IS90FM	GGM 90W Three-phase geared motor, 380V, Straight shaft, Lead wire	GGM	Frame: □90mm \| Output: 90W \| Poles: 4 \| Phase: Three-phase \| Shaft: Straight \| Output Type: Lead wire type (300mm, UL Style 3271 AWG20) \| Rated Voltage: 380V \| Operating Points: 380V/50Hz: 0.43A, Start 2.35/23.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm \| 380V/60Hz: 0.37A, Start 1.7/17 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm \| Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz \| UL: not listed for this variant \| Note: 3-phase 380V+ must NOT be used with inverter (motor winding insulation damage)
K9IP90FM	GGM 90W Three-phase geared motor, 380V, Pinion shaft, Lead wire	GGM	Frame: □90mm \| Output: 90W \| Poles: 4 \| Phase: Three-phase \| Shaft: Pinion \| Output Type: Lead wire type (300mm, UL Style 3271 AWG20) \| Rated Voltage: 380V \| Operating Points: 380V/50Hz: 0.43A, Start 2.35/23.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm \| 380V/60Hz: 0.37A, Start 1.7/17 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm \| Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz \| UL: not listed for this variant \| Note: 3-phase 380V+ must NOT be used with inverter (motor winding insulation damage)
K9IS90FV	GGM 90W Three-phase geared motor, 400V, Straight shaft, Lead wire	GGM	Frame: □90mm \| Output: 90W \| Poles: 4 \| Phase: Three-phase \| Shaft: Straight \| Output Type: Lead wire type (300mm, UL Style 3271 AWG20) \| Rated Voltage: 400V \| Operating Points: 400V/50Hz: 0.52A, Start 2.65/26.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm \| 400V/60Hz: 0.45A, Start 2.1/21 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm \| Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz \| UL: not listed for this variant \| Note: 3-phase 380V+ must NOT be used with inverter (motor winding insulation damage)
K9IP90FV	GGM 90W Three-phase geared motor, 400V, Pinion shaft, Lead wire	GGM	Frame: □90mm \| Output: 90W \| Poles: 4 \| Phase: Three-phase \| Shaft: Pinion \| Output Type: Lead wire type (300mm, UL Style 3271 AWG20) \| Rated Voltage: 400V \| Operating Points: 400V/50Hz: 0.52A, Start 2.65/26.5 N·m/kgf·cm, Rated 0.65/6.5 N·m/kgf·cm, 1350rpm \| 400V/60Hz: 0.45A, Start 2.1/21 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm \| Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz \| UL: not listed for this variant \| Note: 3-phase 380V+ must NOT be used with inverter (motor winding insulation damage)
K9IS90FQ	GGM 90W Three-phase geared motor, 415V, Straight shaft, Lead wire	GGM	Frame: □90mm \| Output: 90W \| Poles: 4 \| Phase: Three-phase \| Shaft: Straight \| Output Type: Lead wire type (300mm, UL Style 3271 AWG20) \| Rated Voltage: 415V \| Operating Points: 415V/50Hz: 0.39A, Start 2/20 N·m/kgf·cm, Rated 0.68/6.8 N·m/kgf·cm, 1300rpm \| 415V/60Hz: 0.31A, Start 1.5/15 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm \| Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz \| UL: not listed for this variant \| Note: 3-phase 380V+ must NOT be used with inverter (motor winding insulation damage)
K9IP90FQ	GGM 90W Three-phase geared motor, 415V, Pinion shaft, Lead wire	GGM	Frame: □90mm \| Output: 90W \| Poles: 4 \| Phase: Three-phase \| Shaft: Pinion \| Output Type: Lead wire type (300mm, UL Style 3271 AWG20) \| Rated Voltage: 415V \| Operating Points: 415V/50Hz: 0.39A, Start 2/20 N·m/kgf·cm, Rated 0.68/6.8 N·m/kgf·cm, 1300rpm \| 415V/60Hz: 0.31A, Start 1.5/15 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm \| Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz \| UL: not listed for this variant \| Note: 3-phase 380V+ must NOT be used with inverter (motor winding insulation damage)
K9IS90FZ	GGM 90W Three-phase geared motor, 440V, Straight shaft, Lead wire	GGM	Frame: □90mm \| Output: 90W \| Poles: 4 \| Phase: Three-phase \| Shaft: Straight \| Output Type: Lead wire type (300mm, UL Style 3271 AWG20) \| Rated Voltage: 440V \| Operating Points: 440V/50Hz: 0.45A, Start 2.1/21 N·m/kgf·cm, Rated 0.68/6.8 N·m/kgf·cm, 1300rpm \| 440V/60Hz: 0.39A, Start 1.7/17 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm \| Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz \| UL: not listed for this variant \| Note: 3-phase 380V+ must NOT be used with inverter (motor winding insulation damage)
K9IP90FZ	GGM 90W Three-phase geared motor, 440V, Pinion shaft, Lead wire	GGM	Frame: □90mm \| Output: 90W \| Poles: 4 \| Phase: Three-phase \| Shaft: Pinion \| Output Type: Lead wire type (300mm, UL Style 3271 AWG20) \| Rated Voltage: 440V \| Operating Points: 440V/50Hz: 0.45A, Start 2.1/21 N·m/kgf·cm, Rated 0.68/6.8 N·m/kgf·cm, 1300rpm \| 440V/60Hz: 0.39A, Start 1.7/17 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm \| Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz \| UL: not listed for this variant \| Note: 3-phase 380V+ must NOT be used with inverter (motor winding insulation damage)
