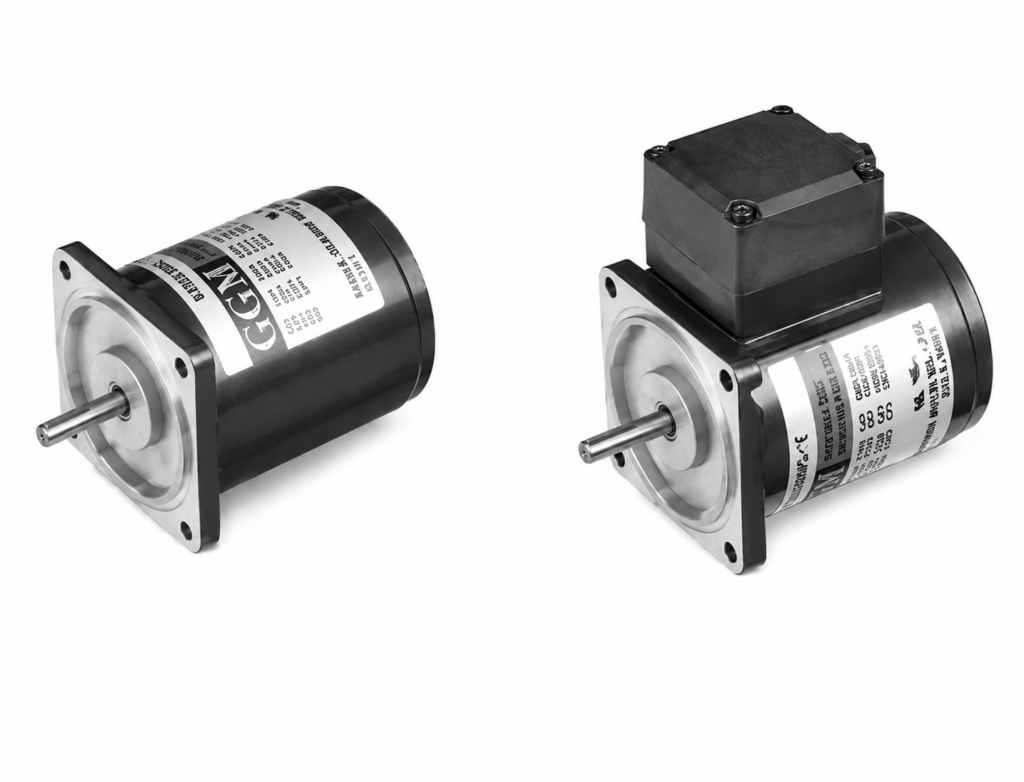

[GGM] — K6I□6N-T Series 6W Single-Phase AC Induction Motor (□60mm, 4-Pole, Terminal Box)

Family ID: GGM-K6I6N-T

GGM K6I□6N series 6W single-phase AC induction motor. □60mm frame, 4-pole, continuous rating, terminal box. Straight (S) and pinion (G) shaft; 100–240V (50/60Hz). Pinion-shaft type combines with K6G□ gear heads (matching face/teeth). U variant (110/115V) UL certified, UL FILE NO. E235858.

10 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code	Description	Brand	Spec
K6IS6NJ-T	GGM 6W AC induction motor K6IS6NJ-T — Straight shaft, 100V, Terminal Box	GGM	Output: 6W \| Poles: 4 \| Phase: Single-phase \| Frame: □60mm \| Shaft: Straight \| Connection: Terminal Box \| Voltage: 100V \| Condenser: 3μF \| Operating Points: 100V/50Hz: 0.25A, Start 0.04/0.4N·m·kgf·cm, Rated 0.049/0.49N·m·kgf·cm, 1200rpm ; 100V/60Hz: 0.23A, Start 0.04/0.4N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm \| UL: —
K6IG6NJ-T	GGM 6W AC induction motor K6IG6NJ-T — Pinion (for gear head) shaft, 100V, Terminal Box	GGM	Output: 6W \| Poles: 4 \| Phase: Single-phase \| Frame: □60mm \| Shaft: Pinion (for gear head) \| Connection: Terminal Box \| Voltage: 100V \| Condenser: 3μF \| Operating Points: 100V/50Hz: 0.25A, Start 0.04/0.4N·m·kgf·cm, Rated 0.049/0.49N·m·kgf·cm, 1200rpm ; 100V/60Hz: 0.23A, Start 0.04/0.4N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm \| UL: —
K6IS6NU-T	GGM 6W AC induction motor K6IS6NU-T — Straight shaft, 110/115V, Terminal Box	GGM	Output: 6W \| Poles: 4 \| Phase: Single-phase \| Frame: □60mm \| Shaft: Straight \| Connection: Terminal Box \| Voltage: 110/115V \| Condenser: 2μF \| Operating Points: 110V/60Hz: 0.18A, Start 0.035/0.35N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm ; 115V/60Hz: 0.19A, Start 0.04/0.4N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm \| UL: Certified (E235858)
K6IG6NU-T	GGM 6W AC induction motor K6IG6NU-T — Pinion (for gear head) shaft, 110/115V, Terminal Box	GGM	Output: 6W \| Poles: 4 \| Phase: Single-phase \| Frame: □60mm \| Shaft: Pinion (for gear head) \| Connection: Terminal Box \| Voltage: 110/115V \| Condenser: 2μF \| Operating Points: 110V/60Hz: 0.18A, Start 0.035/0.35N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm ; 115V/60Hz: 0.19A, Start 0.04/0.4N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm \| UL: Certified (E235858)
K6IS6NL-T	GGM 6W AC induction motor K6IS6NL-T — Straight shaft, 200V, Terminal Box	GGM	Output: 6W \| Poles: 4 \| Phase: Single-phase \| Frame: □60mm \| Shaft: Straight \| Connection: Terminal Box \| Voltage: 200V \| Condenser: 0.8μF \| Operating Points: 200V/50Hz: 0.11A, Start 0.045/0.45N·m·kgf·cm, Rated 0.049/0.49N·m·kgf·cm, 1200rpm ; 200V/60Hz: 0.11A, Start 0.045/0.45N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm \| UL: —
K6IG6NL-T	GGM 6W AC induction motor K6IG6NL-T — Pinion (for gear head) shaft, 200V, Terminal Box	GGM	Output: 6W \| Poles: 4 \| Phase: Single-phase \| Frame: □60mm \| Shaft: Pinion (for gear head) \| Connection: Terminal Box \| Voltage: 200V \| Condenser: 0.8μF \| Operating Points: 200V/50Hz: 0.11A, Start 0.045/0.45N·m·kgf·cm, Rated 0.049/0.49N·m·kgf·cm, 1200rpm ; 200V/60Hz: 0.11A, Start 0.045/0.45N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm \| UL: —
K6IS6NC-T	GGM 6W AC induction motor K6IS6NC-T — Straight shaft, 220/230V, Terminal Box	GGM	Output: 6W \| Poles: 4 \| Phase: Single-phase \| Frame: □60mm \| Shaft: Straight \| Connection: Terminal Box \| Voltage: 220/230V \| Condenser: 0.6μF \| Operating Points: 220V/50Hz: 0.11A, Start 0.04/0.4N·m·kgf·cm, Rated 0.047/0.47N·m·kgf·cm, 1250rpm ; 220V/60Hz: 0.10A, Start 0.035/0.35N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm ; 230V/50Hz: 0.12A, Start 0.045/0.45N·m·kgf·cm, Rated 0.047/0.47N·m·kgf·cm, 1250rpm ; 230V/60Hz: 0.11A, Start 0.04/0.4N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm \| UL: —
K6IG6NC-T	GGM 6W AC induction motor K6IG6NC-T — Pinion (for gear head) shaft, 220/230V, Terminal Box	GGM	Output: 6W \| Poles: 4 \| Phase: Single-phase \| Frame: □60mm \| Shaft: Pinion (for gear head) \| Connection: Terminal Box \| Voltage: 220/230V \| Condenser: 0.6μF \| Operating Points: 220V/50Hz: 0.11A, Start 0.04/0.4N·m·kgf·cm, Rated 0.047/0.47N·m·kgf·cm, 1250rpm ; 220V/60Hz: 0.10A, Start 0.035/0.35N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm ; 230V/50Hz: 0.12A, Start 0.045/0.45N·m·kgf·cm, Rated 0.047/0.47N·m·kgf·cm, 1250rpm ; 230V/60Hz: 0.11A, Start 0.04/0.4N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm \| UL: —
K6IS6ND-T	GGM 6W AC induction motor K6IS6ND-T — Straight shaft, 240V, Terminal Box	GGM	Output: 6W \| Poles: 4 \| Phase: Single-phase \| Frame: □60mm \| Shaft: Straight \| Connection: Terminal Box \| Voltage: 240V \| Condenser: 0.5μF \| Operating Points: 240V/50Hz: 0.12A, Start 0.045/0.45N·m·kgf·cm, Rated 0.047/0.47N·m·kgf·cm, 1250rpm \| UL: —
K6IG6ND-T	GGM 6W AC induction motor K6IG6ND-T — Pinion (for gear head) shaft, 240V, Terminal Box	GGM	Output: 6W \| Poles: 4 \| Phase: Single-phase \| Frame: □60mm \| Shaft: Pinion (for gear head) \| Connection: Terminal Box \| Voltage: 240V \| Condenser: 0.5μF \| Operating Points: 240V/50Hz: 0.12A, Start 0.045/0.45N·m·kgf·cm, Rated 0.047/0.47N·m·kgf·cm, 1250rpm \| UL: —
