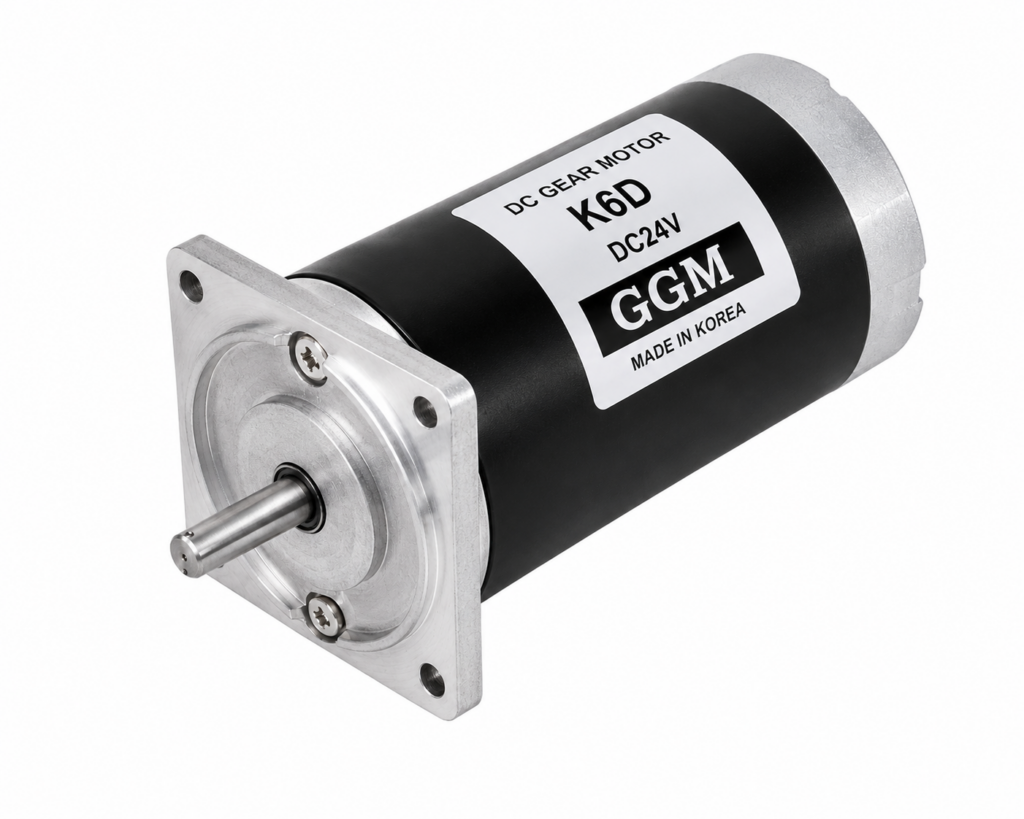

[GGM] — K6D Brushed DC Motor (□60, 6–15W, 12/24/90V DC, 3000 rpm)
Family ID: GGM-K6D
GGM K6D brushed DC motor, □60mm frame, 6W and 15W outputs at 12/24/90V DC, rated 3000 rpm. Reversible by supply polarity (red lead = CW, black lead = CCW), straight (S) or pinion (G) output shaft; compatible with K6G gearheads.
12 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| K6DS6N1 | K6D brushed DC motor, 6W, DC 12V, Straight shaft, 3000 rpm | GGM | Output: 6W | Voltage: DC 12V | Shaft: Straight | Rated Torque: 0.02 N·m (0.2 kgf·cm) | Rated Current: 1.1 A | Starting Torque: 0.16 N·m (1.6 kgf·cm) | Starting Current: 8 A | ||
| K6DG6N1 | K6D brushed DC motor, 6W, DC 12V, Pinion shaft, 3000 rpm | GGM | Output: 6W | Voltage: DC 12V | Shaft: Pinion | Rated Torque: 0.02 N·m (0.2 kgf·cm) | Rated Current: 1.1 A | Starting Torque: 0.16 N·m (1.6 kgf·cm) | Starting Current: 8 A | ||
| K6DS6N2 | K6D brushed DC motor, 6W, DC 24V, Straight shaft, 3000 rpm | GGM | Output: 6W | Voltage: DC 24V | Shaft: Straight | Rated Torque: 0.02 N·m (0.2 kgf·cm) | Rated Current: 0.6 A | Starting Torque: 0.17 N·m (1.7 kgf·cm) | Starting Current: 5 A | ||
| K6DG6N2 | K6D brushed DC motor, 6W, DC 24V, Pinion shaft, 3000 rpm | GGM | Output: 6W | Voltage: DC 24V | Shaft: Pinion | Rated Torque: 0.02 N·m (0.2 kgf·cm) | Rated Current: 0.6 A | Starting Torque: 0.17 N·m (1.7 kgf·cm) | Starting Current: 5 A | ||
| K6DS6N3 | K6D brushed DC motor, 6W, DC 90V, Straight shaft, 3000 rpm | GGM | Output: 6W | Voltage: DC 90V | Shaft: Straight | Rated Torque: 0.02 N·m (0.2 kgf·cm) | Rated Current: 0.1 A | Starting Torque: 0.19 N·m (1.9 kgf·cm) | Starting Current: 1 A | ||
| K6DG6N3 | K6D brushed DC motor, 6W, DC 90V, Pinion shaft, 3000 rpm | GGM | Output: 6W | Voltage: DC 90V | Shaft: Pinion | Rated Torque: 0.02 N·m (0.2 kgf·cm) | Rated Current: 0.1 A | Starting Torque: 0.19 N·m (1.9 kgf·cm) | Starting Current: 1 A | ||
| K6DS15N1 | K6D brushed DC motor, 15W, DC 12V, Straight shaft, 3000 rpm | GGM | Output: 15W | Voltage: DC 12V | Shaft: Straight | Rated Torque: 0.05 N·m (0.5 kgf·cm) | Rated Current: 2.8 A | Starting Torque: 0.31 N·m (3.1 kgf·cm) | Starting Current: 17 A | ||
| K6DG15N1 | K6D brushed DC motor, 15W, DC 12V, Pinion shaft, 3000 rpm | GGM | Output: 15W | Voltage: DC 12V | Shaft: Pinion | Rated Torque: 0.05 N·m (0.5 kgf·cm) | Rated Current: 2.8 A | Starting Torque: 0.31 N·m (3.1 kgf·cm) | Starting Current: 17 A | ||
| K6DS15N2 | K6D brushed DC motor, 15W, DC 24V, Straight shaft, 3000 rpm | GGM | Output: 15W | Voltage: DC 24V | Shaft: Straight | Rated Torque: 0.05 N·m (0.5 kgf·cm) | Rated Current: 1.2 A | Starting Torque: 0.42 N·m (4.2 kgf·cm) | Starting Current: 11 A | ||
| K6DG15N2 | K6D brushed DC motor, 15W, DC 24V, Pinion shaft, 3000 rpm | GGM | Output: 15W | Voltage: DC 24V | Shaft: Pinion | Rated Torque: 0.05 N·m (0.5 kgf·cm) | Rated Current: 1.2 A | Starting Torque: 0.42 N·m (4.2 kgf·cm) | Starting Current: 11 A | ||
| K6DS15N3 | K6D brushed DC motor, 15W, DC 90V, Straight shaft, 3000 rpm | GGM | Output: 15W | Voltage: DC 90V | Shaft: Straight | Rated Torque: 0.05 N·m (0.5 kgf·cm) | Rated Current: 0.3 A | Starting Torque: 0.4 N·m (4 kgf·cm) | Starting Current: 3 A | ||
| K6DG15N3 | K6D brushed DC motor, 15W, DC 90V, Pinion shaft, 3000 rpm | GGM | Output: 15W | Voltage: DC 90V | Shaft: Pinion | Rated Torque: 0.05 N·m (0.5 kgf·cm) | Rated Current: 0.3 A | Starting Torque: 0.4 N·m (4 kgf·cm) | Starting Current: 3 A |
