DC Motors
GGM

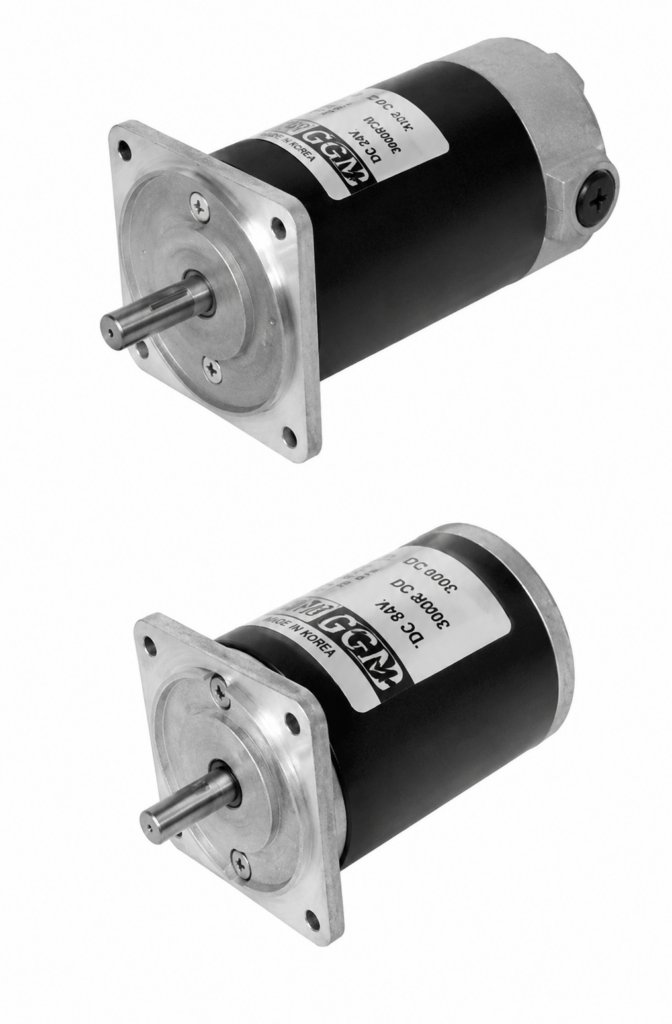

[GGM] — K9D Brushed DC Motor (□90, 40–200W, 12/24/90V DC, 3000 rpm)
Family ID: GGM-K9D
GGM K9D brushed DC motor, □90mm frame, 40W to 200W outputs at 12/24/90V DC, rated 3000 rpm. Reversible by supply polarity (red lead = CW, black lead = CCW), straight or pinion shaft; 40W pairs with K9G gearheads, 60–200W with K9P gearheads.
36 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| K9DS40N1 | K9D brushed DC motor, 40W, DC 12V, Straight shaft, 3000 rpm | GGM | Output: 40W | Voltage: DC 12V | Shaft: Straight | Rated Torque: 0.13 N·m (1.3 kgf·cm) | Rated Current: 6.1 A | Starting Torque: 1.43 N·m (14.3 kgf·cm) | Starting Current: 64 A | ||
| K9DG40N1 | K9D brushed DC motor, 40W, DC 12V, Pinion (G) shaft, 3000 rpm | GGM | Output: 40W | Voltage: DC 12V | Shaft: Pinion (G) | Rated Torque: 0.13 N·m (1.3 kgf·cm) | Rated Current: 6.1 A | Starting Torque: 1.43 N·m (14.3 kgf·cm) | Starting Current: 64 A | ||
| K9DS40N2 | K9D brushed DC motor, 40W, DC 24V, Straight shaft, 3000 rpm | GGM | Output: 40W | Voltage: DC 24V | Shaft: Straight | Rated Torque: 0.13 N·m (1.3 kgf·cm) | Rated Current: 3 A | Starting Torque: 1.82 N·m (18.2 kgf·cm) | Starting Current: 40 A | ||
| K9DG40N2 | K9D brushed DC motor, 40W, DC 24V, Pinion (G) shaft, 3000 rpm | GGM | Output: 40W | Voltage: DC 24V | Shaft: Pinion (G) | Rated Torque: 0.13 N·m (1.3 kgf·cm) | Rated Current: 3 A | Starting Torque: 1.82 N·m (18.2 kgf·cm) | Starting Current: 40 A | ||
| K9DS40N3 | K9D brushed DC motor, 40W, DC 90V, Straight shaft, 3000 rpm | GGM | Output: 40W | Voltage: DC 90V | Shaft: Straight | Rated Torque: 0.13 N·m (1.3 kgf·cm) | Rated Current: 0.9 A | Starting Torque: 1.44 N·m (14.4 kgf·cm) | Starting Current: 9 A | ||
| K9DG40N3 | K9D brushed DC motor, 40W, DC 90V, Pinion (G) shaft, 3000 rpm | GGM | Output: 40W | Voltage: DC 90V | Shaft: Pinion (G) | Rated Torque: 0.13 N·m (1.3 kgf·cm) | Rated Current: 0.9 A | Starting Torque: 1.44 N·m (14.4 kgf·cm) | Starting Current: 9 A | ||
| K9DS60N1 | K9D brushed DC motor, 60W, DC 12V, Straight shaft, 3000 rpm | GGM | Output: 60W | Voltage: DC 12V | Shaft: Straight | Rated Torque: 0.19 N·m (1.9 kgf·cm) | Rated Current: 12 A | Starting Torque: 1.46 N·m (14.6 kgf·cm) | Starting Current: 80 A | ||
| K9DP60N1 | K9D brushed DC motor, 60W, DC 12V, Pinion (P) shaft, 3000 rpm | GGM | Output: 60W | Voltage: DC 12V | Shaft: Pinion (P) | Rated Torque: 0.19 N·m (1.9 kgf·cm) | Rated Current: 12 A | Starting Torque: 1.46 N·m (14.6 kgf·cm) | Starting Current: 80 A | ||
| K9DS60N2 | K9D brushed DC motor, 60W, DC 24V, Straight shaft, 3000 rpm | GGM | Output: 60W | Voltage: DC 24V | Shaft: Straight | Rated Torque: 0.19 N·m (1.9 kgf·cm) | Rated Current: 4.6 A | Starting Torque: 2.73 N·m (27.3 kgf·cm) | Starting Current: 60 A | ||
| K9DP60N2 | K9D brushed DC motor, 60W, DC 24V, Pinion (P) shaft, 3000 rpm | GGM | Output: 60W | Voltage: DC 24V | Shaft: Pinion (P) | Rated Torque: 0.19 N·m (1.9 kgf·cm) | Rated Current: 4.6 A | Starting Torque: 2.73 N·m (27.3 kgf·cm) | Starting Current: 60 A | ||
| K9DS60N3 | K9D brushed DC motor, 60W, DC 90V, Straight shaft, 3000 rpm | GGM | Output: 60W | Voltage: DC 90V | Shaft: Straight | Rated Torque: 0.19 N·m (1.9 kgf·cm) | Rated Current: 1.4 A | Starting Torque: 2.18 N·m (21.8 kgf·cm) | Starting Current: 13 A | ||
| K9DP60N3 | K9D brushed DC motor, 60W, DC 90V, Pinion (P) shaft, 3000 rpm | GGM | Output: 60W | Voltage: DC 90V | Shaft: Pinion (P) | Rated Torque: 0.19 N·m (1.9 kgf·cm) | Rated Current: 1.4 A | Starting Torque: 2.18 N·m (21.8 kgf·cm) | Starting Current: 13 A | ||
| K9DS90N1 | K9D brushed DC motor, 90W, DC 12V, Straight shaft, 3000 rpm | GGM | Output: 90W | Voltage: DC 12V | Shaft: Straight | Rated Torque: 0.3 N·m (3 kgf·cm) | Rated Current: 13.4 A | Starting Torque: 1.63 N·m (16.3 kgf·cm) | Starting Current: 76 A | ||
| K9DP90N1 | K9D brushed DC motor, 90W, DC 12V, Pinion (P) shaft, 3000 rpm | GGM | Output: 90W | Voltage: DC 12V | Shaft: Pinion (P) | Rated Torque: 0.3 N·m (3 kgf·cm) | Rated Current: 13.4 A | Starting Torque: 1.63 N·m (16.3 kgf·cm) | Starting Current: 76 A | ||
| K9DS90N2 | K9D brushed DC motor, 90W, DC 24V, Straight shaft, 3000 rpm | GGM | Output: 90W | Voltage: DC 24V | Shaft: Straight | Rated Torque: 0.3 N·m (3 kgf·cm) | Rated Current: 5.9 A | Starting Torque: 3 N·m (30 kgf·cm) | Starting Current: 67 A | ||
| K9DP90N2 | K9D brushed DC motor, 90W, DC 24V, Pinion (P) shaft, 3000 rpm | GGM | Output: 90W | Voltage: DC 24V | Shaft: Pinion (P) | Rated Torque: 0.3 N·m (3 kgf·cm) | Rated Current: 5.9 A | Starting Torque: 3 N·m (30 kgf·cm) | Starting Current: 67 A | ||
| K9DS90N3 | K9D brushed DC motor, 90W, DC 90V, Straight shaft, 3000 rpm | GGM | Output: 90W | Voltage: DC 90V | Shaft: Straight | Rated Torque: 0.3 N·m (3 kgf·cm) | Rated Current: 1.6 A | Starting Torque: 2.3 N·m (23 kgf·cm) | Starting Current: 14 A | ||
| K9DP90N3 | K9D brushed DC motor, 90W, DC 90V, Pinion (P) shaft, 3000 rpm | GGM | Output: 90W | Voltage: DC 90V | Shaft: Pinion (P) | Rated Torque: 0.3 N·m (3 kgf·cm) | Rated Current: 1.6 A | Starting Torque: 2.3 N·m (23 kgf·cm) | Starting Current: 14 A | ||
| K9DS120N1 | K9D brushed DC motor, 120W, DC 12V, Straight shaft, 3000 rpm | GGM | Output: 120W | Voltage: DC 12V | Shaft: Straight | Rated Torque: 0.39 N·m (3.9 kgf·cm) | Rated Current: 17.9 A | Starting Torque: 1.75 N·m (17.5 kgf·cm) | Starting Current: 90 A | ||
| K9DP120N1 | K9D brushed DC motor, 120W, DC 12V, Pinion (P) shaft, 3000 rpm | GGM | Output: 120W | Voltage: DC 12V | Shaft: Pinion (P) | Rated Torque: 0.39 N·m (3.9 kgf·cm) | Rated Current: 17.9 A | Starting Torque: 1.75 N·m (17.5 kgf·cm) | Starting Current: 90 A | ||
| K9DS120N2 | K9D brushed DC motor, 120W, DC 24V, Straight shaft, 3000 rpm | GGM | Output: 120W | Voltage: DC 24V | Shaft: Straight | Rated Torque: 0.39 N·m (3.9 kgf·cm) | Rated Current: 7.7 A | Starting Torque: 3.95 N·m (39.5 kgf·cm) | Starting Current: 85 A | ||
| K9DP120N2 | K9D brushed DC motor, 120W, DC 24V, Pinion (P) shaft, 3000 rpm | GGM | Output: 120W | Voltage: DC 24V | Shaft: Pinion (P) | Rated Torque: 0.39 N·m (3.9 kgf·cm) | Rated Current: 7.7 A | Starting Torque: 3.95 N·m (39.5 kgf·cm) | Starting Current: 85 A | ||
| K9DS120N3 | K9D brushed DC motor, 120W, DC 90V, Straight shaft, 3000 rpm | GGM | Output: 120W | Voltage: DC 90V | Shaft: Straight | Rated Torque: 0.39 N·m (3.9 kgf·cm) | Rated Current: 1.9 A | Starting Torque: 4.39 N·m (43.9 kgf·cm) | Starting Current: 25 A | ||
| K9DP120N3 | K9D brushed DC motor, 120W, DC 90V, Pinion (P) shaft, 3000 rpm | GGM | Output: 120W | Voltage: DC 90V | Shaft: Pinion (P) | Rated Torque: 0.39 N·m (3.9 kgf·cm) | Rated Current: 1.9 A | Starting Torque: 4.39 N·m (43.9 kgf·cm) | Starting Current: 25 A | ||
| K9DS150N1 | K9D brushed DC motor, 150W, DC 12V, Straight shaft, 3000 rpm | GGM | Output: 150W | Voltage: DC 12V | Shaft: Straight | Rated Torque: 0.49 N·m (4.9 kgf·cm) | Rated Current: 21.1 A | Starting Torque: 2.22 N·m (22.2 kgf·cm) | Starting Current: 111 A | ||
| K9DP150N1 | K9D brushed DC motor, 150W, DC 12V, Pinion (P) shaft, 3000 rpm | GGM | Output: 150W | Voltage: DC 12V | Shaft: Pinion (P) | Rated Torque: 0.49 N·m (4.9 kgf·cm) | Rated Current: 21.1 A | Starting Torque: 2.22 N·m (22.2 kgf·cm) | Starting Current: 111 A | ||
| K9DS150N2 | K9D brushed DC motor, 150W, DC 24V, Straight shaft, 3000 rpm | GGM | Output: 150W | Voltage: DC 24V | Shaft: Straight | Rated Torque: 0.49 N·m (4.9 kgf·cm) | Rated Current: 9 A | Starting Torque: 4.29 N·m (42.9 kgf·cm) | Starting Current: 94 A | ||
| K9DP150N2 | K9D brushed DC motor, 150W, DC 24V, Pinion (P) shaft, 3000 rpm | GGM | Output: 150W | Voltage: DC 24V | Shaft: Pinion (P) | Rated Torque: 0.49 N·m (4.9 kgf·cm) | Rated Current: 9 A | Starting Torque: 4.29 N·m (42.9 kgf·cm) | Starting Current: 94 A | ||
| K9DS150N3 | K9D brushed DC motor, 150W, DC 90V, Straight shaft, 3000 rpm | GGM | Output: 150W | Voltage: DC 90V | Shaft: Straight | Rated Torque: 0.49 N·m (4.9 kgf·cm) | Rated Current: 2.5 A | Starting Torque: 5 N·m (50 kgf·cm) | Starting Current: 30 A | ||
| K9DP150N3 | K9D brushed DC motor, 150W, DC 90V, Pinion (P) shaft, 3000 rpm | GGM | Output: 150W | Voltage: DC 90V | Shaft: Pinion (P) | Rated Torque: 0.49 N·m (4.9 kgf·cm) | Rated Current: 2.5 A | Starting Torque: 5 N·m (50 kgf·cm) | Starting Current: 30 A | ||
| K9DS200N1 | K9D brushed DC motor, 200W, DC 12V, Straight shaft, 3000 rpm | GGM | Output: 200W | Voltage: DC 12V | Shaft: Straight | Rated Torque: 0.65 N·m (6.5 kgf·cm) | Rated Current: 28 A | Starting Torque: 1.8 N·m (18 kgf·cm) | Starting Current: 89 A | ||
| K9DP200N1 | K9D brushed DC motor, 200W, DC 12V, Pinion (P) shaft, 3000 rpm | GGM | Output: 200W | Voltage: DC 12V | Shaft: Pinion (P) | Rated Torque: 0.65 N·m (6.5 kgf·cm) | Rated Current: 28 A | Starting Torque: 1.8 N·m (18 kgf·cm) | Starting Current: 89 A | ||
| K9DS200N2 | K9D brushed DC motor, 200W, DC 24V, Straight shaft, 3000 rpm | GGM | Output: 200W | Voltage: DC 24V | Shaft: Straight | Rated Torque: 0.65 N·m (6.5 kgf·cm) | Rated Current: 12 A | Starting Torque: 5.2 N·m (52 kgf·cm) | Starting Current: 124 A | ||
| K9DP200N2 | K9D brushed DC motor, 200W, DC 24V, Pinion (P) shaft, 3000 rpm | GGM | Output: 200W | Voltage: DC 24V | Shaft: Pinion (P) | Rated Torque: 0.65 N·m (6.5 kgf·cm) | Rated Current: 12 A | Starting Torque: 5.2 N·m (52 kgf·cm) | Starting Current: 124 A | ||
| K9DS200N3 | K9D brushed DC motor, 200W, DC 90V, Straight shaft, 3000 rpm | GGM | Output: 200W | Voltage: DC 90V | Shaft: Straight | Rated Torque: 0.65 N·m (6.5 kgf·cm) | Rated Current: 3.3 A | Starting Torque: 5.55 N·m (55.5 kgf·cm) | Starting Current: 32 A | ||
| K9DP200N3 | K9D brushed DC motor, 200W, DC 90V, Pinion (P) shaft, 3000 rpm | GGM | Output: 200W | Voltage: DC 90V | Shaft: Pinion (P) | Rated Torque: 0.65 N·m (6.5 kgf·cm) | Rated Current: 3.3 A | Starting Torque: 5.55 N·m (55.5 kgf·cm) | Starting Current: 32 A |
