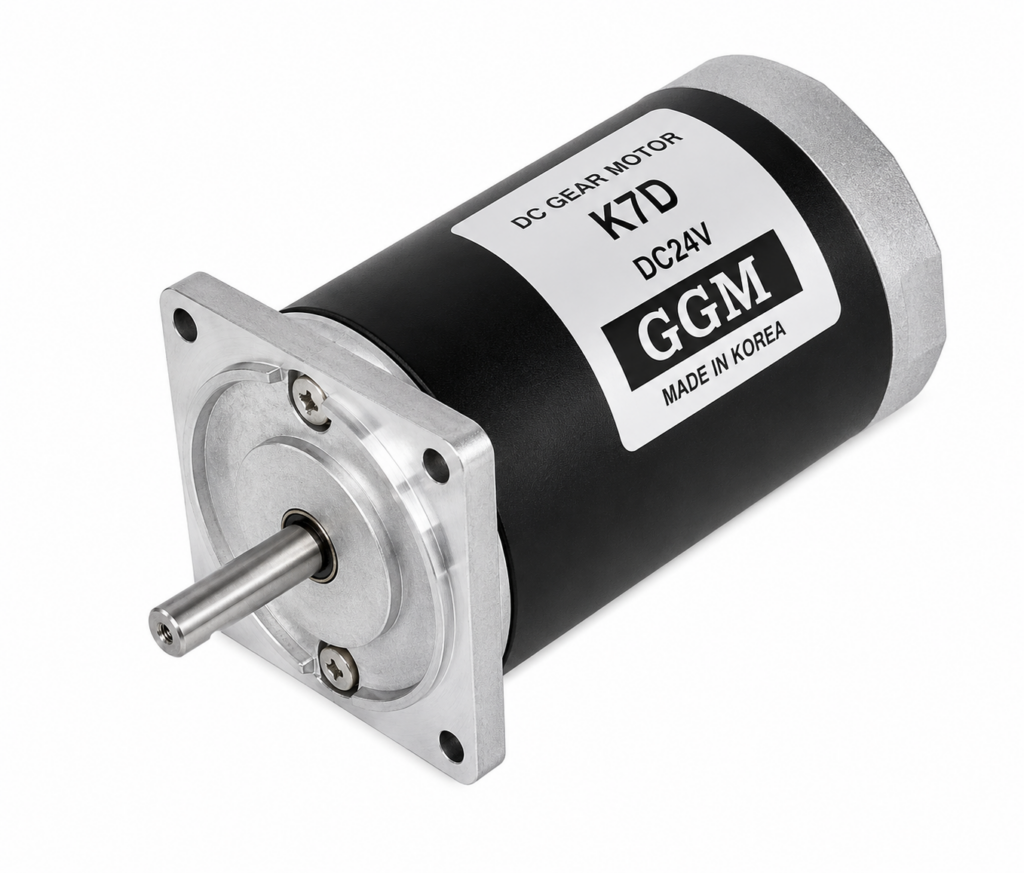

[GGM] — K7D Brushed DC Motor (□70, 15W, 12/24/90V DC, 3000 rpm)
Family ID: GGM-K7D
GGM K7D brushed DC motor, □70mm frame, 15W output at 12/24/90V DC, rated 3000 rpm. Reversible by supply polarity (red lead = CW, black lead = CCW), straight (S) or pinion (G) output shaft; compatible with K7G gearheads.
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| K7DS15N1 | K7D brushed DC motor, 15W, DC 12V, Straight shaft, 3000 rpm | GGM | Output: 15W | Voltage: DC 12V | Shaft: Straight | Rated Torque: 0.05 N·m (0.5 kgf·cm) | Rated Current: 3.1 A | Starting Torque: 0.29 N·m (2.9 kgf·cm) | Starting Current: 16 A | ||
| K7DG15N1 | K7D brushed DC motor, 15W, DC 12V, Pinion shaft, 3000 rpm | GGM | Output: 15W | Voltage: DC 12V | Shaft: Pinion | Rated Torque: 0.05 N·m (0.5 kgf·cm) | Rated Current: 3.1 A | Starting Torque: 0.29 N·m (2.9 kgf·cm) | Starting Current: 16 A | ||
| K7DS15N2 | K7D brushed DC motor, 15W, DC 24V, Straight shaft, 3000 rpm | GGM | Output: 15W | Voltage: DC 24V | Shaft: Straight | Rated Torque: 0.05 N·m (0.5 kgf·cm) | Rated Current: 1.4 A | Starting Torque: 0.35 N·m (3.5 kgf·cm) | Starting Current: 9 A | ||
| K7DG15N2 | K7D brushed DC motor, 15W, DC 24V, Pinion shaft, 3000 rpm | GGM | Output: 15W | Voltage: DC 24V | Shaft: Pinion | Rated Torque: 0.05 N·m (0.5 kgf·cm) | Rated Current: 1.4 A | Starting Torque: 0.35 N·m (3.5 kgf·cm) | Starting Current: 9 A | ||
| K7DS15N3 | K7D brushed DC motor, 15W, DC 90V, Straight shaft, 3000 rpm | GGM | Output: 15W | Voltage: DC 90V | Shaft: Straight | Rated Torque: 0.05 N·m (0.5 kgf·cm) | Rated Current: 0.3 A | Starting Torque: 0.39 N·m (3.9 kgf·cm) | Starting Current: 3 A | ||
| K7DG15N3 | K7D brushed DC motor, 15W, DC 90V, Pinion shaft, 3000 rpm | GGM | Output: 15W | Voltage: DC 90V | Shaft: Pinion | Rated Torque: 0.05 N·m (0.5 kgf·cm) | Rated Current: 0.3 A | Starting Torque: 0.39 N·m (3.9 kgf·cm) | Starting Current: 3 A |
