Chains & Wires
KBC

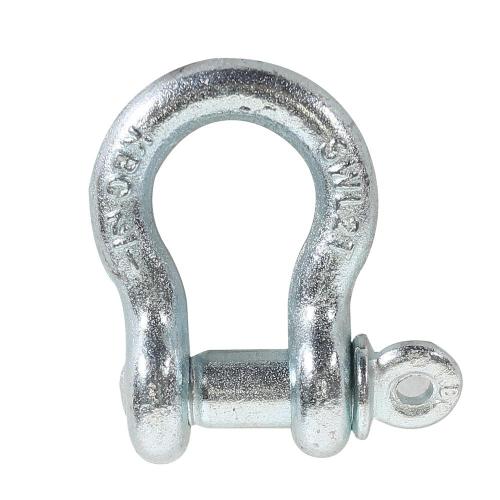

[KBC] — 560-0221 Forged Shackle (FBC)
Family ID: 560-0221
KBC 560-0221 Forged Shackle delivers reliable load-bearing connection for rigging and lifting applications, sourced direct from Korea. Forged shackles of this type are widely used in construction, marine, and industrial lifting operations to link chains, wire ropes, and rigging hardware under heavy load. Request a quote today for export-ready supply, competitive pricing, and reliable fulfillment through a KITA-registered Korean exporter.
8 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 560-0221 | — | KBC | 13mm (1/2') | Spec: 1/2 | Weight: 0.32 | A: 20.57 | C: 47.25 | D: 12.70 | E: 33.27 | F: 30.23 | Max Load: 2.00 | H: 83.31 | B: 16.26 | ||
| 560-0230 | — | KBC | 16mm (5/8') | Spec: 5/8 | Weight: 0.62 | A: 26.92 | C: 60.45 | D: 16.00 | E: 42.93 | F: 38.10 | Max Load: 3.25 | H: 106.43 | B: 19.56 | ||
| 560-0249 | — | KBC | 19mm (3/4') | Spec: 3/4 | Weight: 1.06 | A: 31.75 | C: 71.37 | D: 19.05 | E: 50.80 | F: 45.97 | Max Load: 4.75 | H: 126.24 | B: 22.61 | ||
| 560-0258 | — | KBC | 22mm (7/8') | Spec: 7/8 | Weight: 1.64 | A: 36.58 | C: 84.07 | D: 22.35 | E: 57.91 | F: 53.09 | Max Load: 6.50 | H: 148.08 | B: 25.91 | ||
| 560-0267 | — | KBC | 25mm (1') | Spec: 1 | Weight: 2.28 | A: 42.93 | C: 95.25 | D: 25.40 | E: 68.33 | F: 60.45 | Max Load: 8.50 | H: 166.62 | B: 29.21 | ||
| 560-1707 | — | KBC | 9.5mm (3/8') | Spec: 9.5(3/8) | Weight: 0.14 | A: 16.76 | C: 36.58 | D: 9.65 | E: 26.16 | F: 23.11 | Max Load: 1.00 | H: 63.25 | B: 11.18 | ||
| 560-1789 | — | KBC | 6.4mm (1/4') | Spec: 6.4(1/4) | Weight: 0.05 | A: 11.94 | C: 28.70 | D: 6.35 | E: 19.81 | F: 15.49 | Max Load: 0.50 | H: 46.74 | B: 7.87 | ||
| 560-1859 | — | KBC | 7.9mm (5/16') | Spec: 7.9(5/16) | Weight: 0.09 | A: 13.46 | C: 30.99 | D: 7.87 | E: 21.34 | F: 19.05 | Max Load: 0.75 | H: 53.09 | B: 9.65 |
