Chains & Wires
KBC

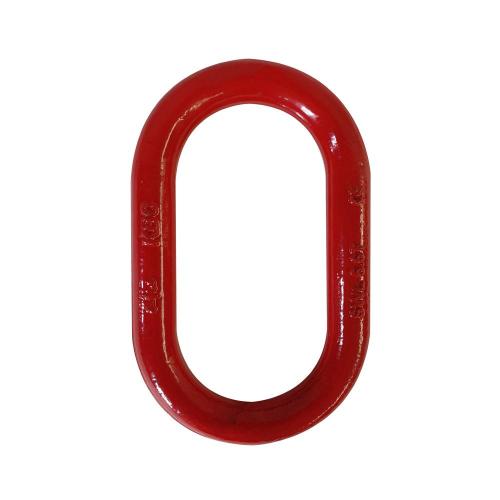

[KBC] — 560-0726 Master Link
Family ID: 560-0726
Master Link from KBC, sourced from Korea.
5 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 560-0726 | — | KBC | 13mm (1/2') | Thickness: 13mm (Tolerance ±1) | Spec: 1/2 | Weight: 0.36 | Safe Working Load: 3.4 | A: 127mm (Tolerance ±6) | B: 63.5mm (Tolerance ±5) | ||
| 560-0735 | — | KBC | 16mm (5/8') | Thickness: 16mm (Tolerance ±1) | Spec: 5/8 | Weight: 0.70 | Safe Working Load: 4.0 | A: 152mm (Tolerance ±6) | B: 76mm (Tolerance ±5) | ||
| 560-0744 | — | KBC | 19mm (3/4') | Thickness: 19mm (Tolerance ±1) | Spec: 3/4 | Weight: 0.93 | Safe Working Load: 5.6 | A: 140mm (Tolerance ±6) | B: 70mm (Tolerance ±5) | ||
| 560-0753 | — | KBC | 22mm (7/8') | Thickness: 22mm (Tolerance ±1) | Spec: 7/8 | Weight: 1.50 | Safe Working Load: 6.9 | A: 160mm (Tolerance ±6) | B: 90mm (Tolerance ±5) | ||
| 560-0762 | — | KBC | 25mm (1') | Thickness: 25mm (Tolerance ±1) | Spec: 1 | Weight: 2.10 | Safe Working Load: 11.8 | A: 178mm (Tolerance ±6) | B: 89mm (Tolerance ±5) |
