![[KBC] — 560-1947 Forged Shackle (FBB)](https://img.prosourcemro.com/2026/05/3361624-1-2.jpg)
Chains & Wires
KBC

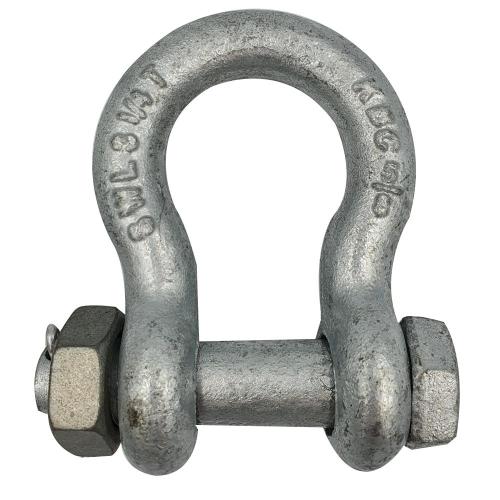

[KBC] — 560-1947 Forged Shackle (FBB)
Family ID: 560-1947
KBC Forged Shackle (FBB) is a heavy-duty lifting and rigging connector sourced direct from Korea. Forged shackles are widely used in construction, marine, and industrial lifting applications to securely connect chains, wire ropes, slings, and hoists to loads or anchor points. Request a quote today for export-ready supply at competitive pricing through a KITA-registered Korean exporter.
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 560-1947 | — | KBC | 13mm (1/2') | Spec: 1/2 | Weight: 0.36 | A: 20.57 | C: 47.75 | D: 12.70 | E: 33.27 | F: 30.23 | Max Load: 2.00 | H: 83.31 | B: 16.26 | ||
| 560-1956 | — | KBC | 16mm (5/8') | Spec: 5/8 | Weight: 0.76 | A: 26.92 | C: 60.45 | D: 16.00 | E: 42.93 | F: 38.10 | Max Load: 3.25 | H: 106.43 | B: 19.56 | ||
| 560-1965 | — | KBC | 19mm (3/4') | Spec: 3/4 | Weight: 1.23 | A: 31.75 | C: 71.37 | D: 19.05 | E: 50.80 | F: 45.97 | Max Load: 4.75 | H: 126.24 | B: 22.61 | ||
| 560-1974 | — | KBC | 22mm (7/8') | Spec: 7/8 | Weight: 1.79 | A: 36.58 | C: 84.07 | D: 22.35 | E: 57.91 | F: 53.09 | Max Load: 6.50 | H: 148.08 | B: 25.91 | ||
| 560-1983 | — | KBC | 25mm (1') | Spec: 1 | Weight: 2.57 | A: 42.93 | C: 95.25 | D: 25.40 | E: 68.33 | F: 60.45 | Max Load: 8.50 | H: 166.62 | B: 29.21 | ||
| 560-2052 | — | KBC | 9.5mm (3/8') | Spec: 3/8 | Weight: 0.14 | A: 16.76 | C: 36.58 | D: 9.65 | E: 26.16 | F: 23.11 | Max Load: 1.00 | H: 63.25 | B: 11.18 |
