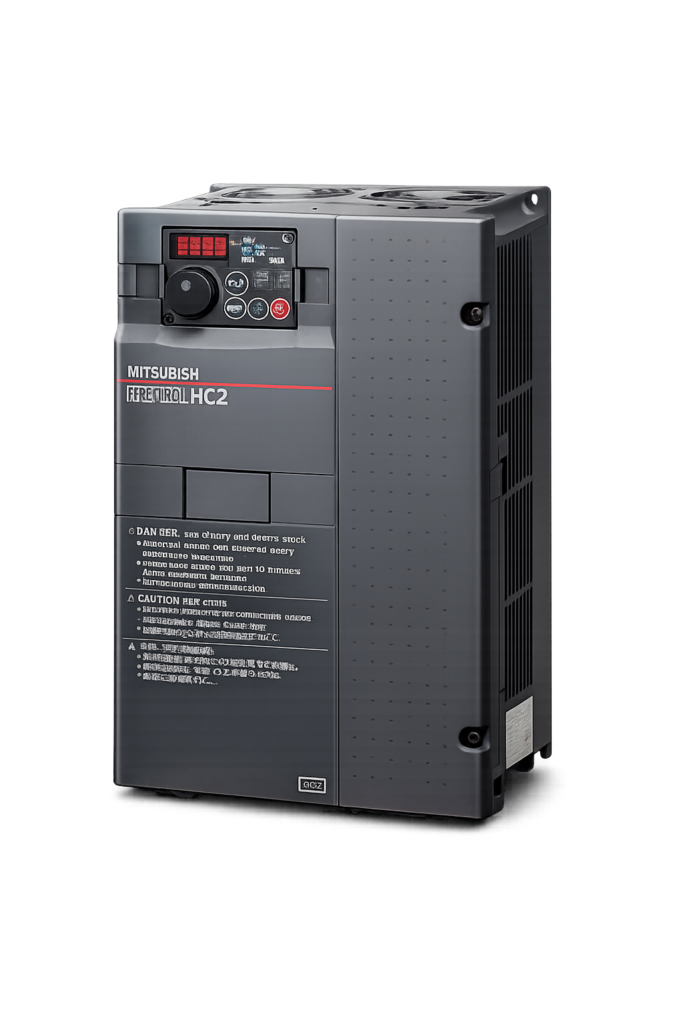

![[MITSUBISHI ELECTRIC] — FR-HC2 High Power Factor Converter (3-Phase 200V, 7.5-75kW)](https://img.prosourcemro.com/2026/06/0610-6-683x1024.png)
Converter Units
MITSUBISHI ELECTRIC
[MITSUBISHI ELECTRIC] — FR-HC2 High Power Factor Converter (3-Phase 200V, 7.5-75kW)
Family ID: MEL-FRHC2-200V
FR-HC2 high power factor converter, 3-phase 200V, 7.5-75kW. Harmonic suppression (equivalent-capacity conversion coefficient K5=0), standard power regeneration (100% continuous / 150% 60s), input power factor 0.99+, up to 10 inverters connectable.
5 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| FR-HC2-7.5K | FR-HC2 high power factor converter 7.5kW, 200V class, harmonic suppression + power regeneration | MITSUBISHI ELECTRIC | Applicable Inverter Capacity: 7.5 kW · Rated DC Output Capacity: 10.7 kW · Rated Input Voltage: 3-ph 200-220V 50Hz / 200-230V 60Hz · Rated Input Current: 33 A · Overload: 150% 60s · Permissible Voltage Fluctuation: 170-242V 50Hz / 170-253V 60Hz · Frequency Fluctuation: +/-5% · Input Power Factor: 0.99 or more (at 100% load) · Power Supply Capacity: 14 kVA · Power Regeneration: 100% torque continuous / 150% torque 60s max · Harmonic Suppression: equivalent-capacity conversion coefficient K5=0 · Multi-inverter: up to 10 units connectable · Enclosure: Closed IP20 · Cooling: Forced-air · Mass (converter): 7 kg · Included Peripherals: Reactor 1 (FR-HCL21-7.5K), Reactor 2 (FR-HCL22-7.5K), Outside Box (FR-HCB2-7.5K) | ||
| FR-HC2-15K | FR-HC2 high power factor converter 15kW, 200V class, harmonic suppression + power regeneration | MITSUBISHI ELECTRIC | Applicable Inverter Capacity: 15 kW · Rated DC Output Capacity: 19.8 kW · Rated Input Voltage: 3-ph 200-220V 50Hz / 200-230V 60Hz · Rated Input Current: 61 A · Overload: 150% 60s · Permissible Voltage Fluctuation: 170-242V 50Hz / 170-253V 60Hz · Frequency Fluctuation: +/-5% · Input Power Factor: 0.99 or more (at 100% load) · Power Supply Capacity: 25 kVA · Power Regeneration: 100% torque continuous / 150% torque 60s max · Harmonic Suppression: equivalent-capacity conversion coefficient K5=0 · Multi-inverter: up to 10 units connectable · Enclosure: Closed IP20 · Cooling: Forced-air · Mass (converter): 12 kg · Included Peripherals: Reactor 1 (FR-HCL21-15K), Reactor 2 (FR-HCL22-15K), Outside Box (FR-HCB2-15K) | ||
| FR-HC2-30K | FR-HC2 high power factor converter 30kW, 200V class, harmonic suppression + power regeneration | MITSUBISHI ELECTRIC | Applicable Inverter Capacity: 30 kW · Rated DC Output Capacity: 38 kW · Rated Input Voltage: 3-ph 200-220V 50Hz / 200-230V 60Hz · Rated Input Current: 115 A · Overload: 150% 60s · Permissible Voltage Fluctuation: 170-242V 50Hz / 170-253V 60Hz · Frequency Fluctuation: +/-5% · Input Power Factor: 0.99 or more (at 100% load) · Power Supply Capacity: 47 kVA · Power Regeneration: 100% torque continuous / 150% torque 60s max · Harmonic Suppression: equivalent-capacity conversion coefficient K5=0 · Multi-inverter: up to 10 units connectable · Enclosure: Open IP00 · Cooling: Forced-air · Mass (converter): 24 kg · Included Peripherals: Reactor 1 (FR-HCL21-30K), Reactor 2 (FR-HCL22-30K), Outside Box (FR-HCB2-30K) | ||
| FR-HC2-55K | FR-HC2 high power factor converter 55kW, 200V class, harmonic suppression + power regeneration | MITSUBISHI ELECTRIC | Applicable Inverter Capacity: 55 kW · Rated DC Output Capacity: 71 kW · Rated Input Voltage: 3-ph 200-220V 50Hz / 200-230V 60Hz · Rated Input Current: 215 A · Overload: 150% 60s · Permissible Voltage Fluctuation: 170-242V 50Hz / 170-253V 60Hz · Frequency Fluctuation: +/-5% · Input Power Factor: 0.99 or more (at 100% load) · Power Supply Capacity: 88 kVA · Power Regeneration: 100% torque continuous / 150% torque 60s max · Harmonic Suppression: equivalent-capacity conversion coefficient K5=0 · Multi-inverter: up to 10 units connectable · Enclosure: Open IP00 · Cooling: Forced-air · Mass (converter): 39 kg · Included Peripherals: Reactor 1 (FR-HCL21-55K), Reactor 2 (FR-HCL22-55K), Outside Box (FR-HCB2-55K) | ||
| FR-HC2-75K | FR-HC2 high power factor converter 75kW, 200V class, harmonic suppression + power regeneration | MITSUBISHI ELECTRIC | Applicable Inverter Capacity: 75 kW · Rated DC Output Capacity: 92 kW · Rated Input Voltage: 3-ph 200-220V 50Hz / 200-230V 60Hz · Rated Input Current: 278 A · Overload: 150% 60s · Permissible Voltage Fluctuation: 170-230V 50/60Hz · Frequency Fluctuation: +/-5% · Input Power Factor: 0.99 or more (at 100% load) · Power Supply Capacity: 110 kVA · Power Regeneration: 100% torque continuous / 150% torque 60s max · Harmonic Suppression: equivalent-capacity conversion coefficient K5=0 · Multi-inverter: up to 10 units connectable · Enclosure: Open IP00 · Cooling: Forced-air · Mass (converter): 53 kg · Included Peripherals: Reactor 1 (FR-HCL21-75K), Reactor 2 (FR-HCL22-75K), Outside Box (FR-HCB2-75K) |
