Rotary Encoder Omron

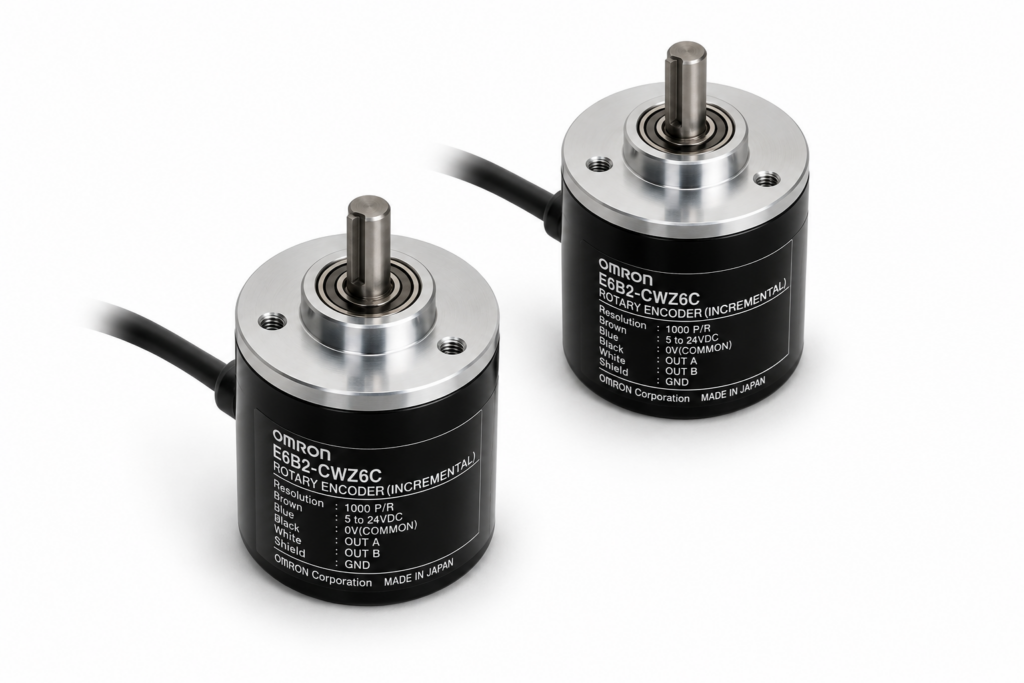

[OMRON] — E6B2-C Incremental Rotary Encoder (Voltage Output, 5~12VDC, 10~2000P/R)

Family ID: OMRON-E6B2-V

OMRON E6B2-C Series 40mm general-purpose incremental rotary encoder. Voltage output. 5~12 VDC. 10~2000 pulses/rotation (18 resolutions). A/B/Z phases. Cable 0.5m.

18 product codes available in this family

Product Codes & Specifications

	Product Code	Description	Brand	Spec
	E6B2-CWZ3E 10P/R 0.5M	E6B2-C 10P/R Voltage output 0.5m	OMRON	Output Type: Voltage output \| Power Supply: 5~12 VDC \| Resolution: 10P/R \| Output Phases: A, B, Z \| Cable: 0.5 m \| Encoder Type: Incremental \| Diameter: 40 mm
	E6B2-CWZ3E 20P/R 0.5M	E6B2-C 20P/R Voltage output 0.5m	OMRON	Output Type: Voltage output \| Power Supply: 5~12 VDC \| Resolution: 20P/R \| Output Phases: A, B, Z \| Cable: 0.5 m \| Encoder Type: Incremental \| Diameter: 40 mm
	E6B2-CWZ3E 30P/R 0.5M	E6B2-C 30P/R Voltage output 0.5m	OMRON	Output Type: Voltage output \| Power Supply: 5~12 VDC \| Resolution: 30P/R \| Output Phases: A, B, Z \| Cable: 0.5 m \| Encoder Type: Incremental \| Diameter: 40 mm
	E6B2-CWZ3E 40P/R 0.5M	E6B2-C 40P/R Voltage output 0.5m	OMRON	Output Type: Voltage output \| Power Supply: 5~12 VDC \| Resolution: 40P/R \| Output Phases: A, B, Z \| Cable: 0.5 m \| Encoder Type: Incremental \| Diameter: 40 mm
	E6B2-CWZ3E 50P/R 0.5M	E6B2-C 50P/R Voltage output 0.5m	OMRON	Output Type: Voltage output \| Power Supply: 5~12 VDC \| Resolution: 50P/R \| Output Phases: A, B, Z \| Cable: 0.5 m \| Encoder Type: Incremental \| Diameter: 40 mm
	E6B2-CWZ3E 60P/R 0.5M	E6B2-C 60P/R Voltage output 0.5m	OMRON	Output Type: Voltage output \| Power Supply: 5~12 VDC \| Resolution: 60P/R \| Output Phases: A, B, Z \| Cable: 0.5 m \| Encoder Type: Incremental \| Diameter: 40 mm
	E6B2-CWZ3E 100P/R 0.5M	E6B2-C 100P/R Voltage output 0.5m	OMRON	Output Type: Voltage output \| Power Supply: 5~12 VDC \| Resolution: 100P/R \| Output Phases: A, B, Z \| Cable: 0.5 m \| Encoder Type: Incremental \| Diameter: 40 mm
	E6B2-CWZ3E 200P/R 0.5M	E6B2-C 200P/R Voltage output 0.5m	OMRON	Output Type: Voltage output \| Power Supply: 5~12 VDC \| Resolution: 200P/R \| Output Phases: A, B, Z \| Cable: 0.5 m \| Encoder Type: Incremental \| Diameter: 40 mm
	E6B2-CWZ3E 300P/R 0.5M	E6B2-C 300P/R Voltage output 0.5m	OMRON	Output Type: Voltage output \| Power Supply: 5~12 VDC \| Resolution: 300P/R \| Output Phases: A, B, Z \| Cable: 0.5 m \| Encoder Type: Incremental \| Diameter: 40 mm
	E6B2-CWZ3E 360P/R 0.5M	E6B2-C 360P/R Voltage output 0.5m	OMRON	Output Type: Voltage output \| Power Supply: 5~12 VDC \| Resolution: 360P/R \| Output Phases: A, B, Z \| Cable: 0.5 m \| Encoder Type: Incremental \| Diameter: 40 mm
	E6B2-CWZ3E 400P/R 0.5M	E6B2-C 400P/R Voltage output 0.5m	OMRON	Output Type: Voltage output \| Power Supply: 5~12 VDC \| Resolution: 400P/R \| Output Phases: A, B, Z \| Cable: 0.5 m \| Encoder Type: Incremental \| Diameter: 40 mm
	E6B2-CWZ3E 500P/R 0.5M	E6B2-C 500P/R Voltage output 0.5m	OMRON	Output Type: Voltage output \| Power Supply: 5~12 VDC \| Resolution: 500P/R \| Output Phases: A, B, Z \| Cable: 0.5 m \| Encoder Type: Incremental \| Diameter: 40 mm
	E6B2-CWZ3E 600P/R 0.5M	E6B2-C 600P/R Voltage output 0.5m	OMRON	Output Type: Voltage output \| Power Supply: 5~12 VDC \| Resolution: 600P/R \| Output Phases: A, B, Z \| Cable: 0.5 m \| Encoder Type: Incremental \| Diameter: 40 mm
	E6B2-CWZ3E 1,000P/R 0.5M	E6B2-C 1,000P/R Voltage output 0.5m	OMRON	Output Type: Voltage output \| Power Supply: 5~12 VDC \| Resolution: 1,000P/R \| Output Phases: A, B, Z \| Cable: 0.5 m \| Encoder Type: Incremental \| Diameter: 40 mm
	E6B2-CWZ3E 1,200P/R 0.5M	E6B2-C 1,200P/R Voltage output 0.5m	OMRON	Output Type: Voltage output \| Power Supply: 5~12 VDC \| Resolution: 1,200P/R \| Output Phases: A, B, Z \| Cable: 0.5 m \| Encoder Type: Incremental \| Diameter: 40 mm
	E6B2-CWZ3E 1,500P/R 0.5M	E6B2-C 1,500P/R Voltage output 0.5m	OMRON	Output Type: Voltage output \| Power Supply: 5~12 VDC \| Resolution: 1,500P/R \| Output Phases: A, B, Z \| Cable: 0.5 m \| Encoder Type: Incremental \| Diameter: 40 mm
	E6B2-CWZ3E 1,800P/R 0.5M	E6B2-C 1,800P/R Voltage output 0.5m	OMRON	Output Type: Voltage output \| Power Supply: 5~12 VDC \| Resolution: 1,800P/R \| Output Phases: A, B, Z \| Cable: 0.5 m \| Encoder Type: Incremental \| Diameter: 40 mm
	E6B2-CWZ3E 2,000P/R 0.5M	E6B2-C 2,000P/R Voltage output 0.5m	OMRON	Output Type: Voltage output \| Power Supply: 5~12 VDC \| Resolution: 2,000P/R \| Output Phases: A, B, Z \| Cable: 0.5 m \| Encoder Type: Incremental \| Diameter: 40 mm
