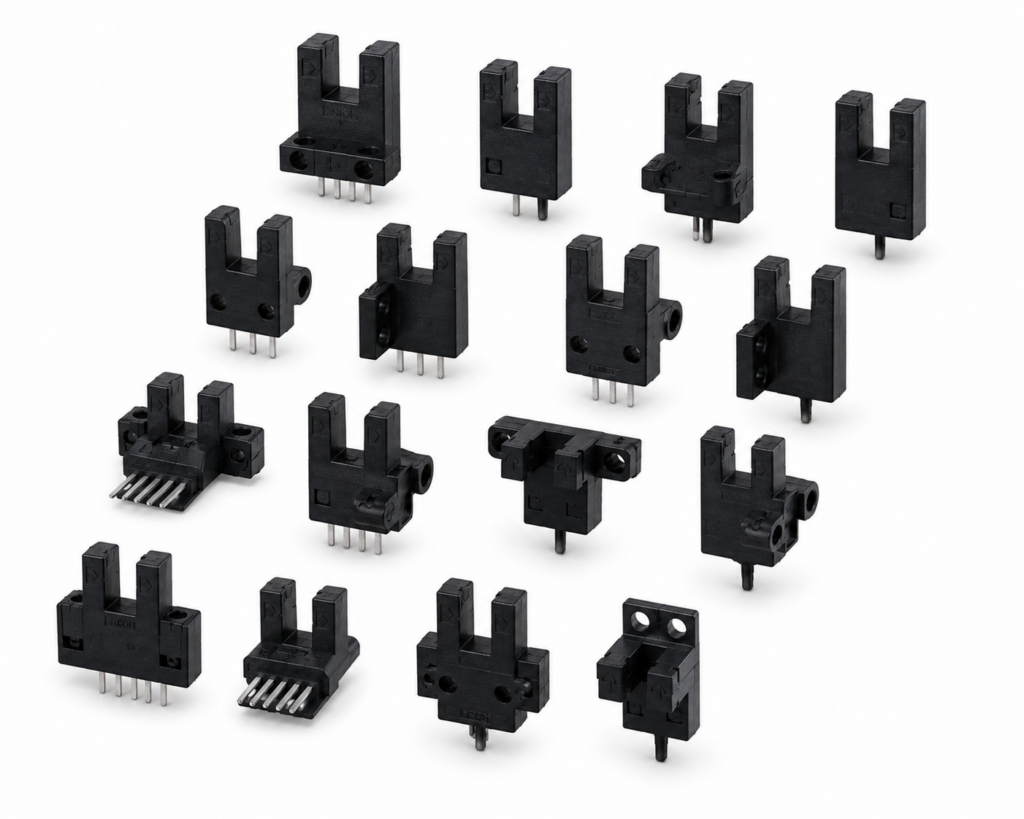

[OMRON] — EE-SX47 / EE-SX67 Slot-type Photomicrosensor (5mm Slot, NPN/PNP, 8 Shapes, Connector/Pre-wired)
Photomicro Omron

[OMRON] — EE-SX47 / EE-SX67 Slot-type Photomicrosensor (5mm Slot, NPN/PNP, 8 Shapes, Connector/Pre-wired)

Family ID: OMRON-EESX47-67

OMRON EE-SX47 / EE-SX67 Global standard slot-type photomicrosensor. 50-100mA direct switching capacity. Through-beam 5mm slot. Infrared. EE-SX67x: Dark-ON/Light-ON selectable (L terminal), NPN/PNP, 8 shapes. EE-SX47x: Light-ON fixed, NPN only, 5 shapes. Connector (4-pin) and pre-wired 1m models. Connector sold separately.

47 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
EE-SX670 EE-SX670 Standard NPN incident light connector OMRON Shape: Standard | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON selectable (L terminal) | Connection: Connector 4-pin (connector sold separately) | Note: Dark-ON/Light-ON selectable via L terminal; connector sold separately (EE-1001/1006/1009/1010) | Output: NPN | Indicator: Incident light
EE-SX670A EE-SX670A Standard NPN no-incident connector OMRON Shape: Standard | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON selectable (L terminal) | Connection: Connector 4-pin (connector sold separately) | Note: Dark-ON/Light-ON selectable via L terminal; connector sold separately (EE-1001/1006/1009/1010) | Output: NPN | Indicator: No incident light
EE-SX670P EE-SX670P Standard PNP incident light connector OMRON Shape: Standard | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON selectable (L terminal) | Connection: Connector 4-pin (connector sold separately) | Note: Dark-ON/Light-ON selectable via L terminal; connector sold separately (EE-1001/1006/1009/1010) | Output: PNP | Indicator: Incident light
EE-SX670R EE-SX670R Standard PNP no-incident connector OMRON Shape: Standard | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON selectable (L terminal) | Connection: Connector 4-pin (connector sold separately) | Note: Dark-ON/Light-ON selectable via L terminal; connector sold separately (EE-1001/1006/1009/1010) | Output: PNP | Indicator: No incident light
EE-SX671 EE-SX671 L-shaped NPN incident light connector OMRON Shape: L-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON selectable (L terminal) | Connection: Connector 4-pin (connector sold separately) | Note: Dark-ON/Light-ON selectable via L terminal; connector sold separately (EE-1001/1006/1009/1010) | Output: NPN | Indicator: Incident light
EE-SX671A EE-SX671A L-shaped NPN no-incident connector OMRON Shape: L-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON selectable (L terminal) | Connection: Connector 4-pin (connector sold separately) | Note: Dark-ON/Light-ON selectable via L terminal; connector sold separately (EE-1001/1006/1009/1010) | Output: NPN | Indicator: No incident light
EE-SX671P EE-SX671P L-shaped PNP incident light connector OMRON Shape: L-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON selectable (L terminal) | Connection: Connector 4-pin (connector sold separately) | Note: Dark-ON/Light-ON selectable via L terminal; connector sold separately (EE-1001/1006/1009/1010) | Output: PNP | Indicator: Incident light
EE-SX671R EE-SX671R L-shaped PNP no-incident connector OMRON Shape: L-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON selectable (L terminal) | Connection: Connector 4-pin (connector sold separately) | Note: Dark-ON/Light-ON selectable via L terminal; connector sold separately (EE-1001/1006/1009/1010) | Output: PNP | Indicator: No incident light
EE-SX672 EE-SX672 T-shaped 7mm NPN incident light connector OMRON Shape: T-shaped 7mm | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON selectable (L terminal) | Connection: Connector 4-pin (connector sold separately) | Note: Dark-ON/Light-ON selectable via L terminal; connector sold separately (EE-1001/1006/1009/1010) | Output: NPN | Indicator: Incident light
EE-SX672A EE-SX672A T-shaped 7mm NPN no-incident connector OMRON Shape: T-shaped 7mm | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON selectable (L terminal) | Connection: Connector 4-pin (connector sold separately) | Note: Dark-ON/Light-ON selectable via L terminal; connector sold separately (EE-1001/1006/1009/1010) | Output: NPN | Indicator: No incident light
EE-SX672P EE-SX672P T-shaped 7mm PNP incident light connector OMRON Shape: T-shaped 7mm | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON selectable (L terminal) | Connection: Connector 4-pin (connector sold separately) | Note: Dark-ON/Light-ON selectable via L terminal; connector sold separately (EE-1001/1006/1009/1010) | Output: PNP | Indicator: Incident light
EE-SX672R EE-SX672R T-shaped 7mm PNP no-incident connector OMRON Shape: T-shaped 7mm | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON selectable (L terminal) | Connection: Connector 4-pin (connector sold separately) | Note: Dark-ON/Light-ON selectable via L terminal; connector sold separately (EE-1001/1006/1009/1010) | Output: PNP | Indicator: No incident light
EE-SX673 EE-SX673 Close-mounting A NPN incident light connector OMRON Shape: Close-mounting A | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON selectable (L terminal) | Connection: Connector 4-pin (connector sold separately) | Note: Dark-ON/Light-ON selectable via L terminal; connector sold separately (EE-1001/1006/1009/1010) | Output: NPN | Indicator: Incident light
EE-SX673A EE-SX673A Close-mounting A NPN no-incident connector OMRON Shape: Close-mounting A | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON selectable (L terminal) | Connection: Connector 4-pin (connector sold separately) | Note: Dark-ON/Light-ON selectable via L terminal; connector sold separately (EE-1001/1006/1009/1010) | Output: NPN | Indicator: No incident light
EE-SX673P EE-SX673P Close-mounting A PNP incident light connector OMRON Shape: Close-mounting A | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON selectable (L terminal) | Connection: Connector 4-pin (connector sold separately) | Note: Dark-ON/Light-ON selectable via L terminal; connector sold separately (EE-1001/1006/1009/1010) | Output: PNP | Indicator: Incident light
EE-SX673R EE-SX673R Close-mounting A PNP no-incident connector OMRON Shape: Close-mounting A | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON selectable (L terminal) | Connection: Connector 4-pin (connector sold separately) | Note: Dark-ON/Light-ON selectable via L terminal; connector sold separately (EE-1001/1006/1009/1010) | Output: PNP | Indicator: No incident light
EE-SX674 EE-SX674 Close-mounting B NPN incident light connector OMRON Shape: Close-mounting B | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON selectable (L terminal) | Connection: Connector 4-pin (connector sold separately) | Note: Dark-ON/Light-ON selectable via L terminal; connector sold separately (EE-1001/1006/1009/1010) | Output: NPN | Indicator: Incident light
EE-SX674A EE-SX674A Close-mounting B NPN no-incident connector OMRON Shape: Close-mounting B | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON selectable (L terminal) | Connection: Connector 4-pin (connector sold separately) | Note: Dark-ON/Light-ON selectable via L terminal; connector sold separately (EE-1001/1006/1009/1010) | Output: NPN | Indicator: No incident light
EE-SX674P EE-SX674P Close-mounting B PNP incident light connector OMRON Shape: Close-mounting B | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON selectable (L terminal) | Connection: Connector 4-pin (connector sold separately) | Note: Dark-ON/Light-ON selectable via L terminal; connector sold separately (EE-1001/1006/1009/1010) | Output: PNP | Indicator: Incident light
EE-SX674R EE-SX674R Close-mounting B PNP no-incident connector OMRON Shape: Close-mounting B | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON selectable (L terminal) | Connection: Connector 4-pin (connector sold separately) | Note: Dark-ON/Light-ON selectable via L terminal; connector sold separately (EE-1001/1006/1009/1010) | Output: PNP | Indicator: No incident light
EE-SX675 EE-SX675 T-shaped 10mm NPN incident light connector OMRON Shape: T-shaped 10mm | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON selectable (L terminal) | Connection: Connector 4-pin (connector sold separately) | Note: Dark-ON/Light-ON selectable via L terminal; connector sold separately (EE-1001/1006/1009/1010) | Output: NPN | Indicator: Incident light
EE-SX675P EE-SX675P T-shaped 10mm PNP incident light connector OMRON Shape: T-shaped 10mm | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON selectable (L terminal) | Connection: Connector 4-pin (connector sold separately) | Note: Dark-ON/Light-ON selectable via L terminal; connector sold separately (EE-1001/1006/1009/1010) | Output: PNP | Indicator: Incident light
EE-SX676 EE-SX676 F-shaped NPN incident light connector OMRON Shape: F-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON selectable (L terminal) | Connection: Connector 4-pin (connector sold separately) | Note: Dark-ON/Light-ON selectable via L terminal; connector sold separately (EE-1001/1006/1009/1010) | Output: NPN | Indicator: Incident light
EE-SX676P EE-SX676P F-shaped PNP incident light connector OMRON Shape: F-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON selectable (L terminal) | Connection: Connector 4-pin (connector sold separately) | Note: Dark-ON/Light-ON selectable via L terminal; connector sold separately (EE-1001/1006/1009/1010) | Output: PNP | Indicator: Incident light
EE-SX677 EE-SX677 R-shaped NPN incident light connector OMRON Shape: R-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON selectable (L terminal) | Connection: Connector 4-pin (connector sold separately) | Note: Dark-ON/Light-ON selectable via L terminal; connector sold separately (EE-1001/1006/1009/1010) | Output: NPN | Indicator: Incident light
EE-SX677P EE-SX677P R-shaped PNP incident light connector OMRON Shape: R-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON selectable (L terminal) | Connection: Connector 4-pin (connector sold separately) | Note: Dark-ON/Light-ON selectable via L terminal; connector sold separately (EE-1001/1006/1009/1010) | Output: PNP | Indicator: Incident light
EE-SX470 EE-SX470 Standard NPN Light-ON connector OMRON Shape: Standard | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Light-ON fixed | Output: NPN | Indicator: Incident light | Connection: Connector 4-pin (connector sold separately) | Note: Light-ON fixed; connector sold separately
EE-SX471 EE-SX471 L-shaped NPN Light-ON connector OMRON Shape: L-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Light-ON fixed | Output: NPN | Indicator: Incident light | Connection: Connector 4-pin (connector sold separately) | Note: Light-ON fixed; connector sold separately
EE-SX472 EE-SX472 T-shaped 7mm NPN Light-ON connector OMRON Shape: T-shaped 7mm | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Light-ON fixed | Output: NPN | Indicator: Incident light | Connection: Connector 4-pin (connector sold separately) | Note: Light-ON fixed; connector sold separately
EE-SX473 EE-SX473 Close-mounting A NPN Light-ON connector OMRON Shape: Close-mounting A | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Light-ON fixed | Output: NPN | Indicator: Incident light | Connection: Connector 4-pin (connector sold separately) | Note: Light-ON fixed; connector sold separately
EE-SX474 EE-SX474 Close-mounting B NPN Light-ON connector OMRON Shape: Close-mounting B | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Light-ON fixed | Output: NPN | Indicator: Incident light | Connection: Connector 4-pin (connector sold separately) | Note: Light-ON fixed; connector sold separately
EE-SX670-WR 1M EE-SX670-WR Standard NPN pre-wired 1m OMRON Shape: Standard | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Indicator: Incident light | Note: Dark-ON/Light-ON selectable via L terminal; pre-wired 1m | Output: NPN | Connection: Pre-wired 1 m
EE-SX670P-WR 1M EE-SX670P-WR Standard PNP pre-wired 1m OMRON Shape: Standard | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Indicator: Incident light | Note: Dark-ON/Light-ON selectable via L terminal; pre-wired 1m | Output: PNP | Connection: Pre-wired 1 m
EE-SX671-WR 1M EE-SX671-WR L-shaped NPN pre-wired 1m OMRON Shape: L-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Indicator: Incident light | Note: Dark-ON/Light-ON selectable via L terminal; pre-wired 1m | Output: NPN | Connection: Pre-wired 1 m
EE-SX671P-WR 1M EE-SX671P-WR L-shaped PNP pre-wired 1m OMRON Shape: L-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Indicator: Incident light | Note: Dark-ON/Light-ON selectable via L terminal; pre-wired 1m | Output: PNP | Connection: Pre-wired 1 m
EE-SX672-WR 1M EE-SX672-WR T-shaped 7mm NPN pre-wired 1m OMRON Shape: T-shaped 7mm | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Indicator: Incident light | Note: Dark-ON/Light-ON selectable via L terminal; pre-wired 1m | Output: NPN | Connection: Pre-wired 1 m
EE-SX672P-WR 1M EE-SX672P-WR T-shaped 7mm PNP pre-wired 1m OMRON Shape: T-shaped 7mm | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Indicator: Incident light | Note: Dark-ON/Light-ON selectable via L terminal; pre-wired 1m | Output: PNP | Connection: Pre-wired 1 m
EE-SX673-WR 1M EE-SX673-WR Close-mounting A NPN pre-wired 1m OMRON Shape: Close-mounting A | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Indicator: Incident light | Note: Dark-ON/Light-ON selectable via L terminal; pre-wired 1m | Output: NPN | Connection: Pre-wired 1 m
EE-SX673P-WR 1M EE-SX673P-WR Close-mounting A PNP pre-wired 1m OMRON Shape: Close-mounting A | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Indicator: Incident light | Note: Dark-ON/Light-ON selectable via L terminal; pre-wired 1m | Output: PNP | Connection: Pre-wired 1 m
EE-SX674-WR 1M EE-SX674-WR Close-mounting B NPN pre-wired 1m OMRON Shape: Close-mounting B | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Indicator: Incident light | Note: Dark-ON/Light-ON selectable via L terminal; pre-wired 1m | Output: NPN | Connection: Pre-wired 1 m
EE-SX674P-WR 1M EE-SX674P-WR Close-mounting B PNP pre-wired 1m OMRON Shape: Close-mounting B | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Indicator: Incident light | Note: Dark-ON/Light-ON selectable via L terminal; pre-wired 1m | Output: PNP | Connection: Pre-wired 1 m
EE-SX675-WR 1M EE-SX675-WR T-shaped 10mm NPN pre-wired 1m OMRON Shape: T-shaped 10mm | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Indicator: Incident light | Note: Dark-ON/Light-ON selectable via L terminal; pre-wired 1m | Output: NPN | Connection: Pre-wired 1 m
EE-SX675P-WR 1M EE-SX675P-WR T-shaped 10mm PNP pre-wired 1m OMRON Shape: T-shaped 10mm | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Indicator: Incident light | Note: Dark-ON/Light-ON selectable via L terminal; pre-wired 1m | Output: PNP | Connection: Pre-wired 1 m
EE-SX676-WR 1M EE-SX676-WR F-shaped NPN pre-wired 1m OMRON Shape: F-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Indicator: Incident light | Note: Dark-ON/Light-ON selectable via L terminal; pre-wired 1m | Output: NPN | Connection: Pre-wired 1 m
EE-SX676P-WR 1M EE-SX676P-WR F-shaped PNP pre-wired 1m OMRON Shape: F-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Indicator: Incident light | Note: Dark-ON/Light-ON selectable via L terminal; pre-wired 1m | Output: PNP | Connection: Pre-wired 1 m
EE-SX677-WR 1M EE-SX677-WR R-shaped NPN pre-wired 1m OMRON Shape: R-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Indicator: Incident light | Note: Dark-ON/Light-ON selectable via L terminal; pre-wired 1m | Output: NPN | Connection: Pre-wired 1 m
EE-SX677P-WR 1M EE-SX677P-WR R-shaped PNP pre-wired 1m OMRON Shape: R-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Indicator: Incident light | Note: Dark-ON/Light-ON selectable via L terminal; pre-wired 1m | Output: PNP | Connection: Pre-wired 1 m
