Photomicro
Omron

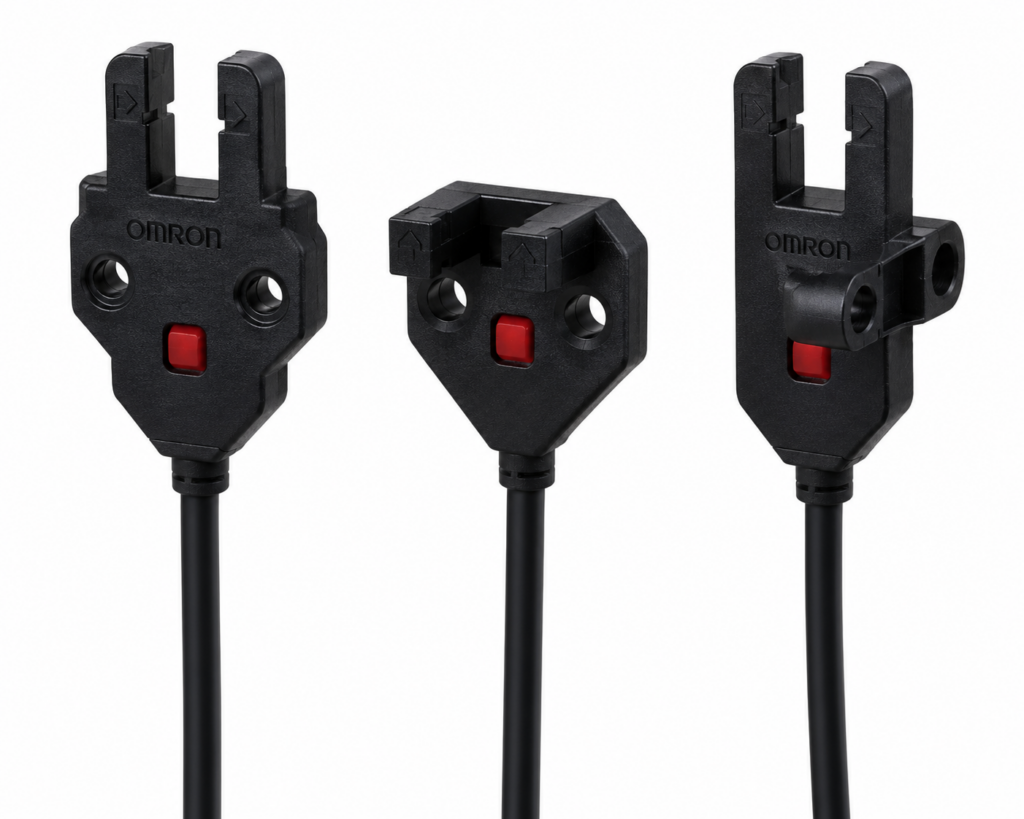

[OMRON] — EE-SX77 / EE-SX87 Slim Cable Photomicrosensor (5mm Slot, NPN/PNP, Standard/L/T-shaped)
Family ID: OMRON-EESX77-87
OMRON EE-SX77 / EE-SX87 Series slim compact photomicrosensor (non-modulated). Through-beam with 5mm slot. Infrared. Pre-wired 2m. ISO13849-1 (PLc, cat1). 3 shapes: Standard/L/T. Dark-ON and Light-ON. NPN and PNP. Indicator modes: incident light and no-incident-light.
24 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| EE-SX770 2M | EE-SX77/87 Standard Dark-ON Incident light NPN 2m | OMRON | Shape: Standard | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation Mode: Dark-ON | Indicator: Incident light | Output: NPN | Cable: Pre-wired 2 m | Standard: ISO13849-1 PLc cat1 | ||
| EE-SX770A 2M | EE-SX77/87 Standard Dark-ON No incident light NPN 2m | OMRON | Shape: Standard | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation Mode: Dark-ON | Indicator: No incident light | Output: NPN | Cable: Pre-wired 2 m | Standard: ISO13849-1 PLc cat1 | ||
| EE-SX770P 2M | EE-SX77/87 Standard Dark-ON Incident light PNP 2m | OMRON | Shape: Standard | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation Mode: Dark-ON | Indicator: Incident light | Output: PNP | Cable: Pre-wired 2 m | Standard: ISO13849-1 PLc cat1 | ||
| EE-SX770R 2M | EE-SX77/87 Standard Dark-ON No incident light PNP 2m | OMRON | Shape: Standard | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation Mode: Dark-ON | Indicator: No incident light | Output: PNP | Cable: Pre-wired 2 m | Standard: ISO13849-1 PLc cat1 | ||
| EE-SX870 2M | EE-SX77/87 Standard Light-ON Incident light NPN 2m | OMRON | Shape: Standard | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation Mode: Light-ON | Indicator: Incident light | Output: NPN | Cable: Pre-wired 2 m | Standard: ISO13849-1 PLc cat1 | ||
| EE-SX870A 2M | EE-SX77/87 Standard Light-ON No incident light NPN 2m | OMRON | Shape: Standard | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation Mode: Light-ON | Indicator: No incident light | Output: NPN | Cable: Pre-wired 2 m | Standard: ISO13849-1 PLc cat1 | ||
| EE-SX870P 2M | EE-SX77/87 Standard Light-ON Incident light PNP 2m | OMRON | Shape: Standard | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation Mode: Light-ON | Indicator: Incident light | Output: PNP | Cable: Pre-wired 2 m | Standard: ISO13849-1 PLc cat1 | ||
| EE-SX870R 2M | EE-SX77/87 Standard Light-ON No incident light PNP 2m | OMRON | Shape: Standard | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation Mode: Light-ON | Indicator: No incident light | Output: PNP | Cable: Pre-wired 2 m | Standard: ISO13849-1 PLc cat1 | ||
| EE-SX771 2M | EE-SX77/87 L-shaped Dark-ON Incident light NPN 2m | OMRON | Shape: L-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation Mode: Dark-ON | Indicator: Incident light | Output: NPN | Cable: Pre-wired 2 m | Standard: ISO13849-1 PLc cat1 | ||
| EE-SX771A 2M | EE-SX77/87 L-shaped Dark-ON No incident light NPN 2m | OMRON | Shape: L-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation Mode: Dark-ON | Indicator: No incident light | Output: NPN | Cable: Pre-wired 2 m | Standard: ISO13849-1 PLc cat1 | ||
| EE-SX771P 2M | EE-SX77/87 L-shaped Dark-ON Incident light PNP 2m | OMRON | Shape: L-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation Mode: Dark-ON | Indicator: Incident light | Output: PNP | Cable: Pre-wired 2 m | Standard: ISO13849-1 PLc cat1 | ||
| EE-SX771R 2M | EE-SX77/87 L-shaped Dark-ON No incident light PNP 2m | OMRON | Shape: L-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation Mode: Dark-ON | Indicator: No incident light | Output: PNP | Cable: Pre-wired 2 m | Standard: ISO13849-1 PLc cat1 | ||
| EE-SX871 2M | EE-SX77/87 L-shaped Light-ON Incident light NPN 2m | OMRON | Shape: L-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation Mode: Light-ON | Indicator: Incident light | Output: NPN | Cable: Pre-wired 2 m | Standard: ISO13849-1 PLc cat1 | ||
| EE-SX871A 2M | EE-SX77/87 L-shaped Light-ON No incident light NPN 2m | OMRON | Shape: L-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation Mode: Light-ON | Indicator: No incident light | Output: NPN | Cable: Pre-wired 2 m | Standard: ISO13849-1 PLc cat1 | ||
| EE-SX871P 2M | EE-SX77/87 L-shaped Light-ON Incident light PNP 2m | OMRON | Shape: L-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation Mode: Light-ON | Indicator: Incident light | Output: PNP | Cable: Pre-wired 2 m | Standard: ISO13849-1 PLc cat1 | ||
| EE-SX871R 2M | EE-SX77/87 L-shaped Light-ON No incident light PNP 2m | OMRON | Shape: L-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation Mode: Light-ON | Indicator: No incident light | Output: PNP | Cable: Pre-wired 2 m | Standard: ISO13849-1 PLc cat1 | ||
| EE-SX772 2M | EE-SX77/87 T-shaped Dark-ON Incident light NPN 2m | OMRON | Shape: T-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation Mode: Dark-ON | Indicator: Incident light | Output: NPN | Cable: Pre-wired 2 m | Standard: ISO13849-1 PLc cat1 | ||
| EE-SX772A 2M | EE-SX77/87 T-shaped Dark-ON No incident light NPN 2m | OMRON | Shape: T-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation Mode: Dark-ON | Indicator: No incident light | Output: NPN | Cable: Pre-wired 2 m | Standard: ISO13849-1 PLc cat1 | ||
| EE-SX772P 2M | EE-SX77/87 T-shaped Dark-ON Incident light PNP 2m | OMRON | Shape: T-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation Mode: Dark-ON | Indicator: Incident light | Output: PNP | Cable: Pre-wired 2 m | Standard: ISO13849-1 PLc cat1 | ||
| EE-SX772R 2M | EE-SX77/87 T-shaped Dark-ON No incident light PNP 2m | OMRON | Shape: T-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation Mode: Dark-ON | Indicator: No incident light | Output: PNP | Cable: Pre-wired 2 m | Standard: ISO13849-1 PLc cat1 | ||
| EE-SX872 2M | EE-SX77/87 T-shaped Light-ON Incident light NPN 2m | OMRON | Shape: T-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation Mode: Light-ON | Indicator: Incident light | Output: NPN | Cable: Pre-wired 2 m | Standard: ISO13849-1 PLc cat1 | ||
| EE-SX872A 2M | EE-SX77/87 T-shaped Light-ON No incident light NPN 2m | OMRON | Shape: T-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation Mode: Light-ON | Indicator: No incident light | Output: NPN | Cable: Pre-wired 2 m | Standard: ISO13849-1 PLc cat1 | ||
| EE-SX872P 2M | EE-SX77/87 T-shaped Light-ON Incident light PNP 2m | OMRON | Shape: T-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation Mode: Light-ON | Indicator: Incident light | Output: PNP | Cable: Pre-wired 2 m | Standard: ISO13849-1 PLc cat1 | ||
| EE-SX872R 2M | EE-SX77/87 T-shaped Light-ON No incident light PNP 2m | OMRON | Shape: T-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation Mode: Light-ON | Indicator: No incident light | Output: PNP | Cable: Pre-wired 2 m | Standard: ISO13849-1 PLc cat1 |
