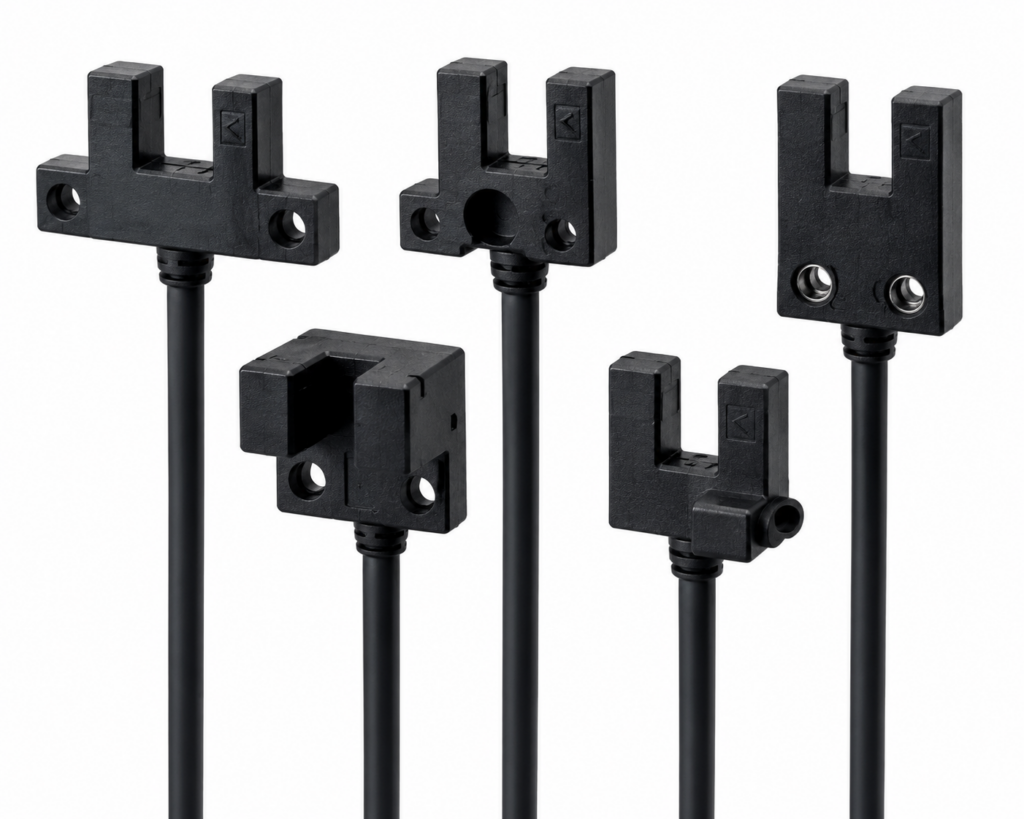

[OMRON] — EE-SX95 Ultra-compact Photomicrosensor Through-beam (5mm Slot, NPN/PNP, Standard/L/F/R/U)
Family ID: OMRON-EESX95
OMRON EE-SX95 Series ultra-compact pre-wired photomicrosensor (non-modulated). Through-beam with 5mm slot. Infrared. Light-ON and Dark-ON (2 outputs). 5 shapes: Standard/L/F/R/U. NPN: standard cable 1m, robot cable 1m, connector+robot cable 0.3m. PNP: standard cable 1m. 3m cable and PNP robot cable also available (see catalog).
20 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| EE-SX950-W 1M | EE-SX95 Standard NPN std cable 1m | OMRON | Shape: Standard | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Output Mode: Light-ON and Dark-ON (2 outputs) | Output: NPN | Connection: Pre-wired standard cable 1 m | Note: 3m cable model also available: EE-SX95x-W 3M / EE-SX95x-R 3M | ||
| EE-SX950-R 1M | EE-SX95 Standard NPN robot cable 1m | OMRON | Shape: Standard | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Output Mode: Light-ON and Dark-ON (2 outputs) | Output: NPN | Connection: Pre-wired robot cable 1 m | Note: 3m cable model also available: EE-SX95x-W 3M / EE-SX95x-R 3M | ||
| EE-SX950-C1J-R 0.3M | EE-SX95 Standard NPN connector robot cable 0.3m | OMRON | Shape: Standard | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Output Mode: Light-ON and Dark-ON (2 outputs) | Output: NPN | Connection: Pre-wired connector + robot cable 0.3 m | ||
| EE-SX950P-W 1M | EE-SX95 Standard PNP std cable 1m | OMRON | Shape: Standard | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Output Mode: Light-ON and Dark-ON (2 outputs) | Output: PNP | Connection: Pre-wired standard cable 1 m | Note: PNP robot cable model also available: EE-SX95xP-R 1M | ||
| EE-SX951-W 1M | EE-SX95 L-shaped NPN std cable 1m | OMRON | Shape: L-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Output Mode: Light-ON and Dark-ON (2 outputs) | Output: NPN | Connection: Pre-wired standard cable 1 m | Note: 3m cable model also available: EE-SX95x-W 3M / EE-SX95x-R 3M | ||
| EE-SX951-R 1M | EE-SX95 L-shaped NPN robot cable 1m | OMRON | Shape: L-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Output Mode: Light-ON and Dark-ON (2 outputs) | Output: NPN | Connection: Pre-wired robot cable 1 m | Note: 3m cable model also available: EE-SX95x-W 3M / EE-SX95x-R 3M | ||
| EE-SX951-C1J-R 0.3M | EE-SX95 L-shaped NPN connector robot cable 0.3m | OMRON | Shape: L-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Output Mode: Light-ON and Dark-ON (2 outputs) | Output: NPN | Connection: Pre-wired connector + robot cable 0.3 m | ||
| EE-SX951P-W 1M | EE-SX95 L-shaped PNP std cable 1m | OMRON | Shape: L-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Output Mode: Light-ON and Dark-ON (2 outputs) | Output: PNP | Connection: Pre-wired standard cable 1 m | Note: PNP robot cable model also available: EE-SX95xP-R 1M | ||
| EE-SX952-W 1M | EE-SX95 F-shaped NPN std cable 1m | OMRON | Shape: F-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Output Mode: Light-ON and Dark-ON (2 outputs) | Output: NPN | Connection: Pre-wired standard cable 1 m | Note: 3m cable model also available: EE-SX95x-W 3M / EE-SX95x-R 3M | ||
| EE-SX952-R 1M | EE-SX95 F-shaped NPN robot cable 1m | OMRON | Shape: F-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Output Mode: Light-ON and Dark-ON (2 outputs) | Output: NPN | Connection: Pre-wired robot cable 1 m | Note: 3m cable model also available: EE-SX95x-W 3M / EE-SX95x-R 3M | ||
| EE-SX952-C1J-R 0.3M | EE-SX95 F-shaped NPN connector robot cable 0.3m | OMRON | Shape: F-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Output Mode: Light-ON and Dark-ON (2 outputs) | Output: NPN | Connection: Pre-wired connector + robot cable 0.3 m | ||
| EE-SX952P-W 1M | EE-SX95 F-shaped PNP std cable 1m | OMRON | Shape: F-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Output Mode: Light-ON and Dark-ON (2 outputs) | Output: PNP | Connection: Pre-wired standard cable 1 m | Note: PNP robot cable model also available: EE-SX95xP-R 1M | ||
| EE-SX953-W 1M | EE-SX95 R-shaped NPN std cable 1m | OMRON | Shape: R-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Output Mode: Light-ON and Dark-ON (2 outputs) | Output: NPN | Connection: Pre-wired standard cable 1 m | Note: 3m cable model also available: EE-SX95x-W 3M / EE-SX95x-R 3M | ||
| EE-SX953-R 1M | EE-SX95 R-shaped NPN robot cable 1m | OMRON | Shape: R-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Output Mode: Light-ON and Dark-ON (2 outputs) | Output: NPN | Connection: Pre-wired robot cable 1 m | Note: 3m cable model also available: EE-SX95x-W 3M / EE-SX95x-R 3M | ||
| EE-SX953-C1J-R 0.3M | EE-SX95 R-shaped NPN connector robot cable 0.3m | OMRON | Shape: R-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Output Mode: Light-ON and Dark-ON (2 outputs) | Output: NPN | Connection: Pre-wired connector + robot cable 0.3 m | ||
| EE-SX953P-W 1M | EE-SX95 R-shaped PNP std cable 1m | OMRON | Shape: R-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Output Mode: Light-ON and Dark-ON (2 outputs) | Output: PNP | Connection: Pre-wired standard cable 1 m | Note: PNP robot cable model also available: EE-SX95xP-R 1M | ||
| EE-SX954-W 1M | EE-SX95 U-shaped NPN std cable 1m | OMRON | Shape: U-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Output Mode: Light-ON and Dark-ON (2 outputs) | Output: NPN | Connection: Pre-wired standard cable 1 m | Note: 3m cable model also available: EE-SX95x-W 3M / EE-SX95x-R 3M | ||
| EE-SX954-R 1M | EE-SX95 U-shaped NPN robot cable 1m | OMRON | Shape: U-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Output Mode: Light-ON and Dark-ON (2 outputs) | Output: NPN | Connection: Pre-wired robot cable 1 m | Note: 3m cable model also available: EE-SX95x-W 3M / EE-SX95x-R 3M | ||
| EE-SX954-C1J-R 0.3M | EE-SX95 U-shaped NPN connector robot cable 0.3m | OMRON | Shape: U-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Output Mode: Light-ON and Dark-ON (2 outputs) | Output: NPN | Connection: Pre-wired connector + robot cable 0.3 m | ||
| EE-SX954P-W 1M | EE-SX95 U-shaped PNP std cable 1m | OMRON | Shape: U-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Output Mode: Light-ON and Dark-ON (2 outputs) | Output: PNP | Connection: Pre-wired standard cable 1 m | Note: PNP robot cable model also available: EE-SX95xP-R 1M |
