![[OMRON] — EE-SX97 Slot-type Photomicrosensor Built-in Connector (5mm Slot, NPN/PNP, 7 Shapes)](https://prosourcemro.com/wp-content/uploads/2026/05/001-401-1024x819.png)
Photomicro
Omron

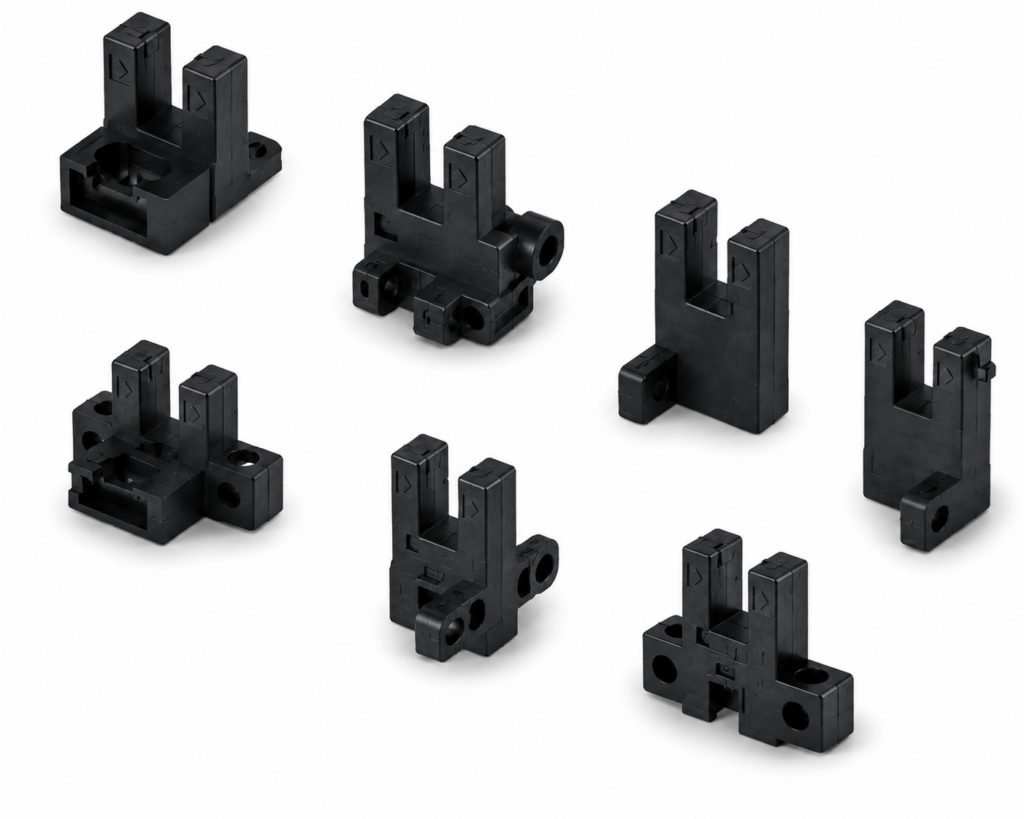

[OMRON] — EE-SX97 Slot-type Photomicrosensor Built-in Connector (5mm Slot, NPN/PNP, 7 Shapes)
Family ID: OMRON-EESX97
OMRON EE-SX97 Series slot-type photomicrosensor with built-in connector. Through-beam 5mm slot. Infrared. Dark-ON/Light-ON 2 outputs. Incident light indicator. 7 shapes: Standard/L/T-7mm/Close-mounting/T-10mm/F/R. NPN and PNP. Connector cable sold separately (EE-1017 1M/3M, EE-1017-R robot cable).
14 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| EE-SX970-C1 | EE-SX970 Standard NPN 2-output built-in conn | OMRON | Shape: Standard | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON (2 outputs) | Indicator: Incident light | Connection: Built-in connector 4-pin (EE-1017 cable sold separately) | Note: Connector cable sold separately: EE-1017 1M/3M (standard) or EE-1017-R 1M/3M (robot) | Output: NPN | ||
| EE-SX970P-C1 | EE-SX970P Standard PNP 2-output built-in conn | OMRON | Shape: Standard | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON (2 outputs) | Indicator: Incident light | Connection: Built-in connector 4-pin (EE-1017 cable sold separately) | Note: Connector cable sold separately: EE-1017 1M/3M (standard) or EE-1017-R 1M/3M (robot) | Output: PNP | ||
| EE-SX971-C1 | EE-SX971 L-shaped NPN 2-output built-in conn | OMRON | Shape: L-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON (2 outputs) | Indicator: Incident light | Connection: Built-in connector 4-pin (EE-1017 cable sold separately) | Note: Connector cable sold separately: EE-1017 1M/3M (standard) or EE-1017-R 1M/3M (robot) | Output: NPN | ||
| EE-SX971P-C1 | EE-SX971P L-shaped PNP 2-output built-in conn | OMRON | Shape: L-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON (2 outputs) | Indicator: Incident light | Connection: Built-in connector 4-pin (EE-1017 cable sold separately) | Note: Connector cable sold separately: EE-1017 1M/3M (standard) or EE-1017-R 1M/3M (robot) | Output: PNP | ||
| EE-SX972-C1 | EE-SX972 T-shaped 7mm NPN 2-output built-in conn | OMRON | Shape: T-shaped 7mm | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON (2 outputs) | Indicator: Incident light | Connection: Built-in connector 4-pin (EE-1017 cable sold separately) | Note: Connector cable sold separately: EE-1017 1M/3M (standard) or EE-1017-R 1M/3M (robot) | Output: NPN | ||
| EE-SX972P-C1 | EE-SX972P T-shaped 7mm PNP 2-output built-in conn | OMRON | Shape: T-shaped 7mm | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON (2 outputs) | Indicator: Incident light | Connection: Built-in connector 4-pin (EE-1017 cable sold separately) | Note: Connector cable sold separately: EE-1017 1M/3M (standard) or EE-1017-R 1M/3M (robot) | Output: PNP | ||
| EE-SX974-C1 | EE-SX974 Close-mounting NPN 2-output built-in conn | OMRON | Shape: Close-mounting | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON (2 outputs) | Indicator: Incident light | Connection: Built-in connector 4-pin (EE-1017 cable sold separately) | Note: Connector cable sold separately: EE-1017 1M/3M (standard) or EE-1017-R 1M/3M (robot) | Output: NPN | ||
| EE-SX974P-C1 | EE-SX974P Close-mounting PNP 2-output built-in conn | OMRON | Shape: Close-mounting | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON (2 outputs) | Indicator: Incident light | Connection: Built-in connector 4-pin (EE-1017 cable sold separately) | Note: Connector cable sold separately: EE-1017 1M/3M (standard) or EE-1017-R 1M/3M (robot) | Output: PNP | ||
| EE-SX975-C1 | EE-SX975 T-shaped 10mm NPN 2-output built-in conn | OMRON | Shape: T-shaped 10mm | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON (2 outputs) | Indicator: Incident light | Connection: Built-in connector 4-pin (EE-1017 cable sold separately) | Note: Connector cable sold separately: EE-1017 1M/3M (standard) or EE-1017-R 1M/3M (robot) | Output: NPN | ||
| EE-SX975P-C1 | EE-SX975P T-shaped 10mm PNP 2-output built-in conn | OMRON | Shape: T-shaped 10mm | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON (2 outputs) | Indicator: Incident light | Connection: Built-in connector 4-pin (EE-1017 cable sold separately) | Note: Connector cable sold separately: EE-1017 1M/3M (standard) or EE-1017-R 1M/3M (robot) | Output: PNP | ||
| EE-SX976-C1 | EE-SX976 F-shaped NPN 2-output built-in conn | OMRON | Shape: F-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON (2 outputs) | Indicator: Incident light | Connection: Built-in connector 4-pin (EE-1017 cable sold separately) | Note: Connector cable sold separately: EE-1017 1M/3M (standard) or EE-1017-R 1M/3M (robot) | Output: NPN | ||
| EE-SX976P-C1 | EE-SX976P F-shaped PNP 2-output built-in conn | OMRON | Shape: F-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON (2 outputs) | Indicator: Incident light | Connection: Built-in connector 4-pin (EE-1017 cable sold separately) | Note: Connector cable sold separately: EE-1017 1M/3M (standard) or EE-1017-R 1M/3M (robot) | Output: PNP | ||
| EE-SX977-C1 | EE-SX977 R-shaped NPN 2-output built-in conn | OMRON | Shape: R-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON (2 outputs) | Indicator: Incident light | Connection: Built-in connector 4-pin (EE-1017 cable sold separately) | Note: Connector cable sold separately: EE-1017 1M/3M (standard) or EE-1017-R 1M/3M (robot) | Output: NPN | ||
| EE-SX977P-C1 | EE-SX977P R-shaped PNP 2-output built-in conn | OMRON | Shape: R-shaped | Sensing Method: Through-beam with slot | Slot Width: 5 mm | Light: Infrared | Operation: Dark-ON/Light-ON (2 outputs) | Indicator: Incident light | Connection: Built-in connector 4-pin (EE-1017 cable sold separately) | Note: Connector cable sold separately: EE-1017 1M/3M (standard) or EE-1017-R 1M/3M (robot) | Output: PNP |
