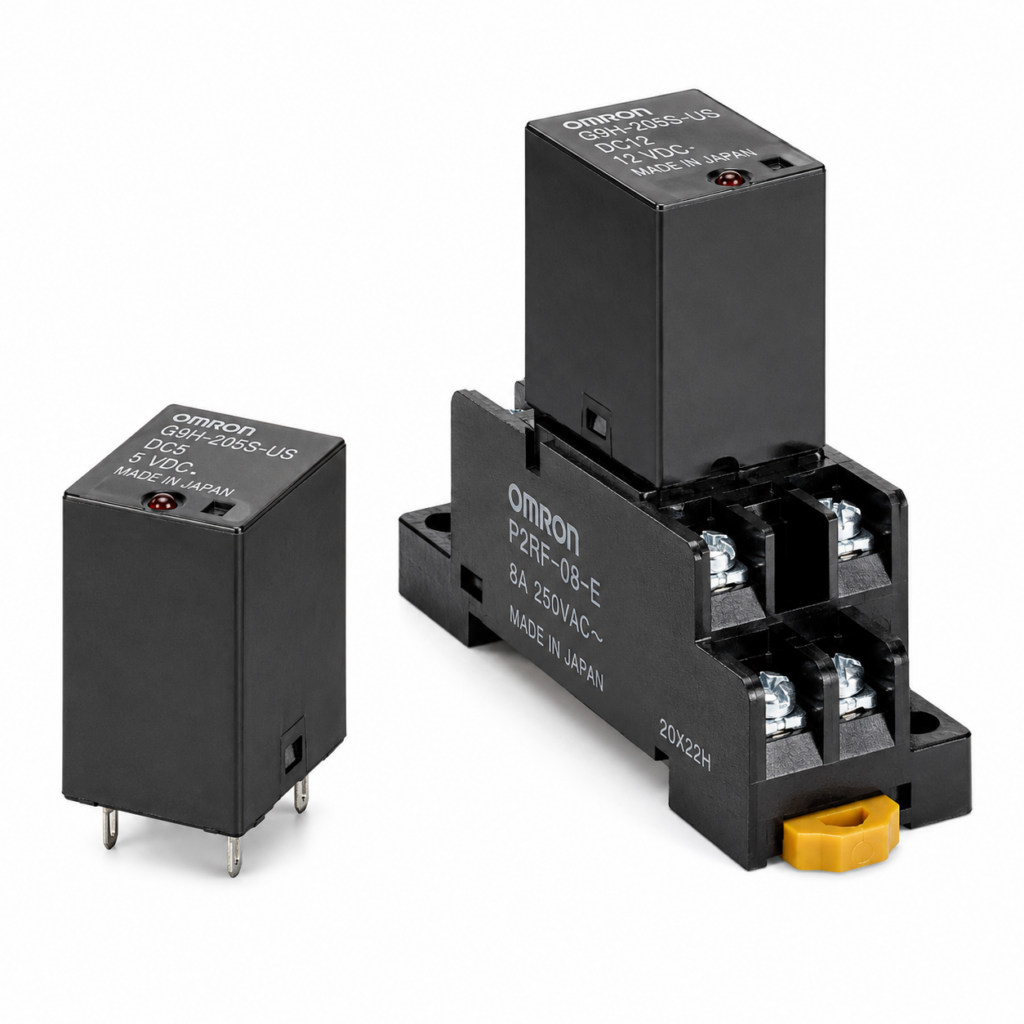

[OMRON] — G9H Hybrid Power Relay (Magnetic+SSR, 5/10A, 100-240VAC, 10M ops, 5/12/24VDC)
Family ID: OMRON-G9H
Hybridization of a Magnetic Relay and an SSR Achieves 10-A Switching for 10 Million Operations.
22 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| G9H-205S-US DC5 | G9H 5A 100-240VAC 5 VDC | OMRON | Type: G9H Hybrid Power Relay (Magnetic+SSR) | Load: 5A / 100-240 VAC | Input Voltage: 5 VDC | Zero Cross: No | Indicator: Yes | Isolation: Relay + Photocouplers | Life: 10 million operations | Note: Labeled 250VAC on product. Safety standard certified models available on request. | ||
| G9H-205S-US DC12 | G9H 5A 100-240VAC 12 VDC | OMRON | Type: G9H Hybrid Power Relay (Magnetic+SSR) | Load: 5A / 100-240 VAC | Input Voltage: 12 VDC | Zero Cross: No | Indicator: Yes | Isolation: Relay + Photocouplers | Life: 10 million operations | Note: Labeled 250VAC on product. Safety standard certified models available on request. | ||
| G9H-205S-US DC24 | G9H 5A 100-240VAC 24 VDC | OMRON | Type: G9H Hybrid Power Relay (Magnetic+SSR) | Load: 5A / 100-240 VAC | Input Voltage: 24 VDC | Zero Cross: No | Indicator: Yes | Isolation: Relay + Photocouplers | Life: 10 million operations | Note: Labeled 250VAC on product. Safety standard certified models available on request. | ||
| G9H-210S-US DC5 | G9H 10A 100-240VAC 5 VDC | OMRON | Type: G9H Hybrid Power Relay (Magnetic+SSR) | Load: 10A / 100-240 VAC | Input Voltage: 5 VDC | Zero Cross: No | Indicator: Yes | Isolation: Relay + Photocouplers | Life: 10 million operations | Note: Labeled 250VAC on product. Safety standard certified models available on request. | ||
| G9H-210S-US DC12 | G9H 10A 100-240VAC 12 VDC | OMRON | Type: G9H Hybrid Power Relay (Magnetic+SSR) | Load: 10A / 100-240 VAC | Input Voltage: 12 VDC | Zero Cross: No | Indicator: Yes | Isolation: Relay + Photocouplers | Life: 10 million operations | Note: Labeled 250VAC on product. Safety standard certified models available on request. | ||
| G9H-210S-US DC24 | G9H 10A 100-240VAC 24 VDC | OMRON | Type: G9H Hybrid Power Relay (Magnetic+SSR) | Load: 10A / 100-240 VAC | Input Voltage: 24 VDC | Zero Cross: No | Indicator: Yes | Isolation: Relay + Photocouplers | Life: 10 million operations | Note: Labeled 250VAC on product. Safety standard certified models available on request. | ||
| PTF-08-PU | G9H Socket Front Push-In | OMRON | Type: G9H Connection Socket | Terminal: Push-In Plus | Mounting: Front | ||
| PTF08A | G9H Socket Front Screw | OMRON | Type: G9H Connection Socket | Terminal: Screw | Mounting: Front | ||
| PTFZ-08-E | G9H Socket Front Screw M3 | OMRON | Type: G9H Connection Socket | Terminal: Screw M3 finger-protect | Mounting: Front | ||
| PT-08 | G9H Socket Back Solder | OMRON | Type: G9H Connection Socket | Terminal: Solder | Mounting: Back | ||
| PT08-0 | G9H Socket Back PCB | OMRON | Type: G9H Connection Socket | Terminal: PCB | Mounting: Back | ||
| PT08QN | G9H Socket Back Wrap | OMRON | Type: G9H Connection Socket | Terminal: Wrap | Mounting: Back | ||
| PYC-A1 | G9H Hold-down Clip (front, set of 2) | OMRON | Type: G9H Hold-down Clip | Description: Hold-down Clip (front, set of 2) | ||
| PYC-P | G9H Hold-down Clip (back) | OMRON | Type: G9H Hold-down Clip | Description: Hold-down Clip (back) | ||
| PYC-S | G9H Hold-down Clip S (back) | OMRON | Type: G9H Hold-down Clip | Description: Hold-down Clip S (back) | ||
| PYP-1 | G9H Socket Mounting Plate (min 10) | OMRON | Type: G9H Socket Mounting Plate | Description: Socket Mounting Plate (min 10) | ||
| PYP-18 | G9H Socket Mounting Plate 18 (min 1) | OMRON | Type: G9H Socket Mounting Plate | Description: Socket Mounting Plate 18 (min 1) | ||
| PFP-100N | G9H DIN Track 1m | OMRON | Type: G9H DIN Track Part | Description: DIN Track 1m | ||
| PFP-50N | G9H DIN Track 0.5m | OMRON | Type: G9H DIN Track Part | Description: DIN Track 0.5m | ||
| PFP-100N2 | G9H DIN Track Deep 1m | OMRON | Type: G9H DIN Track Part | Description: DIN Track Deep 1m | ||
| PFP-M | G9H End Plate | OMRON | Type: G9H DIN Track Part | Description: End Plate | ||
| PFP-S | G9H Spacer | OMRON | Type: G9H DIN Track Part | Description: Spacer |
