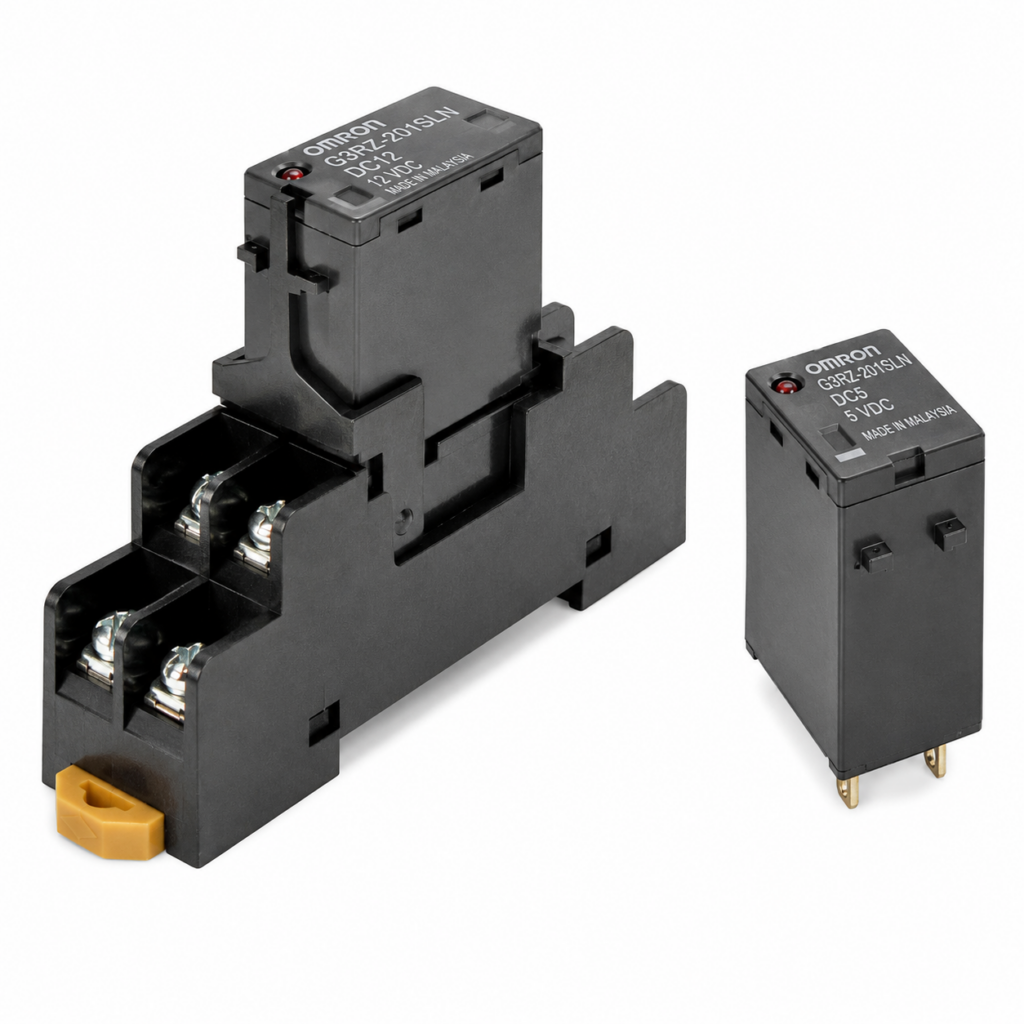

[OMRON] — G3RZ Power MOS FET Relay (G2R Profile, 1A AC+DC, 5/12/24VDC, Photovoltaic)
Family ID: OMRON-G3RZ
Power MOS FET Relays with the Same Shape as the G2R for Both AC and DC, Capable of 1 A Load Switching
26 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| G3RZ-201SLN DC5 | G3RZ 1A AC/DC 5VDC | OMRON | Type: G3RZ Power MOS FET Relay | Load: 1A / 5-240VAC or 5-100VDC | Input Voltage: 5 VDC | Zero Cross: No | Indicator: Yes | Isolation: Photovoltaic coupler | Note: Specify rated input voltage (5/12/24 VDC) when ordering | ||
| G3RZ-201SLN DC12 | G3RZ 1A AC/DC 12VDC | OMRON | Type: G3RZ Power MOS FET Relay | Load: 1A / 5-240VAC or 5-100VDC | Input Voltage: 12 VDC | Zero Cross: No | Indicator: Yes | Isolation: Photovoltaic coupler | Note: Specify rated input voltage (5/12/24 VDC) when ordering | ||
| G3RZ-201SLN DC24 | G3RZ 1A AC/DC 24VDC | OMRON | Type: G3RZ Power MOS FET Relay | Load: 1A / 5-240VAC or 5-100VDC | Input Voltage: 24 VDC | Zero Cross: No | Indicator: Yes | Isolation: Photovoltaic coupler | Note: Specify rated input voltage (5/12/24 VDC) when ordering | ||
| P2RFZ-05 | G3RZ Socket Front Screw (t | OMRON | Type: G3RZ Connection Socket | Terminal: Screw (terminal cover) | Mounting: Front | ||
| P2RFZ-05-E | G3RZ Socket Front Screw M3 | OMRON | Type: G3RZ Connection Socket | Terminal: Screw M3 finger-protect | Mounting: Front | ||
| P2RF-05-PU | G3RZ Socket Front Push-In | OMRON | Type: G3RZ Connection Socket | Terminal: Push-In Plus | Mounting: Front | ||
| P2R-05P | G3RZ Socket Back PCB | OMRON | Type: G3RZ Connection Socket | Terminal: PCB | Mounting: Back | ||
| P2R-057P | G3RZ Socket Back PCB (alt | OMRON | Type: G3RZ Connection Socket | Terminal: PCB (alt) | Mounting: Back | ||
| P2R-05A | G3RZ Socket Back Solder | OMRON | Type: G3RZ Connection Socket | Terminal: Solder | Mounting: Back | ||
| PYDN-7.75-020[] | G3RZ Short Bar 2-pole Push-In | OMRON | Type: G3RZ Short Bar (Push-In P2RF-05-PU) | Poles: 2 | Colors: R=Red / S=Blue / Y=Yellow | Note: Replace [] with color code | ||
| PYDN-7.75-030[] | G3RZ Short Bar 3-pole Push-In | OMRON | Type: G3RZ Short Bar (Push-In P2RF-05-PU) | Poles: 3 | Colors: R=Red / S=Blue / Y=Yellow | Note: Replace [] with color code | ||
| PYDN-7.75-040[] | G3RZ Short Bar 4-pole Push-In | OMRON | Type: G3RZ Short Bar (Push-In P2RF-05-PU) | Poles: 4 | Colors: R=Red / S=Blue / Y=Yellow | Note: Replace [] with color code | ||
| PYDN-7.75-200[] | G3RZ Short Bar 20-pole Push-In | OMRON | Type: G3RZ Short Bar (Push-In P2RF-05-PU) | Poles: 20 | Colors: R=Red / S=Blue / Y=Yellow | Note: Replace [] with color code | ||
| PYDN-15.5-080[] | G3RZ Short Bar 8 coil-pole Push-In | OMRON | Type: G3RZ Short Bar (Push-In P2RF-05-PU) | Poles: 8 coil | Colors: R=Red / S=Blue / Y=Yellow | Note: Replace [] with color code | ||
| P2DN-15.7-100S | G3RZ Short Bar Screw 15.7mm (P2RFZ-05-E) | OMRON | Type: G3RZ Accessory | Description: Short Bar Screw 15.7mm (P2RFZ-05-E) | ||
| P2DN-19.4-100S | G3RZ Short Bar Screw 19.4mm (P2RFZ-05) | OMRON | Type: G3RZ Accessory | Description: Short Bar Screw 19.4mm (P2RFZ-05) | ||
| P2DN-CP100 | G3RZ Short Bar Cap | OMRON | Type: G3RZ Accessory | Description: Short Bar Cap | ||
| P2CZ-C | G3RZ Terminal Cover for P2RFZ-05 | OMRON | Type: G3RZ Accessory | Description: Terminal Cover for P2RFZ-05 | ||
| XW5Z-P4.0LB1 | G3RZ Label for P2RF-05-PU (1 sheet/60 pcs) | OMRON | Type: G3RZ Accessory | Description: Label for P2RF-05-PU (1 sheet/60 pcs) | ||
| XW5Z-P2.5LB1 | G3RZ Label for P2RFZ-05-E (1 sheet/72 pcs) | OMRON | Type: G3RZ Accessory | Description: Label for P2RFZ-05-E (1 sheet/72 pcs) | ||
| PFP-100N | G3RZ DIN Track 1m | OMRON | Type: G3RZ Accessory | Description: DIN Track 1m | ||
| PFP-50N | G3RZ DIN Track 0.5m | OMRON | Type: G3RZ Accessory | Description: DIN Track 0.5m | ||
| PFP-100N2 | G3RZ DIN Track Deep 1m | OMRON | Type: G3RZ Accessory | Description: DIN Track Deep 1m | ||
| PFP-M | G3RZ End Plate | OMRON | Type: G3RZ Accessory | Description: End Plate | ||
| PFP-S | G3RZ Spacer | OMRON | Type: G3RZ Accessory | Description: Spacer | ||
| P2R-P | G3RZ Back Socket Mounting Plate (5 sockets) | OMRON | Type: G3RZ Accessory | Description: Back Socket Mounting Plate (5 sockets) |
