Relays
Omron

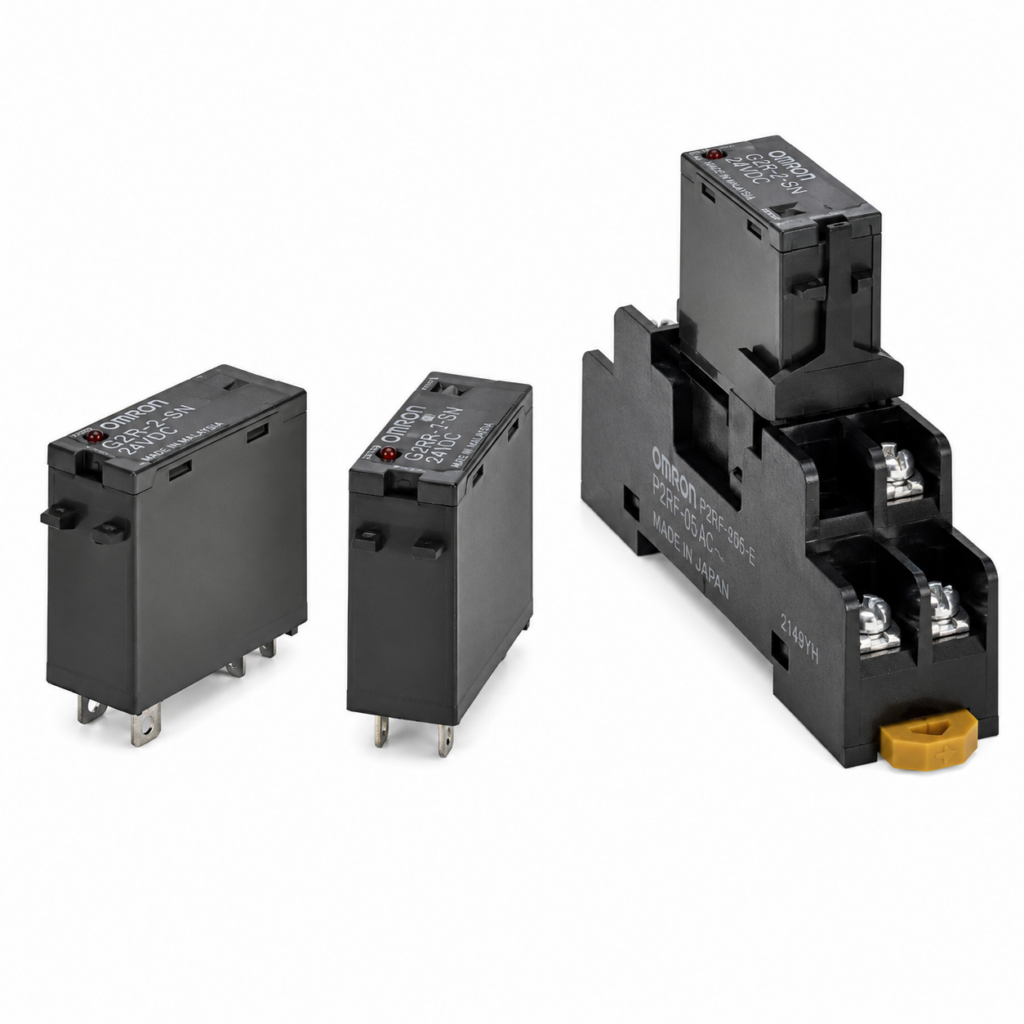

[OMRON] — G3R-I/O SSR Sockets and Accessories (Push-In+Screw+PCB+Solder, Short Bars, DIN)
Family ID: OMRON-G3R-IO-PARTS
SSR with Plug-in Terminals The Same Shape as the G2R-1-S Power Relays
23 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| P2RFZ-05 | G3R Socket Front Screw (t | OMRON | Type: G3R-I/O Connection Socket | Terminal: Screw (terminal cover) | Mounting: Front | ||
| P2RFZ-05-E | G3R Socket Front Screw M3 | OMRON | Type: G3R-I/O Connection Socket | Terminal: Screw M3 finger-protect | Mounting: Front | ||
| P2RF-05-PU | G3R Socket Front Push-In | OMRON | Type: G3R-I/O Connection Socket | Terminal: Push-In Plus | Mounting: Front | ||
| P2R-05P | G3R Socket Back PCB | OMRON | Type: G3R-I/O Connection Socket | Terminal: PCB | Mounting: Back | ||
| P2R-057P | G3R Socket Back PCB (alt | OMRON | Type: G3R-I/O Connection Socket | Terminal: PCB (alt) | Mounting: Back | ||
| P2R-05A | G3R Socket Back Solder | OMRON | Type: G3R-I/O Connection Socket | Terminal: Solder | Mounting: Back | ||
| PYDN-7.75-020[] | G3R Short Bar 2-pole Push-In | OMRON | Type: G3R-I/O Short Bar (Push-In Plus P2RF-05-PU) | Poles: 2 | Colors: R=Red / S=Blue / Y=Yellow | Max Current: 20A | Note: Replace [] with color code | ||
| PYDN-7.75-030[] | G3R Short Bar 3-pole Push-In | OMRON | Type: G3R-I/O Short Bar (Push-In Plus P2RF-05-PU) | Poles: 3 | Colors: R=Red / S=Blue / Y=Yellow | Max Current: 20A | Note: Replace [] with color code | ||
| PYDN-7.75-040[] | G3R Short Bar 4-pole Push-In | OMRON | Type: G3R-I/O Short Bar (Push-In Plus P2RF-05-PU) | Poles: 4 | Colors: R=Red / S=Blue / Y=Yellow | Max Current: 20A | Note: Replace [] with color code | ||
| PYDN-7.75-200[] | G3R Short Bar 20-pole Push-In | OMRON | Type: G3R-I/O Short Bar (Push-In Plus P2RF-05-PU) | Poles: 20 | Colors: R=Red / S=Blue / Y=Yellow | Max Current: 20A | Note: Replace [] with color code | ||
| PYDN-15.5-080[] | G3R Short Bar 8 coil-pole Push-In | OMRON | Type: G3R-I/O Short Bar (Push-In Plus P2RF-05-PU) | Poles: 8 coil | Colors: R=Red / S=Blue / Y=Yellow | Max Current: 20A | Note: Replace [] with color code | ||
| P2DN-15.7-100S | G3R Short Bar Screw 15.7mm | OMRON | Type: G3R-I/O Short Bar (Screw) | Pitch: 15.7mm | Applicable: P2RFZ-05-E | Note: 10 short bars + 20 caps per set | ||
| P2DN-19.4-100S | G3R Short Bar Screw 19.4mm | OMRON | Type: G3R-I/O Short Bar (Screw) | Pitch: 19.4mm | Applicable: P2RFZ-05 | Note: 10 short bars + 20 caps per set | ||
| P2DN-CP100 | G3R Short Bar Cap | OMRON | Type: G3R-I/O Accessory | Description: Short Bar Cap | ||
| P2CZ-C | G3R Terminal Cover for P2RFZ-05 | OMRON | Type: G3R-I/O Accessory | Description: Terminal Cover for P2RFZ-05 | ||
| XW5Z-P4.0LB1 | G3R Label for P2RF-05-PU (1 sheet/60 pcs) | OMRON | Type: G3R-I/O Accessory | Description: Label for P2RF-05-PU (1 sheet/60 pcs) | ||
| XW5Z-P2.5LB1 | G3R Label for P2RFZ-05-E (1 sheet/72 pcs) | OMRON | Type: G3R-I/O Accessory | Description: Label for P2RFZ-05-E (1 sheet/72 pcs) | ||
| PFP-100N | G3R DIN Track 1m | OMRON | Type: G3R-I/O Accessory | Description: DIN Track 1m | ||
| PFP-50N | G3R DIN Track 0.5m | OMRON | Type: G3R-I/O Accessory | Description: DIN Track 0.5m | ||
| PFP-100N2 | G3R DIN Track Deep 1m | OMRON | Type: G3R-I/O Accessory | Description: DIN Track Deep 1m | ||
| PFP-M | G3R End Plate | OMRON | Type: G3R-I/O Accessory | Description: End Plate | ||
| PFP-S | G3R Spacer | OMRON | Type: G3R-I/O Accessory | Description: Spacer | ||
| P2R-P | G3R Back Socket Mounting Plate (5 sockets) | OMRON | Type: G3R-I/O Accessory | Description: Back Socket Mounting Plate (5 sockets) |
