Monitoring Relays
Omron

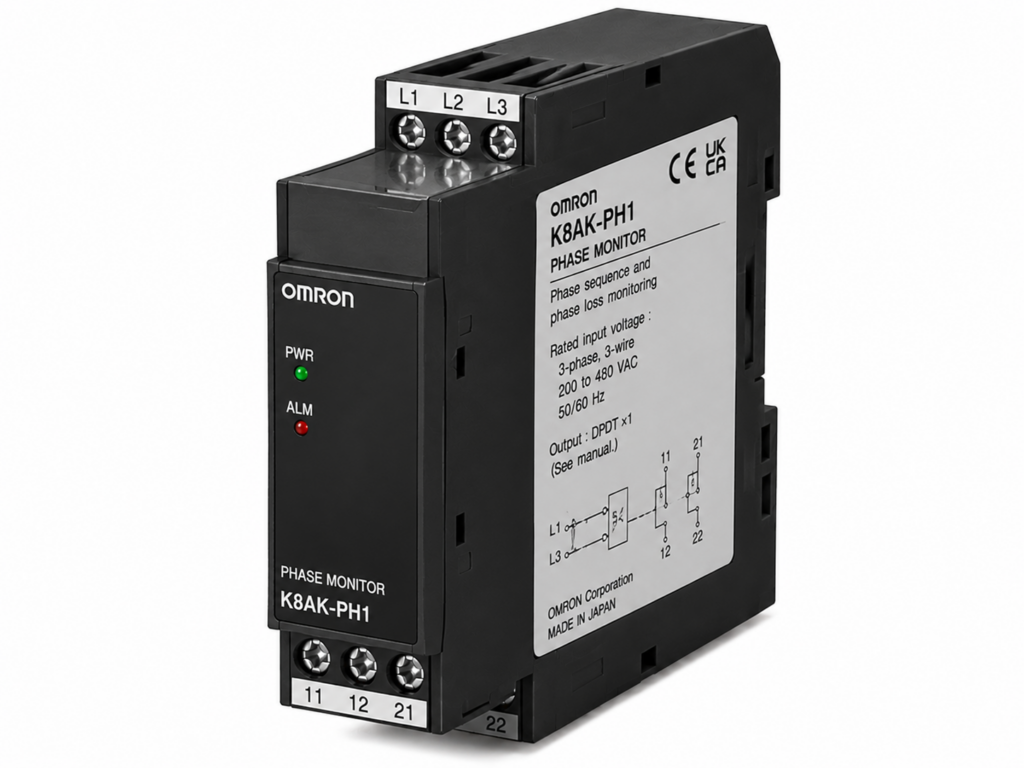

[OMRON] — K8AK-PH Three-phase Phase-sequence Phase-loss Relay (200~480VAC, DPDT)
Family ID: OMRON-K8AK-PH
OMRON K8AK-PH Series three-phase phase-sequence and phase-loss relay. Voltage detection method. 22.5mm width. 3-phase 3-wire 200~480 VAC. DPDT × 1 relay output.
1 product code available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| K8AK-PH1 | K8AK-PH Phase-sequence/Phase-loss 200~480VAC DPDT | OMRON | Type: Three-phase Phase-sequence Phase-loss Relay | Detection Method: Voltage detection | Function: Phase sequence and phase loss monitoring | Rated Input Voltage: 3-phase 3-wire 200~480 VAC | Power Supply: Same as rated input voltage | Output: DPDT × 1 | Width: 22.5 mm |
