Power Supplies
Omron

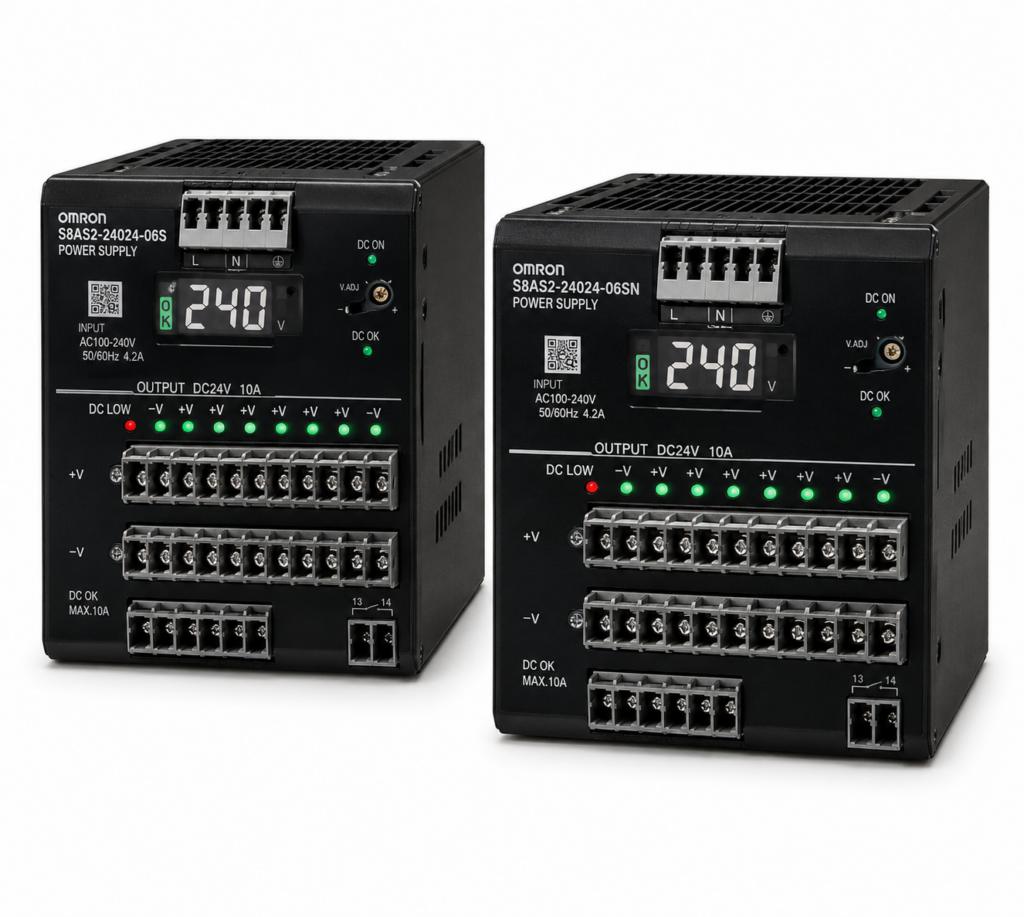

[OMRON] — S8AS2 Smart Power Supply (240W/480W, 24VDC, 6/8 Branch Outputs, 100~240VAC)
Family ID: OMRON-S8AS2
Inheriting tripping performance with the renewal, while renewing Efficiency, size, and design. 240W (6 outputs, 10A total) and 480W (8 outputs, 20A total) variants. 24VDC output, 3.8A per branch. Changeable and Non-changeable parameter settings. Input: 100~240VAC.
4 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| S8AS2-24024-06S | 240W, 100~240VAC, 24VDC, 6 outputs 10A total, 3.8A/branch, Changeable settings | OMRON | Type: Smart Power Supply | Capacity: 240W | Input: 100~240VAC | Output: 24VDC | Total Output Current: 10A | Output Branches: 6 | Max per Branch: 3.8A | Parameter Settings: Changeable | ||
| S8AS2-24024-06SN | 240W, 100~240VAC, 24VDC, 6 outputs 10A total, 3.8A/branch, Non-changeable settings | OMRON | Type: Smart Power Supply | Capacity: 240W | Input: 100~240VAC | Output: 24VDC | Total Output Current: 10A | Output Branches: 6 | Max per Branch: 3.8A | Parameter Settings: Not Changeable | ||
| S8AS2-48024-08S | 480W, 100~240VAC, 24VDC, 8 outputs 20A total, 3.8A/branch, Changeable settings | OMRON | Type: Smart Power Supply | Capacity: 480W | Input: 100~240VAC | Output: 24VDC | Total Output Current: 20A | Output Branches: 8 | Max per Branch: 3.8A | Parameter Settings: Changeable | ||
| S8AS2-48024-08SN | 480W, 100~240VAC, 24VDC, 8 outputs 20A total, 3.8A/branch, Non-changeable settings | OMRON | Type: Smart Power Supply | Capacity: 480W | Input: 100~240VAC | Output: 24VDC | Total Output Current: 20A | Output Branches: 8 | Max per Branch: 3.8A | Parameter Settings: Not Changeable |
