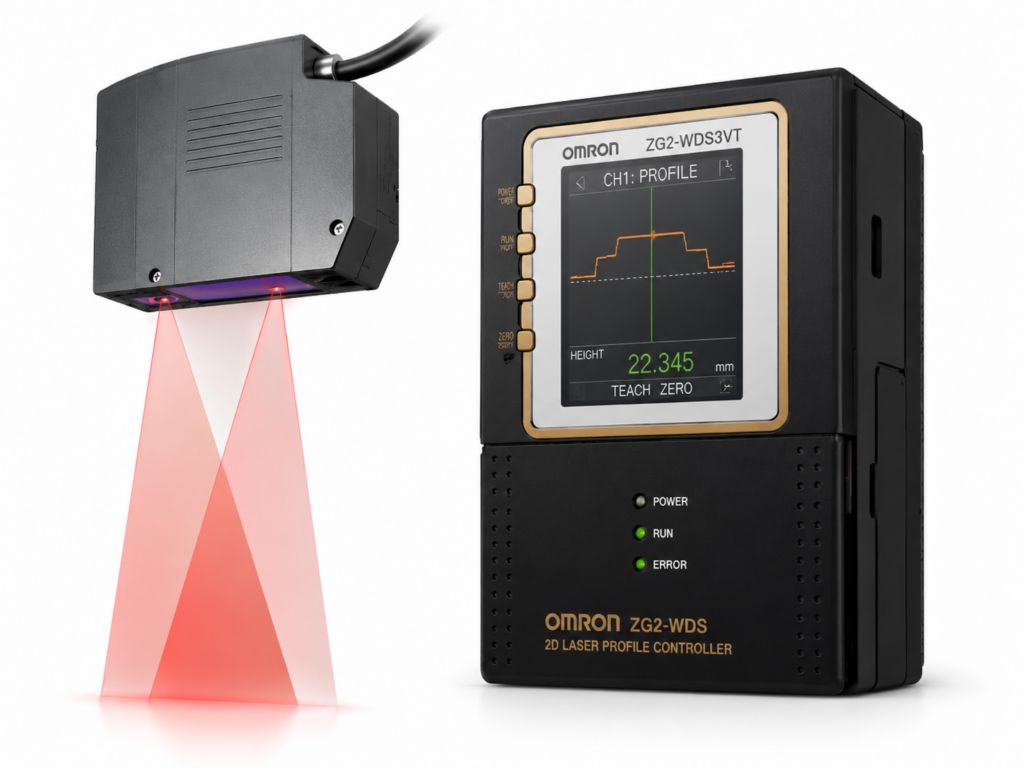

[OMRON] — ZG2 2D Laser Profile Measurement Sensor Head (3mm/8mm/22mm/70mm Width)
Family ID: OMRON-ZG2-HEAD
OMRON ZG2 Series 2D laser profile measurement sensor heads. 631-pixel resolution. ZG2-WDS3VT: Regular reflective, 3mm width, 0.25μm height res. ZG2-WDS8T: Diffuse reflective, 8mm width, 1μm height res. ZG2-WDS22: 22mm width, 2.5μm height res. ZG2-WDS70: 70mm width, 6μm height res. Cable 2m and 0.5m. Requires ZG2-WDC controller.
8 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| ZG2-WDS3VT 2M | ZG2 2D sensor head Regular reflective 22.3±0.5 mm H / 3 mm W 2m | OMRON | Sensing Method: 2D Laser Profile Measurement | Optical System: Regular reflective | Measurement Range: 22.3±0.5 mm H / 3 mm W | Resolution: 0.25 μm H / 5 μm W (3mm/631px) | Beam Shape: Line beam | Required Controller: ZG2-WDC11A/41A or ZG2-WDC11/41 controller required | Cable Length: 2 m | ||
| ZG2-WDS3VT 0.5M | ZG2 2D sensor head Regular reflective 22.3±0.5 mm H / 3 mm W 0.5m | OMRON | Sensing Method: 2D Laser Profile Measurement | Optical System: Regular reflective | Measurement Range: 22.3±0.5 mm H / 3 mm W | Resolution: 0.25 μm H / 5 μm W (3mm/631px) | Beam Shape: Line beam | Required Controller: ZG2-WDC11A/41A or ZG2-WDC11/41 controller required | Cable Length: 0.5 m | ||
| ZG2-WDS8T 2M | ZG2 2D sensor head Diffuse reflective 10.6±0.4 mm H / 8 mm W 2m | OMRON | Sensing Method: 2D Laser Profile Measurement | Optical System: Diffuse reflective | Measurement Range: 10.6±0.4 mm H / 8 mm W | Resolution: 1 μm H / 13 μm W (8mm/631px) | Beam Shape: Line beam | Required Controller: ZG2-WDC11A/41A or ZG2-WDC11/41 controller required | Cable Length: 2 m | ||
| ZG2-WDS8T 0.5M | ZG2 2D sensor head Diffuse reflective 10.6±0.4 mm H / 8 mm W 0.5m | OMRON | Sensing Method: 2D Laser Profile Measurement | Optical System: Diffuse reflective | Measurement Range: 10.6±0.4 mm H / 8 mm W | Resolution: 1 μm H / 13 μm W (8mm/631px) | Beam Shape: Line beam | Required Controller: ZG2-WDC11A/41A or ZG2-WDC11/41 controller required | Cable Length: 0.5 m | ||
| ZG2-WDS22 2M | ZG2 2D sensor head Diffuse reflective 50±3 mm H / 22 mm W 2m | OMRON | Sensing Method: 2D Laser Profile Measurement | Optical System: Diffuse reflective | Measurement Range: 50±3 mm H / 22 mm W | Resolution: 2.5 μm H / 35 μm W (22mm/631px) | Beam Shape: Line beam | Required Controller: ZG2-WDC11A/41A or ZG2-WDC11/41 controller required | Cable Length: 2 m | ||
| ZG2-WDS22 0.5M | ZG2 2D sensor head Diffuse reflective 50±3 mm H / 22 mm W 0.5m | OMRON | Sensing Method: 2D Laser Profile Measurement | Optical System: Diffuse reflective | Measurement Range: 50±3 mm H / 22 mm W | Resolution: 2.5 μm H / 35 μm W (22mm/631px) | Beam Shape: Line beam | Required Controller: ZG2-WDC11A/41A or ZG2-WDC11/41 controller required | Cable Length: 0.5 m | ||
| ZG2-WDS70 2M | ZG2 2D sensor head Diffuse reflective 100±12 mm H / 70 mm W 2m | OMRON | Sensing Method: 2D Laser Profile Measurement | Optical System: Diffuse reflective | Measurement Range: 100±12 mm H / 70 mm W | Resolution: 6 μm H / 111 μm W (70mm/631px) | Beam Shape: Line beam | Required Controller: ZG2-WDC11A/41A or ZG2-WDC11/41 controller required | Cable Length: 2 m | ||
| ZG2-WDS70 0.5M | ZG2 2D sensor head Diffuse reflective 100±12 mm H / 70 mm W 0.5m | OMRON | Sensing Method: 2D Laser Profile Measurement | Optical System: Diffuse reflective | Measurement Range: 100±12 mm H / 70 mm W | Resolution: 6 μm H / 111 μm W (70mm/631px) | Beam Shape: Line beam | Required Controller: ZG2-WDC11A/41A or ZG2-WDC11/41 controller required | Cable Length: 0.5 m |
