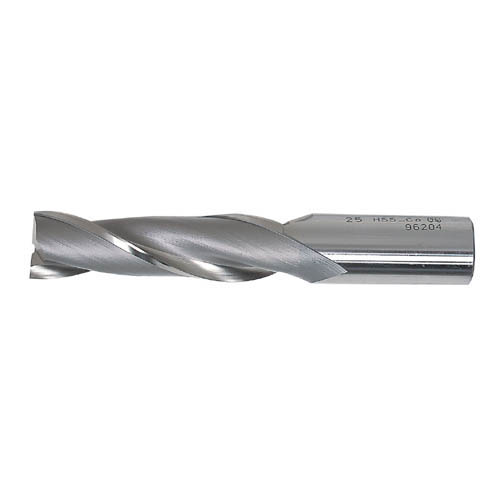

[OSG] — 80108K Long End Mill
End Mills OSG

[OSG] — 80108K Long End Mill

Family ID: 311-4377

OSG Long End Mill delivers extended-reach milling performance for precision material removal, sourced direct from Korea. Long-series end mills like this are commonly used in deep-pocket milling, cavity work, and contouring applications where standard-length tools cannot access the full depth of a workpiece. Request a quote today for export-ready supply of OSG cutting tools at competitive pricing through a KITA-registered Korean exporter.

25 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
311-4377 80108K OSG 2F-4MM(EDL)(80108K) | Spec: 4 | Flute Length: 20 | Overall Length: 60 | Product Name: Standard 2F | Shank Diameter: 8
311-4395 80110K OSG 2F-5MM(EDL)(80110K) | Spec: 5 | Flute Length: 25 | Overall Length: 60 | Product Name: Standard 2F | Shank Diameter: 8
311-4401 80112K OSG 2F-6MM(EDL)(80112K) | Spec: 6 | Flute Length: 25 | Overall Length: 60 | Product Name: Standard 2F | Shank d: 8
311-4410 80114K OSG 2F-7MM(EDL)(80114K) | Spec: 7 | Flute Length: 35 | Overall Length: 75 | Product Name: Standard 2F | Shank Dia: 10
311-4429 80116K OSG 2F-8MM(EDL)(80116K) | Spec: 8 | Flute Length: 35 | Overall Length: 75 | Product Name: Standard 2-Flute | Shank Diameter: 10
311-4438 80118K OSG 2F-9MM(EDL)(80118K) | Spec: 9 | Flute Length: 45 | Overall Length: 90 | Product Name: General 2F | Shank Diameter: 10
311-4447 80120K OSG 2F-10MM(EDL)(80120K) | Spec: 10 | Flute Length: 45 | Overall Length: 90 | Product Name: Standard 2F | Shank Diameter: 10
311-4456 80121K OSG 2F-11MM(EDL)(80121K) | Spec: 11 | Flute Length: 55 | Overall Length: 105 | Product Name: Standard 2F | Shank Diameter: 12
311-4465 80122K OSG 2F-12MM(EDL)(80122K) | Spec: 12 | Flute Length: 55 | Overall Length: 105 | Product Name: Standard 2F | Shank Diameter: 12
311-4483 80124K OSG 2F-14MM(EDL)(80124K) | Spec: 14 | Flute Length: 55 | Overall Length: 110 | Product Name: Standard 2F | Shank d: 16
311-4492 80125K OSG 2F-15MM(EDL)(80125K) | Spec: 15 | Flute Length: 65 | Overall Length: 120 | Product Name: Standard 2F | Shank Diameter: 16
311-4508 80126K OSG 2F-16MM(EDL)(80126K) | Spec: 16 | Flute Length: 65 | Overall Length: 120 | Product Name: Standard 2F | Shank d: 16
311-4517 80127K OSG 2F-17MM(EDL)(80127K) | Spec: 17 | Flute Length: 65 | Overall Length: 120 | Product Name: General 2F | Shank Diameter: 16
311-4526 80128K OSG 2F-18MM(EDL)(80128K) | Spec: 18 | Flute Length: 65 | Overall Length: 120 | Product Name: Standard 2F | Shank Diameter: 16
311-4544 80130K OSG 2F-20MM(EDL)(80130K) | Spec: 20 | Flute Length: 75 | Overall Length: 140 | Product Name: Standard 2F | Shank Diameter: 20
311-4553 80131K OSG 2F-21MM(EDL)(80131K) | Spec: 21 | Flute Length: 75 | Overall Length: 140 | Product Name: Standard 2F | Shank Diameter: 20
311-4562 80132K OSG 2F-22MM(EDL)(80132K) | Spec: 22 | Flute Length: 75 | Overall Length: 140 | Description: General 2F | Shank d: 20
311-4599 80135K OSG 2F-25MM(EDL)(80135K) | Spec: 25 | Flute Length: 90 | Overall Length: 160 | Product Name: General 2F | Shank Diameter: 25
311-4605 80136K OSG 2F-26MM(EDL)(80136K) | Spec: 26 | Flute Length: 90 | Overall Length: 160 | Product Name: General 2F | Shank Diameter: 25
311-4623 80138K OSG 2F-28MM(EDL)(80138K) | Spec: 28 | Flute Length: 90 | Overall Length: 160 | Product Name: Standard 2F | Shank Diameter: 25
311-4641 80140K OSG 2F-30MM(EDL)(80140K) | Spec: 30 | Flute Length: 90 | Overall Length: 160 | Description: General Purpose 2F | Shank d: 25
311-4702 80146K OSG 2F-36MM(EDL)(80146K) | Spec: 36 | Flute Length: 105 | Overall Length: 190 | Product Name: Standard 2F | Shank Diameter: 32
311-4711 80147K OSG 2F-37MM(EDL)(80147K) | Spec: 37 | Flute Length: 105 | Overall Length: 190 | Product Name: Standard 2F | Shank Diameter: 32
311-4720 80148K OSG 2F-38MM(EDL)(80148K) | Spec: 38 | Flute Length: 105 | Overall Length: 190 | Product Name: General 2F | Shank d: 32
311-4748 80150K OSG 2F-40MM(EDL)(80150K) | Spec: 40 | Flute Length: 110 | Overall Length: 195 | Description: General 2F | Shank Diameter: 32
