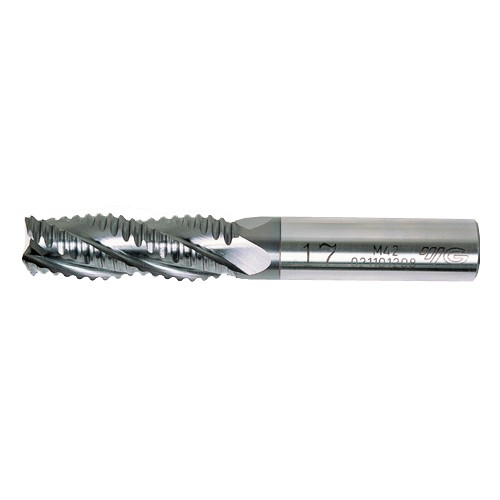

[YG-1] — EQ758060K End Mill HSS Lapping End Mill (Coated)
End Mills YG-1

[YG-1] — EQ758060K End Mill HSS Lapping End Mill (Coated)

Family ID: 301-8921

HSS Lapping End Mill (Coated) from YG-1, sourced from Korea.

34 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
301-8921 EQ758060K YG-1 6*8*15*60MM TIALN (EQ758060K) | Spec: 6 | Flute Length: 15(15) | Overall Length: 60(60) | Product Name: TiAIN Coated | Shank Diameter: 8(6)
301-8930 EQ758070K YG-1 7*10*20*65MM TIALN (EQ758070K) | Spec: 7 | Flute Length: 20 | Overall Length: 65 | Description: TiAIN Coating | Shank d: 10
301-8949 EQ758080K YG-1 8*10*20*65MM TIALN (EQ758080K) | Spec: 8 | Flute Length: 20(20) | Overall Length: 65(65) | Product Name: TiAIN Coating | Shank d: 10(8)
301-8958 EQ758090K YG-1 9*12*25*75MM TIALN (EQ758090K) | Spec: 9 | Flute Length: 25(25) | Overall Length: 75(75) | Product Name: TiAIN Coated | Shank Diameter: 12(10)
301-8967 EQ758100K YG-1 10*12*25*75MM TIALN (EQ758100K) | Spec: 10 | Flute Length: 25(25) | Overall Length: 75(75) | Product Name: TiAlN Coated | Shank Diameter: 12(10)
301-8976 EQ758110K YG-1 11*12*30*80MM TiAlN (EQ758110K) | Spec: 11 | Flute Length: 30 | Overall Length: 80 | Product Name: TiAlN Coated | Shank Diameter: 12
301-8985 EQ758120K YG-1 12*12*30*80MM TIALN (EQ758120K) | Spec: 12 | Flute Length: 30 | Overall Length: 80 | Product Name: TiAIN Coating | Shank Diameter: 12
301-8994 EQ758130K YG-1 13*16*35*90MM TIALN (EQ758130K) | Spec: 13 | Flute Length: 35 | Overall Length: 90 | Product Name: TiAlN Coating | Shank d: 16
301-9009 EQ758140K YG-1 14*16*35*90MM TIALN (EQ758140K) | Spec: 14 | Flute Length: 35 | Overall Length: 90 | Product Name: TiAlN Coated | Shank Diameter: 16
301-9018 EQ758150K YG-1 15*16*40*95MM TIALN (EQ758150K) | Spec: 15 | Flute Length: 40(40) | Overall Length: 95(95) | Product Name: TiALN Coated | Shank d: 16(12)
301-9027 EQ758160K YG-1 16*16*40*95MM TIALN (EQ758160K) | Spec: 16 | Flute Length: 40 | Overall Length: 95 | Product Name: TiAIN Coating | Shank Diameter: 16
301-9036 EQ758170K YG-1 17*16*40*95MM TIALN (EQ758170K) | Spec: 17 | Flute Length: 40 | Overall Length: 95 | Product Name: TiAlN Coating | Shank Diameter: 16
301-9045 EQ758180K YG-1 18*20*40*105MM TIALN (EQ758180K) | Spec: 18 | Flute Length: 40 | Overall Length: 105 | Product Name: TiAlN Coating | Shank Diameter: 20
301-9054 EQ758190K YG-1 19*20*45*110MM TiAIN (EQ758190K) | Spec: 19 | Flute Length: 45 | Overall Length: 110 | Product Name: TiAIN Coated | Shank Diameter: 20
301-9063 EQ758200K YG-1 20*20*45*110MM TIALN (EQ758200K) | Spec: 20 | Flute Length: 45 | Overall Length: 110 | Product Name: TiAlN Coating | Shank Diameter: 20
301-9072 EQ758210K YG-1 21*20*45*110MM TIALN (EQ758210K) | Spec: 21 | Flute Length: 45 | Overall Length: 110 | Product Name: TiAlN Coating | Shank d: 20
301-9081 EQ758220K YG-1 22*20*45*110MM TIALN (EQ758220K) | Spec: 22 | Flute Length: 45 | Overall Length: 110 | Product Name: TiAIN Coated | Shank Diameter: 20
301-9090 EQ758230K YG-1 23*20*45*110MM TIALN (EQ758230K) | Spec: 23 | Flute Length: 45 | Overall Length: 110 | Product Name: TiAIN Coated | Shank Diameter: 20
301-9106 EQ758240K YG-1 24*25*50*120MM TIALN (EQ758240K) | Spec: 24 | Flute Length: 50 | Overall Length: 120 | Description: TiALN Coated | Shank Diameter: 25
301-9115 EQ758250K YG-1 25*25*50*120MM TIALN (EQ758250K) | Spec: 25 | Flute Length: 50 | Overall Length: 120 | Product Name: TiAIN Coating | Shank D: 25
301-9124 EQ758260K YG-1 26*25*50*120MM TIALN (EQ758260K) | Spec: 26 | Flute Length: 50 | Overall Length: 120 | Description: TiAIN Coating | Shank d: 25
301-9133 EQ758270K YG-1 27*25*55*125MM TIALN (EQ758270K) | Spec: 27 | Flute Length: 55 | Overall Length: 125 | Product Name: TiAIN Coating | Shank Diameter: 25
301-9142 EQ758280K YG-1 28*25*55*125MM TIALN (EQ758280K) | Spec: 28 | Flute Length: 55 | Overall Length: 125 | Product Name: TiALN Coated | Shank Diameter: 25
301-9151 EQ758300K YG-1 30*25*55*125MM TIALN (EQ758300K) | Spec: 30 | Flute Length: 55 | Overall Length: 125 | Product Name: TiAIN Coated | Shank d: 25
301-9160 EQ758310K YG-1 31*32*60*145MM TIALN (EQ758310K) | Spec: 31 | Flute Length: 60 | Overall Length: 145 | Product Name: TiAlN Coated | Shank Diameter: 32
301-9179 EQ758320K YG-1 32*32*60*145MM TIALN (EQ758320K) | Spec: 32 | Flute Length: 60 | Overall Length: 145 | Product Name: TiAlN Coated | Shank Diameter: 32
301-9188 EQ758330K YG-1 33*32*60*145MM TIALN (EQ758330K) | Spec: 33 | Flute Length: 60 | Overall Length: 145 | Product Name: TiAlN Coated | Shank Diameter: 32
301-9197 EQ758340K YG-1 34*32*60*145MM TIALN (EQ758340K) | Spec: 34 | Flute Length: 60 | Overall Length: 145 | Product Name: TiAlN Coated | Shank Diameter: 32
301-9203 EQ758350K YG-1 35*32*60*145MM TIALN (EQ758350K) | Spec: 35 | Flute Length: 60 | Overall Length: 145 | Product Name: TiALN Coating | Shank Diameter: 32
301-9212 EQ758360K YG-1 36*32*60*145MM TIALN (EQ758360K) | Spec: 36 | Flute Length: 60 | Overall Length: 145 | Description: TiAlN Coating | Shank d: 32
301-9221 EQ758380K YG-1 38*32*65*150MM TIALN (EQ758380K) | Spec: 38 | Flute Length: 65 | Overall Length: 150 | Product Name: TiAIN Coating | Shank Diameter: 32
301-9249 EQ758400K YG-1 40*32*65*150MM TIALN (EQ758400K) | Spec: 40 | Flute Length: 65 | Overall Length: 150 | Product Name: TiALN Coated | Shank d: 32
301-9276 EQ758450K YG-1 45*42*70*160MM TIALN (EQ758450K) | Spec: 45 | Flute Length: 70 | Overall Length: 160 | Product Name: TiAIN Coated | Shank Diameter: 42
301-9294 EQ758500K YG-1 50*42*70*160MM TIALN (EQ758500K) | Spec: 50 | Flute Length: 70 | Overall Length: 160 | Product Name: TiAIN Coating | Shank Diameter: 42
